Kaba RAC 4 - 2.0 Product Description; 2.1 Features

INSTALLATION GUIDE - REMOTE ACCESS CONTROLLER RAC 4 • PK3197_10_14
Page 3
Feature List:
Feature RAC 4
Relay Outputs Single
Variable access delay Standard
Hotel ID reinitialization feature Standard
Power failure 3-day auto-recovery; real time clock (RTC) Standard
Simple serial programming & auditing Standard
Relay bypassing (passage function) Standard
Single card reader control Standard
RS-232 Interface for programming Standard
Unlock delay programmable by Dip Switches Standard
Fire Alarm Input Standard
Remote Unlock input (No Audit in FDU) Standard
Request to Exit (REX) input Standard
2.0 Product Description
2.1 Features
The RAC 4 is designed to operate electrical
locking or control devices where a stand-alone
electronic lock is not practical. It provides
ingress & egress access control that can be
programmed with the full range of Solitaire 710
/ 710-II, Generation 760 / 770 / 790, or System
700 features.
The system can control any door or access
point up to 500 feet (150m) away when using
a swipe, insert or extended range contactless
reader, and up to 40 feet (12m) away when
using a contactless reader Model R-79-1N1.
The Swipe & Contactless Card Reader can be
mounted directly on doorframes as narrow as
2 inches (5.1 cm), while the insert reader can
only be installed in an elevator panel.
The RAC 4 is a simple access control solution
for a single card reader providing features as
per the feature list below. See figure 1 for a
typical configuration.
Power Adapter
Reader
One Relay Output
RAC 4 RAC 4XT
Power Adapter
Up to 2
Readers
Up to 8 Relay Outputs
Battery Back-up
* Contactless reader shown.
May be a swipe, insert,
or Contactless reader.

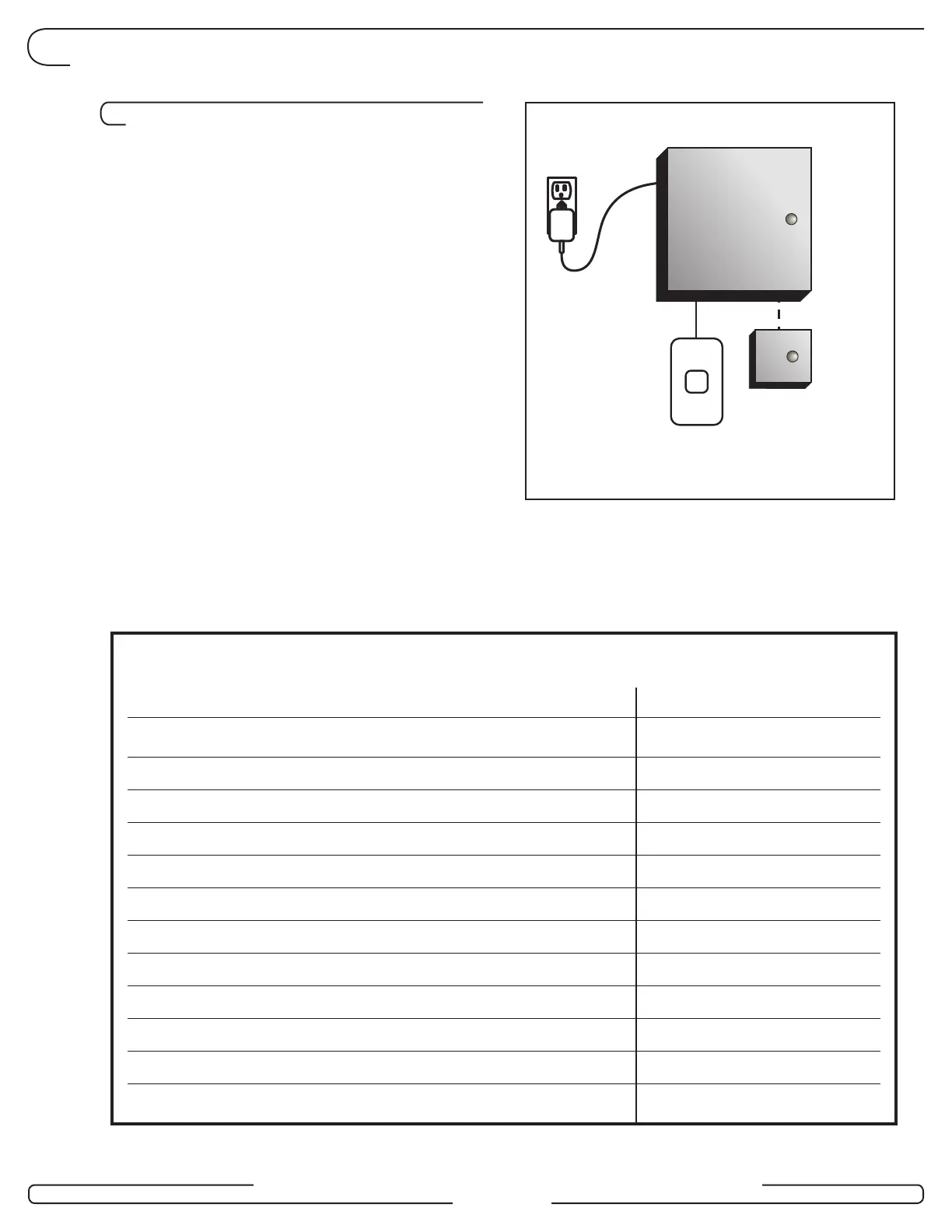

Figure 1
