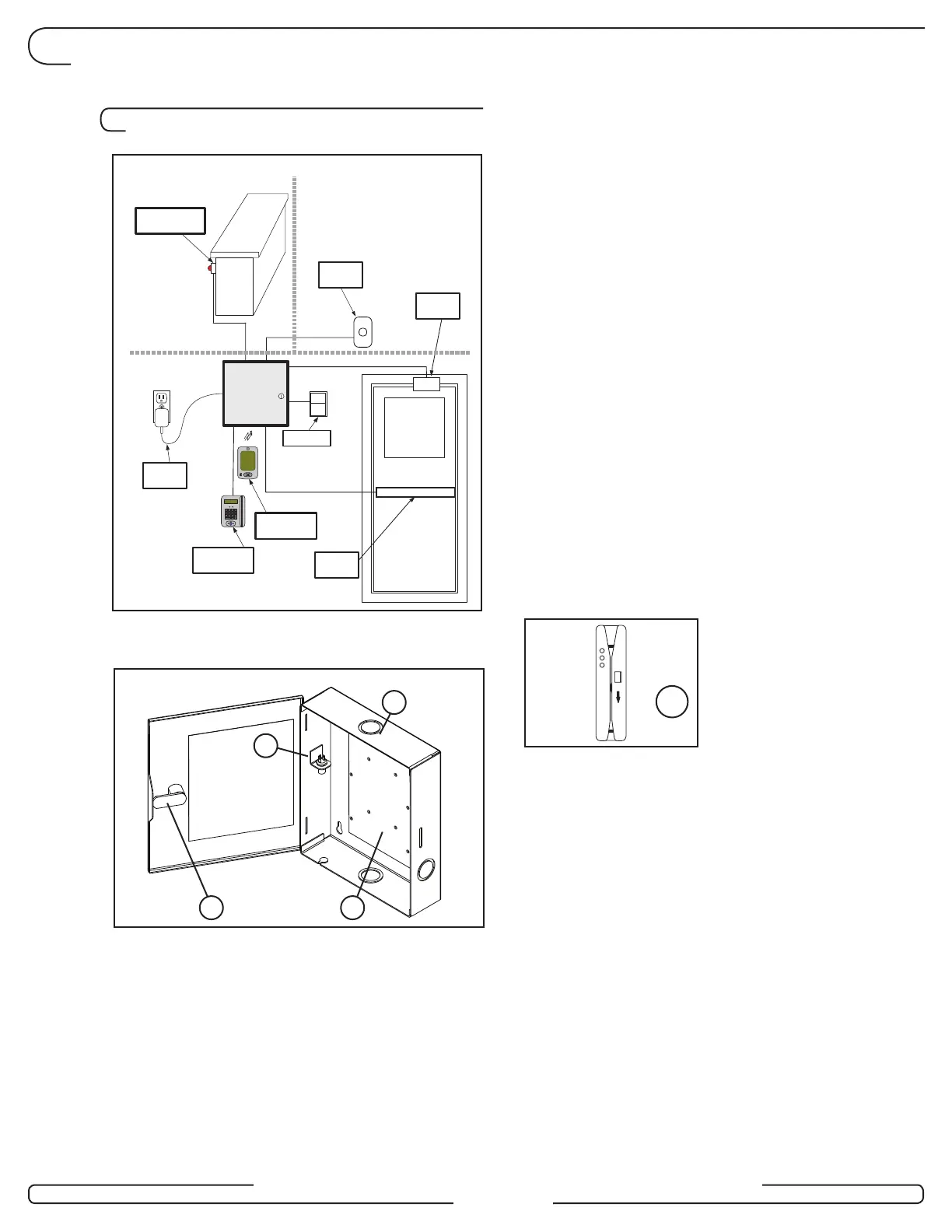

2.2 Components
2.2.1 Controller box
(A) RAC 4 Enclosure & Access Door:
holds the controller board (PCB) and
power adaptor jack. Knockouts are
available on 3 sides for routing of
peripheral cables.
(B) Controller Board (PCB): controls all
the features of the RAC 4 system.
(C) DC Power Jack: used for connection
to 12 VDC power adaptor to provide
power to the controller PCB.
(D) Cam-lock with Key: to provide secure
locking and to control access to the
RAC 4 enclosure.
Not shown:
(E) Cables: cables required for
connection of the controller PCB to
the power adaptor jack.
2.2.2 Card readers
Card readers (F) are used with keycards to
grant access to the controlled areas such
as pool, gym, staff rooms, etc. Various card
reader types are available depending on
the location and type of locks used on the
property.
2.2.2.1 Magnetic stripe card readers
1- Swipe Card Reader: a small vertical swipe
unit that protrudes from the wall.
2.0 Product Description
Front Desk
Non-Secure Side
Secure Side
Remote Unlock
Fire Alarm
Ingress
Reader
RAC 4
PULL
FIRE
Request
to Exit
Power
Adaptor
Programming
(M-Unit)
Programming
(FDU)
Locking
Device
Figure 2
A
C
D
Figure 3
B
Figure 4
F
