RFID Installation Instructions Pg 6 of 8
Installing the lock trim (continued)

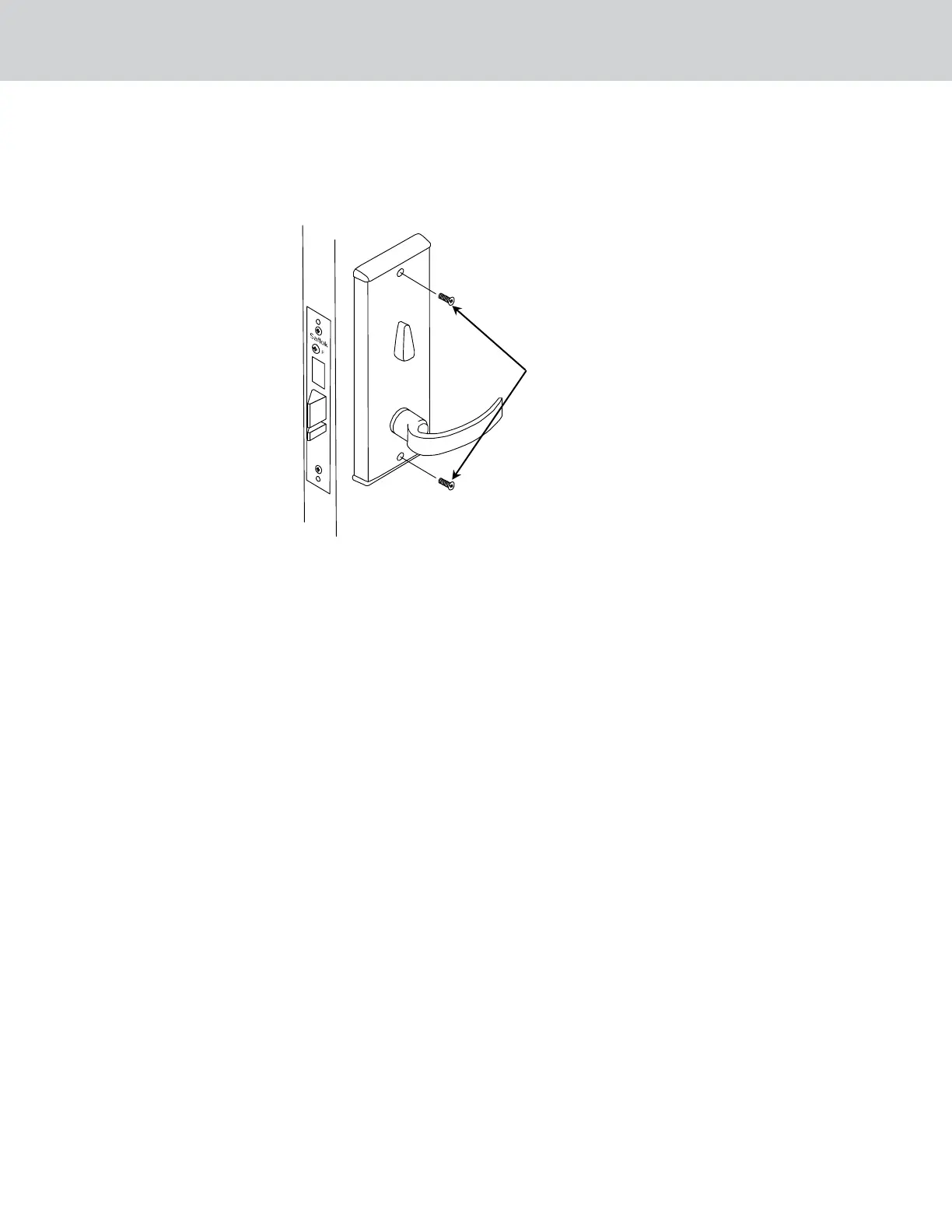

13. Secure the inside trim cover to the inside trim using two M4 x 16mm Torx screws (see Fig. 5).
14. Program the lock using the Lock Programmer and Interrogator (LPI) probe (p# 72400) with the Hand Held Terminal.
*The programming port is located in the bottom of the outside lock trim.
Test the functioning of the lock as discussed in the following section and in the programming manual before closing
the door. When the construction key is used, the green and red LEDs will blink together, indicating that the lock’s
time and date are not set.
15. For locks installed in exterior applications. After programming, inject dielectric grease into the programming
port to prevent moisture from damaging the electronics.
M4 x 16mm
Torx
Fig. 5
To Next Page
