Kaiweets HT106B - Dual Range Operation; Low-Sensitivity Mode; High-Sensitivity Mode

Operation
Turning on / off
Press and hold the power key for more than 2 seconds. A beep sounds.
and the display lights up.
Press the power button again and the tester will turn off. After 3 minutes of
non-use, the tester automatically powers off to conserve battery life. The
tester is now deactivated and is not operational.
Checking for the presence of AC voltage
Prior to each use, test on known
tester functionality!
Keep the testers tip near the AC voltage. When a voltage is detected, a
e circuit to verify
beep sounds and the tip lights up red.
As the intensity of the voltage signal changes, the bar graph on the screen
becomes higher or lower and the frequency of blinking and beeping
becomes faster or slower with the signal intensity.
R

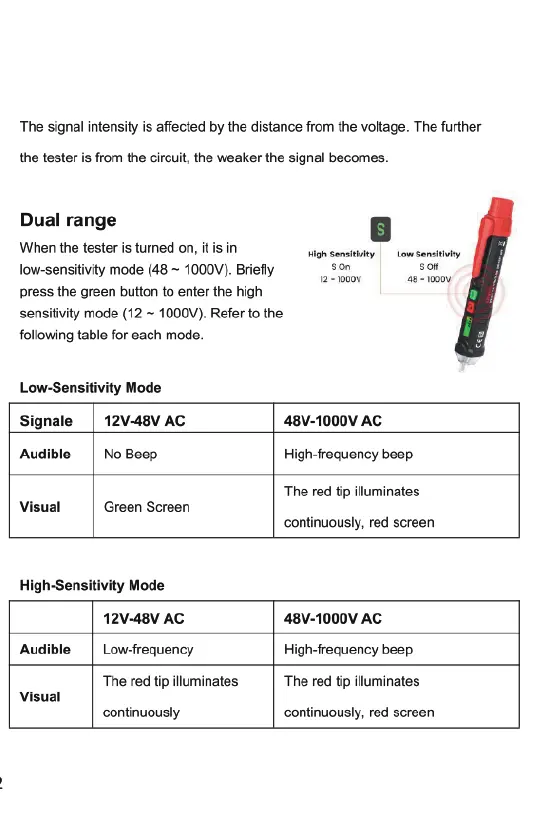

The signal intensity is affected by the distance from the voltage. The further
the tester is from the circuit, the weaker the signal becomes.
Dual range .
When the tester is turned on, itis in R
low-sensitivity mode (48 ~ 1000V). Briefly 2 ey
press the green button to enter the high
sensitivity mode (12 ~ 1000V). Refer to the
following table for each mode.
Low-Sensitivity Mode
Signale | 12v48V AC 48V-1000V AC
Audible | NoBeep High-frequency beep
The red tip illuminates
Visual Green Screen
continuously, red screen
High-Sensitivity Mode
12v-48V AC 48V-1000V AC
Audible | Low-frequency High-frequency beep
The red tip illuminates The red tip illuminates
Visual
continuously continuously, red screen
