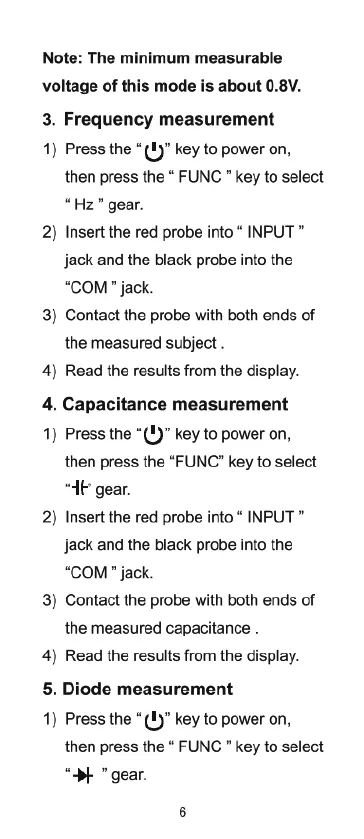

Note:
The
minimum
measurable
voltage
of
this
mode
is
about
0.8V.
3.
Frequency
measurement
1)
Press
the
(1)"
key
to
power
on,
then
press
the
“
FUNC
"
key
to
select
“Hz"
gear.
2)
Insert
the red
probe
into
“
INPUT
*
jack
and
the
black
probe
into
the
“COM
"
jack.
3)
Contact
the
probe
with
both
ends
of
the
measured
subject
.
4)
Read
the
results
from
the
display.
4.
Capacitance
measurement
1)
Press
the
“(1)”
key
to
power
on,
then
press
the
“FUNC”
key
to
select
“IF
gear.
2)
Insert
the red
probe
into
“
INPUT
*
jack
and
the
black
probe
into
the
“COM
"
jack.
3)
Contact
the
probe
with
both
ends
of
the
measured
capacitance
.
4)
Read
the
results
from
the
display.
5.
Diode
measurement
1)
Press
the
“(1)”
key
to
power
on,
then
press
the
“
FUNC
"
key
to
select
“Bf
"
gear.
