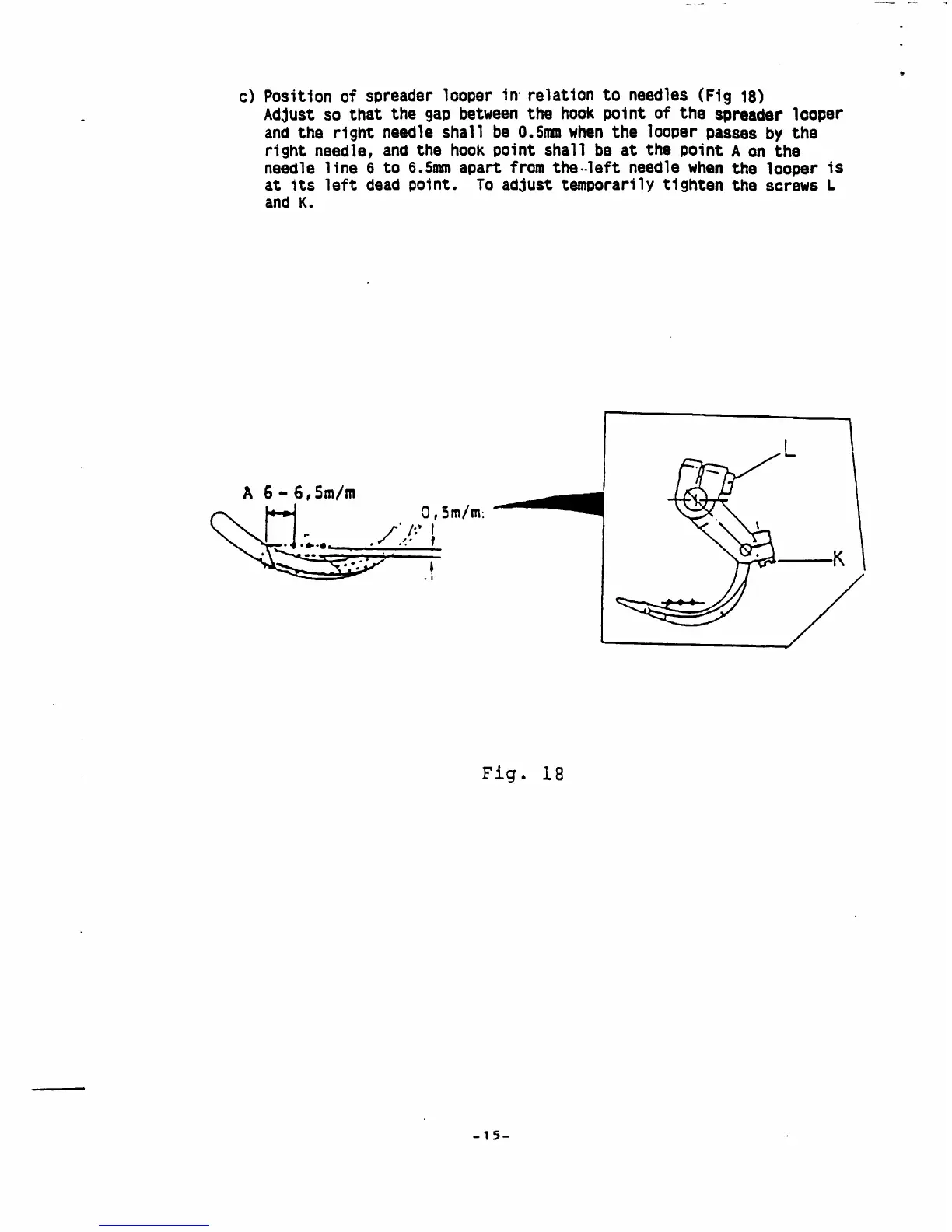

c) Position of spreader looper In relation to needles (F1g 18)
Adjust so that the gap between the hook point of the spreader looper
and the right needle shall be O.Smm when the looper passes by the
right needle, and the hook point shall be at the point A on the
needle line 6 to e.Smm apart from the-left needle when the looper Is
at Its left dead point. To adjust temporarily tighten the screws L
and K.
A 6 - 6,5m/m
0, 5tn/m;
/•;/• i
Fig. 18
- 1 5-
