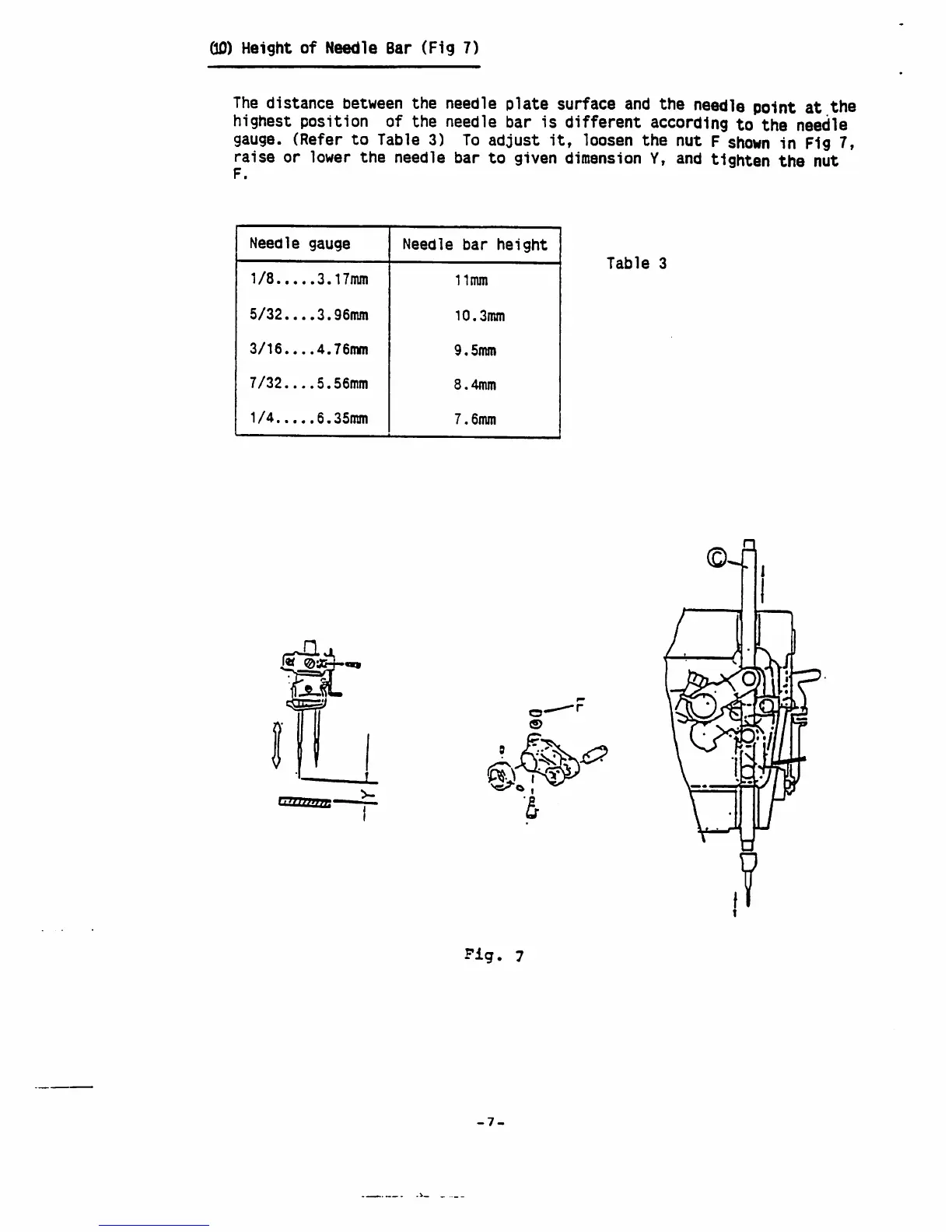

00)
Height
of
Needle
Bar
(Fig
7)
The
distance
between
the needle
plate
surface and the needle point
at
the
highest
position
of
the
needle
bar
is
different
according
to
the
needle
gauge. (Refer
to
Table 3)
To
adjust
it,
loosen the nut F
shown
in Fig 7,
raise
or
lower
the
needle
bar
to
given
dimension Y, and
tighten
the
nut
F.
Needle
gauge
Needle
bar
height
1/8
3.17mm
11mm
5/32...
.3.96inm
10.3mm
3/16....4.76mm
9.5mm
7/32....
5.56mm
8.4mm
1/4
6.35mm
7.6mm
7
-7-
Table
3
