Kärcher BD 50 - Environmental Protection; Equipment Description

19
Read the original manual
before using your device.
Proceed as instructed
in the manual and keep it for later
reference, or for third parties to
Table of Contents
Operation............................................ 19
Proper Use............................................19
Environmental Protection......................19
Control and Operating Elements...........19
Before Startup ......................................20
Operation.............................................. 20
Stopping and Shutting Down.................21
Transport.............................................. 21
Storage..................................................21
Care and Maintenance......................... 21
Frost Protection.................................... 22
Troubleshooting.....................................22
Acessories............................................ 23
Technical Data.......................................24
Safety Warning......................................25
Warranty............................................... 27
Danger Levels
DANGER
Imminent danger that could lead
to serious injury or death.
ATTENTION
Potentially dangerous situation that
could lead to serious injury or death.
CAUTION
Potentially dangerous situation
that may lead to minor injuries.
WARNING
Potentially dangerous situation
that may lead to material damage.
This machine is intended for oor cleaning
and can only be used on at surfaces.
– The device can be easily
adapted to the respective cleaning task
by adjusting the water and the amount of
cleaning agent.
The detergent dosage can be adjusted by
adding it to the tank.
– A 500-mm working width
allows e󰀨ective application over a long
usage period.
– The device is manually
advanced, supported by brush rotation.
The brush drive is powered by two
batteries.
– The batteries can be
selected according to the conguration
(see chapter “Recommended Batteries”).
– The device is equipped with
a clean water tank and a waste water
tank (50 liters each). In this way, e󰀨ective
cleaning is ensured, combined with
long range.
Warning:
Depending on the cleaning tasks, the
device can be equipped with di󰀨erent
accessories. Check our catalog or visit
our Website at:
www.karcher.com.br
Operation
Proper Use
Use this device only as directed in these
Operating Instructions.
–The device may only be used
for cleaning smooth oors that
are not sensitive to moisture and
polishing operations.
–The device is not suitable
for cleaning frozen grounds
(e.g., cold stores).
– The device may only be
equipped with original accessories and
spare parts.
-–The device is not suitable for use in
potentially explosive environments.
-–The device cannot be used to collect
ammable gases, undiluted acids, or
solvents.
Such products include gasoline, color
thinner, or heating oil, which can generate
explosive mixtures when mixed with
the aspirated air. Do not use acetone,
undiluted acids, and solvents, as they may
degrade the materials used in the device.
–The device is approved for use on
surfaces with the maximum gradients
found under “Technical Data.”
The packaging materials
are recyclable. Please
do not dispose of
the packaging in the
regular garbage; send
it to a recycling center
instead. Please dispose
of the replaced parts
in an environmentally-
friendly way.
Old devices contain
recyclable raw materials
which must be sent to
a recycling center. To
prevent environmental
pollution, batteries, oil,
and similar products
must not be left in them.
Please recycle replaced
parts via the appropriate
disposal systems.
Environmental Protection
Equipment Description
1. Turbine lter
2. Brush drive switch
3. Drain hose for waste water
4. Accessory holder
5. Float
6. Clean water tank
7. Clean water tank drain plug
8. Recessed grip
9. Cleaning head
10. Disc brush
11. Clean water tank ller hole
12. Brush replacement lever
13. Waste water tank
14. Clean water level display
15. Suction bar tilt adjustment handle
16. Suction bar height adjustment
17. Wing bolt for xing the suction bar
18. Suction bar
19. Suction hose
20. Water dispenser adjustment knob
21. Mains cable with mains plug
22. Vacuum bar lift lever
23. Control panel
24. Handle
25. Storage area for the “Homebase
Box” cleaning kit
26. Waste water tank cover
• The control elements for the cleaning
process are yellow.
Color Coding
• The control elements for the
maintenance and service are light
gray.

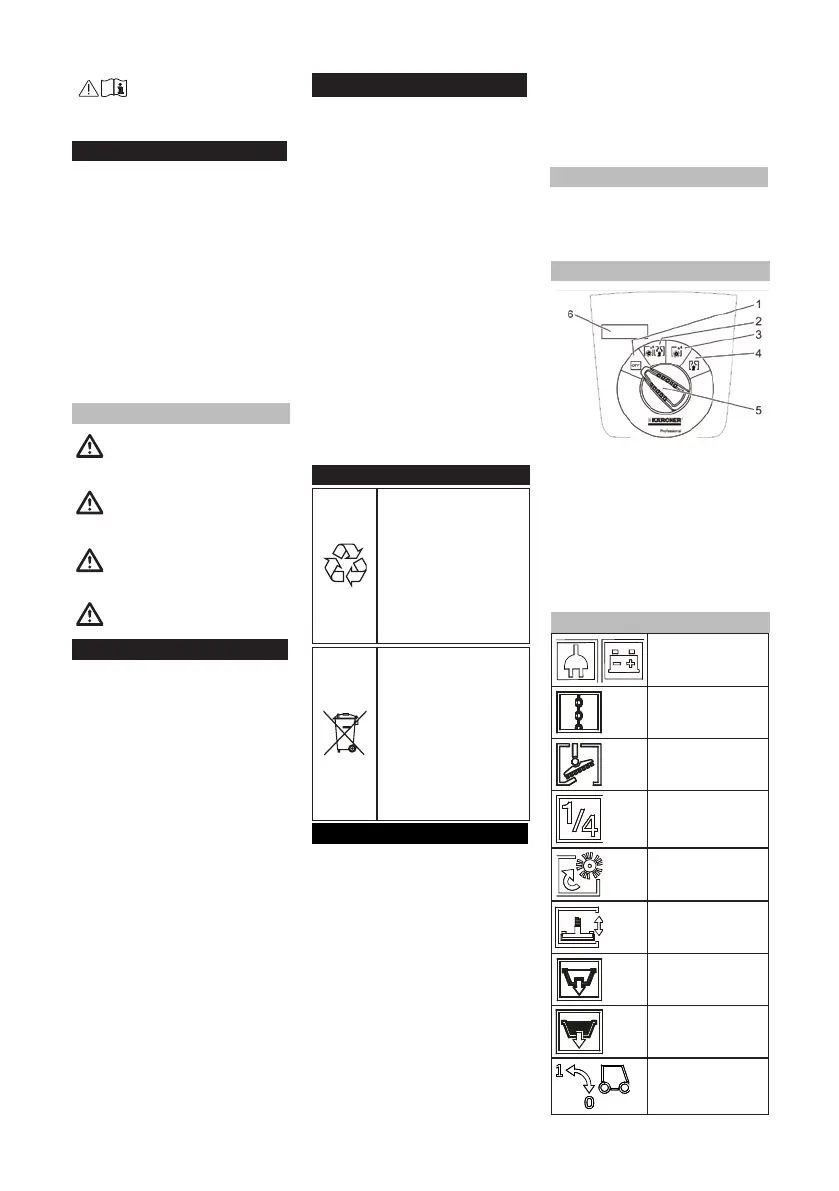

Control Panel
1 OFF
The device is switched o󰀨.
2 Normal mode
Clean the oor with water and vacuum
waste water.
3 Intense mode
Clean the oor with water and let the
detergent work.
4 Vacuum mode
Vacuum waste water.
5 Program selection switch
6 Display (hour meter + battery level).
Symbols on the Device
Battery socket
Lifting point
Clean water tank
lling level – 25%
Mop holder**
Brush
replacement lever
Suction bar lift lever
Clean water tank
drain plug
Waste water
drain hose
Transport Caster
1. Transport
0. Operation
