Kasda KW5262 - Hardware Description

VDSL Router User Manual
7
2 Hardware Description

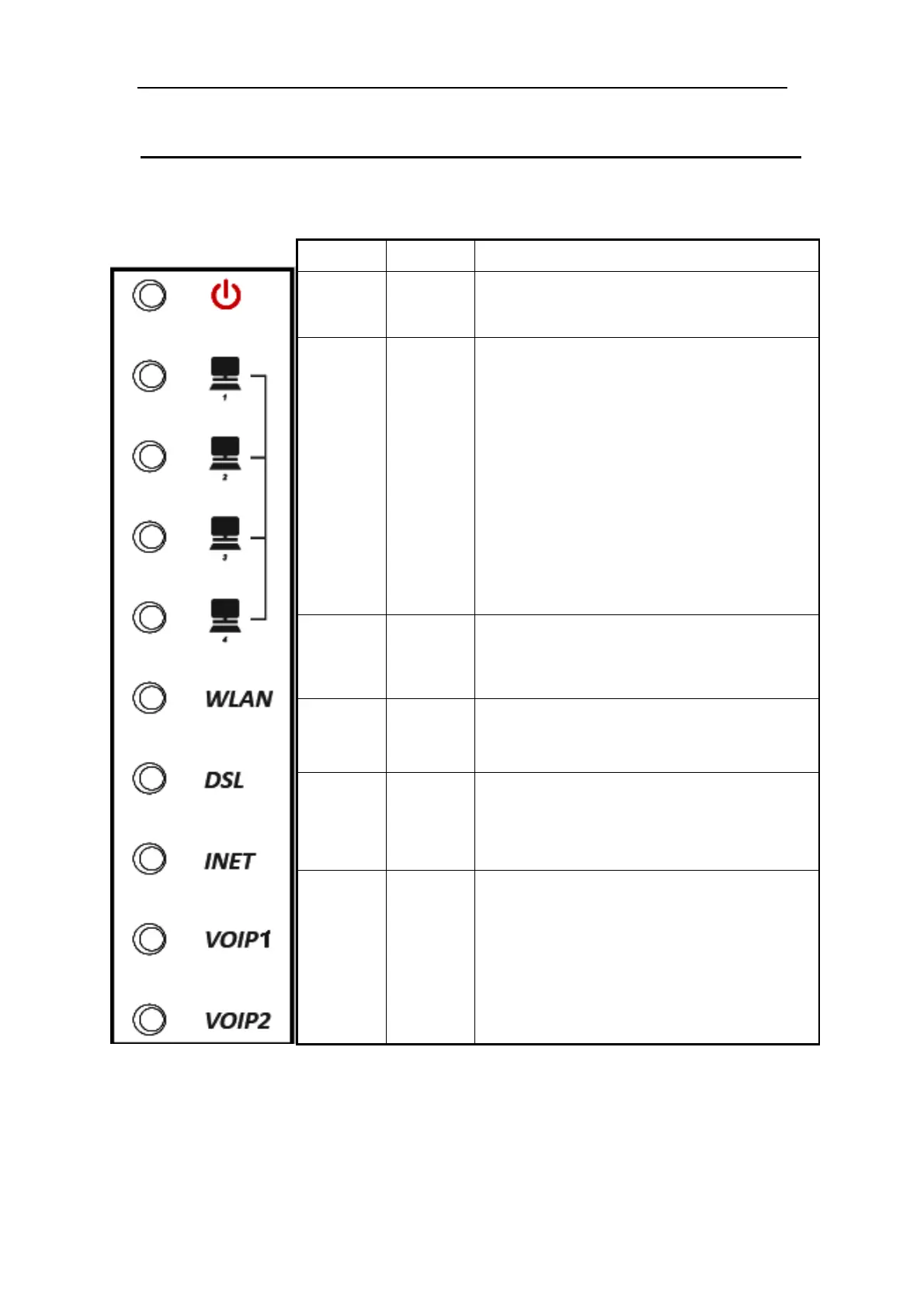

Front Panel
LED
Color
Function
PWR
Green
On: Power on
Off: No power
LAN1,2,3,4
Green
On: LAN link established and active via LAN port
Blinking: DSL data activity occurs
Off: No LAN link via LAN port
WLAN
Green
On: The wireless module is ready and idle
Blinking: Data transmitting or receiving over WLAN
Off: The wireless is not installed.
DSL
Green
On: DSL link established and active
Quick blinking: DSL is trying to establish a connection
Slow blinking: No DSL link
INET
Green
On: IP connected.
Blinking: IP connected and IP traffic is passing through
the device.
Off: DSL connnection not present.
VOIP1,2
Green
On:A telephone connected to the phone port has its
receiver off of the hook .
Off: The handset of telephone connected to the phone
port is on-hook.
