18
INSTALLATION AND CONNECTION

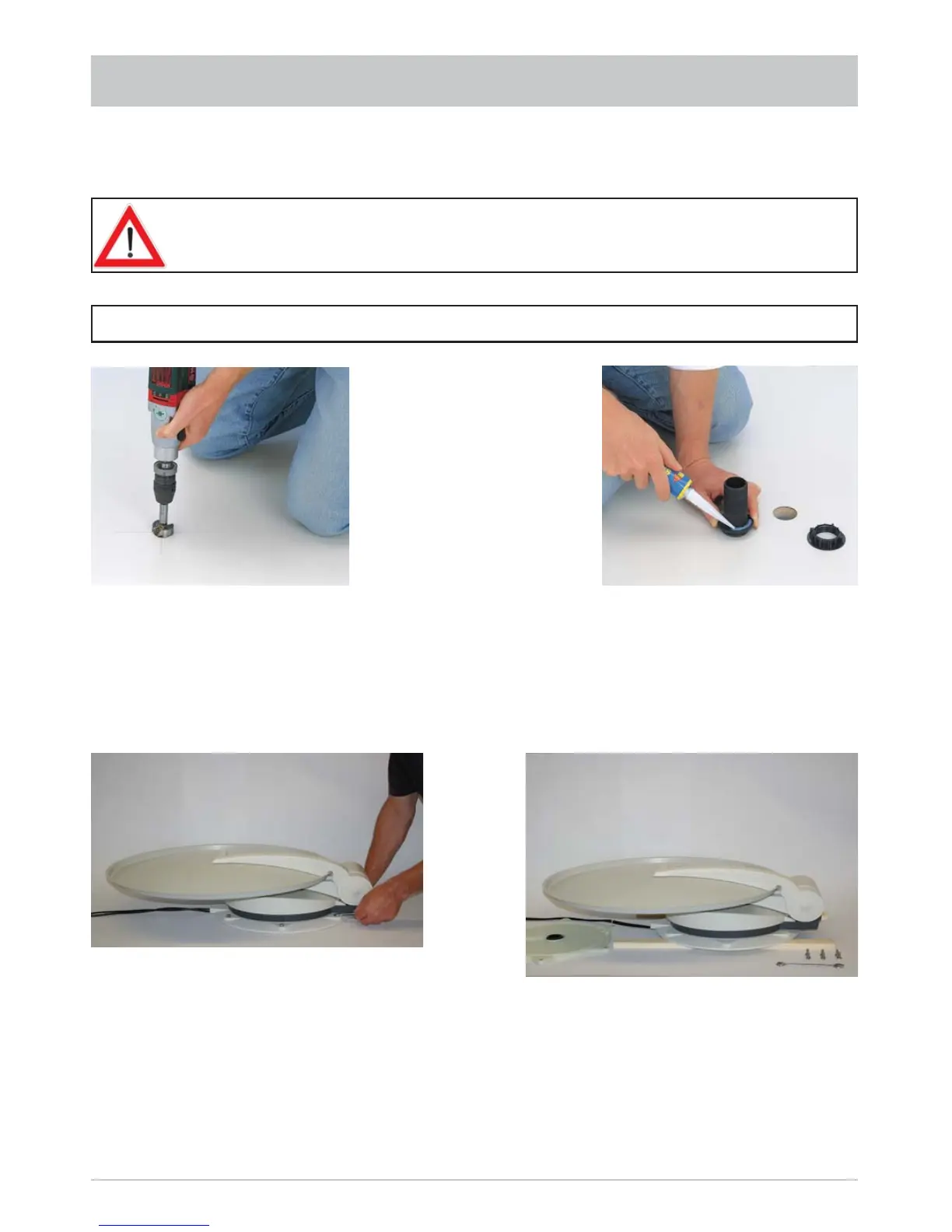

BRIEF INSTRUCTIONS FOR INSTALLING THE TURNTABLE
The other detailed instructions in this installation and operating manual must also be followed!
Determination of installation loca-
tion.
Important! System has a turning
range of 162 cm (Ø). Drill hole with
Ø 38 mm. Deburr sharp edges of
hole.
Apply Sikafl ex
®
291 adhesive to
the spigot of the roof gland. Insert
the spigot into the hole and secure
it from below with the knurled nut.
Unscrew screws (x 6, 10 AF) from
the mounting plate and remove
the mounting plate.
Place the turntable on prepared
wooden supports to protect the
roof of the vehicle.
The sequence of pictures shown illustrates all the necessary installation steps
that are required to install the turntable and the parabolic refl ector on the roof of
the vehicle.
