Important:
For operation with two batteries, it
must be ensured that the ignition
signal earth has the same potential
as the power supply battery earth
for the turntable.
Non-compliance means that the
automatic lowering function will not
work!
Ensure the cable polarity is correct!
Figure: G
INSTALLATION AND CONNECTION

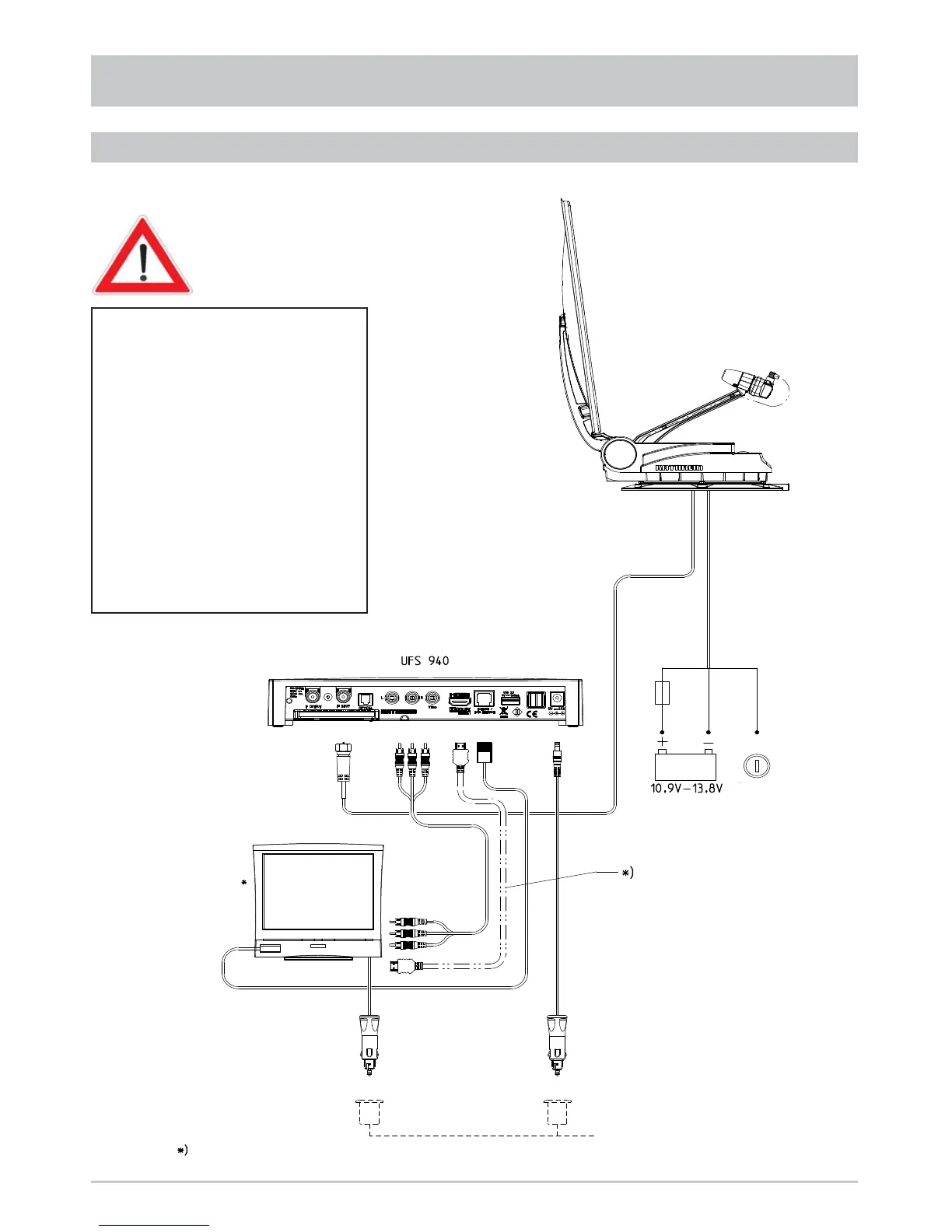

CONNECTION EXAMPLE FOR 12 V BATTERY CONNECTION
6-pin
brown
white green
Battery
Battery
Ignition
HDMI cable recommended for
HDMI-capable TV set
Master
TV set
external
IR sensor
Cigarette lighter
socket or 12V
DIN ISO 4165
standard socket
Not included
To Next Page
