Electric Dispenser Hoist EWL 2, 3, 4
A 5.6 Mounting the threading rail

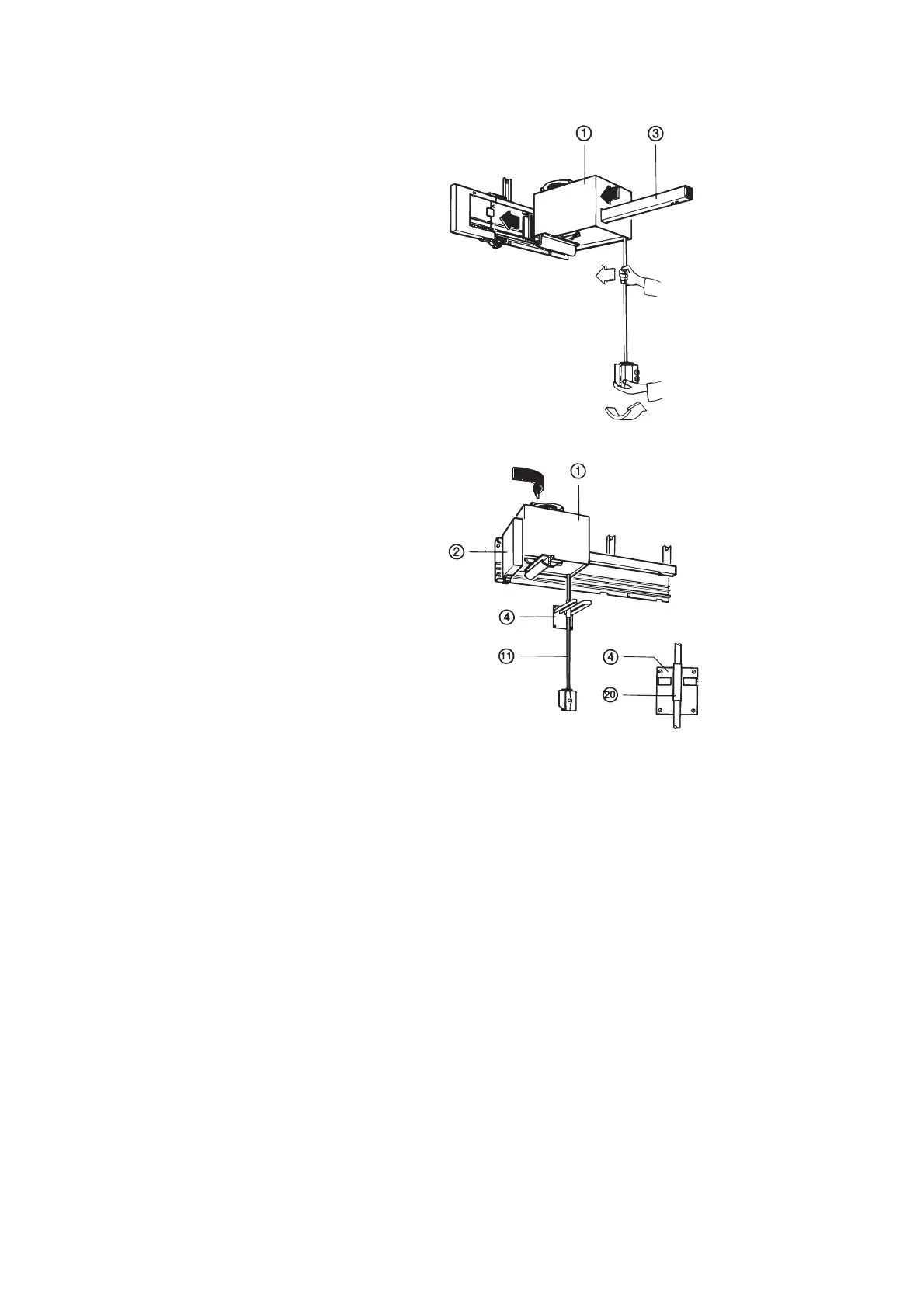

Move the carriage 1 in the direction of
the arrow up to the limit stop.
Lift the carriage 1 and load arm 3 in the
direction of the arrow using the
support tube and slide them in the direction
of the limit stop.
Swivel in the carriage 1 with swi-velling
part of the guide rail 2 in the direction of
the arrow up to the limit stop (parking
position).
Apply the threading rail 4 to the wall with
the plastic protection p central to the sup-
port rail q. Align horizontally / vertically
and mark holes.
Centre drill the marked holes ∅ 6 mm.
Insert dowel plugs and screw on the
threading rail 4.
