Electric Dispenser Hoist EWL 2, 3, 4
A 6 Preparations for commencing
operation
Insert the power plug 8 in the correctly
fused socket outlet provided.
Check the following functions:
The carriage 1 must move smoothly with-
out hindrance to the limit stop a of the
load arm 3.
The carriage 1, presently against the limit
stop on the load arm 3, must move with-
out hindrance up to the limit stop s of the
guide rail 2.

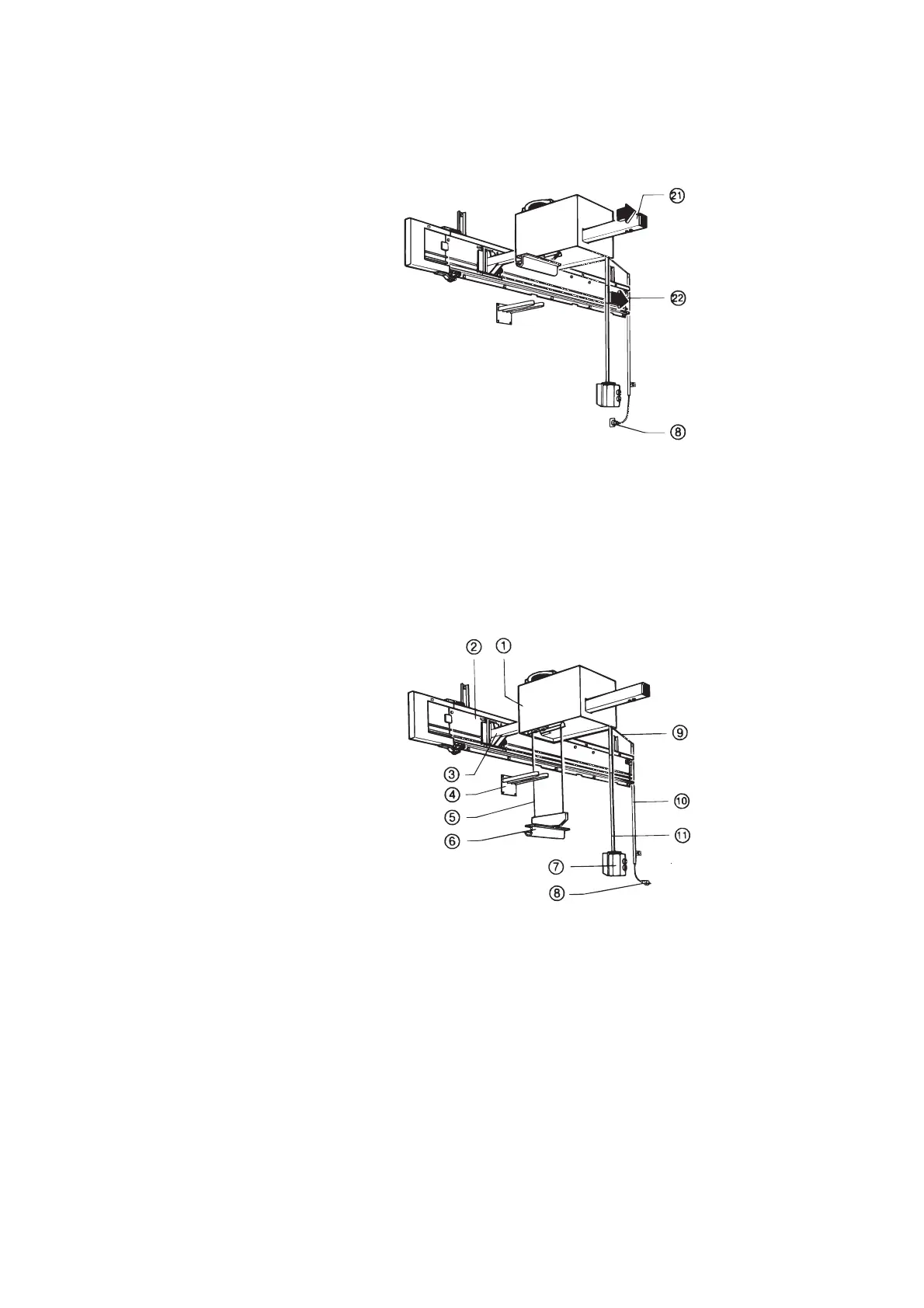

A 7 Controls and functional elements
1 Carriage
2 Guide rail
3 Load arm
4 Threading rail
5 Steel rope
6 Load hook
7 UP/DOWN button
8 Power plug
9 Power cord
0 Protective tube
q Support tube
