KaVo EWL 2 - Mounting on Uneven Walls

7
Electric Dispenser Hoist EWL 2, 3, 4

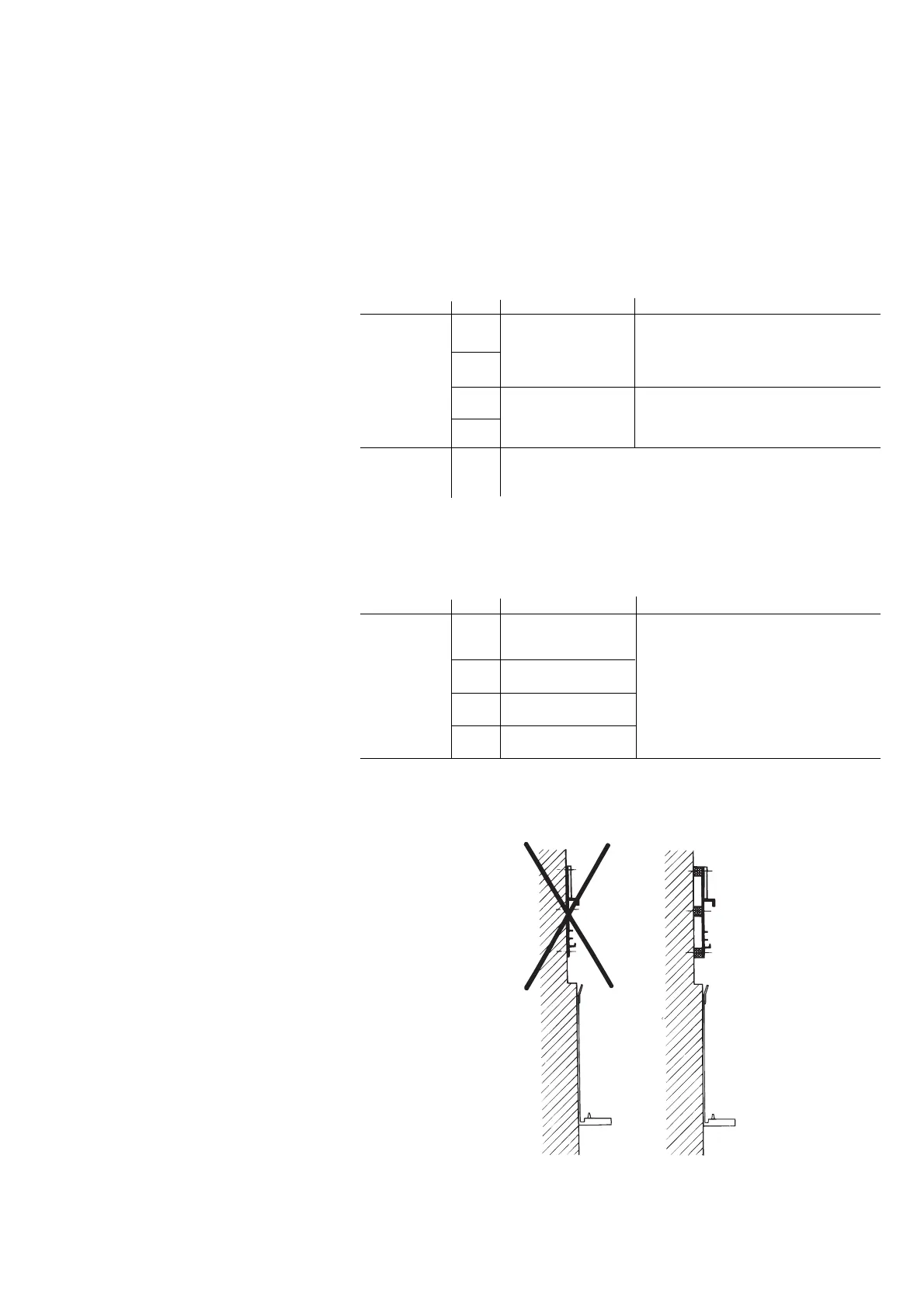

A 5.3 Mounting on an out-of-line or
un-even wall
Spacers must be used in accor-dance with
the following tables to achieve the correct
alignment.
Group I building materials
Group II building materials
Group I building materials
Spacer mm Screws Remarks
Washer 0-3 Wood screw 7 x 105 In parts supplied
Mat. No. 0.247.2130
11x3x34 6-12
Mat. No. 15-24 Wood screw 7 x 120 not in parts supplied
Mat. No. 0.247.2135
0.244.7005 27-33
Group II building materials
Spacer mm Screws Remarks
washer 0-3 screw M 10 x 20 not in parts
Mat. No. 0.251.0202
11 x 3 x 34 6-12 screw M 10 x 30 supplied
Mat. No. 0.251.0203
Mat.No. 15-24 screw M 10 x 40
Mat. No. 0.251.0205
0.244.7005 27-33 screw M 10 x 50
Mat. No. 0.251.0208
