12
Electric Dispenser Hoist EWL 2, 3, 4

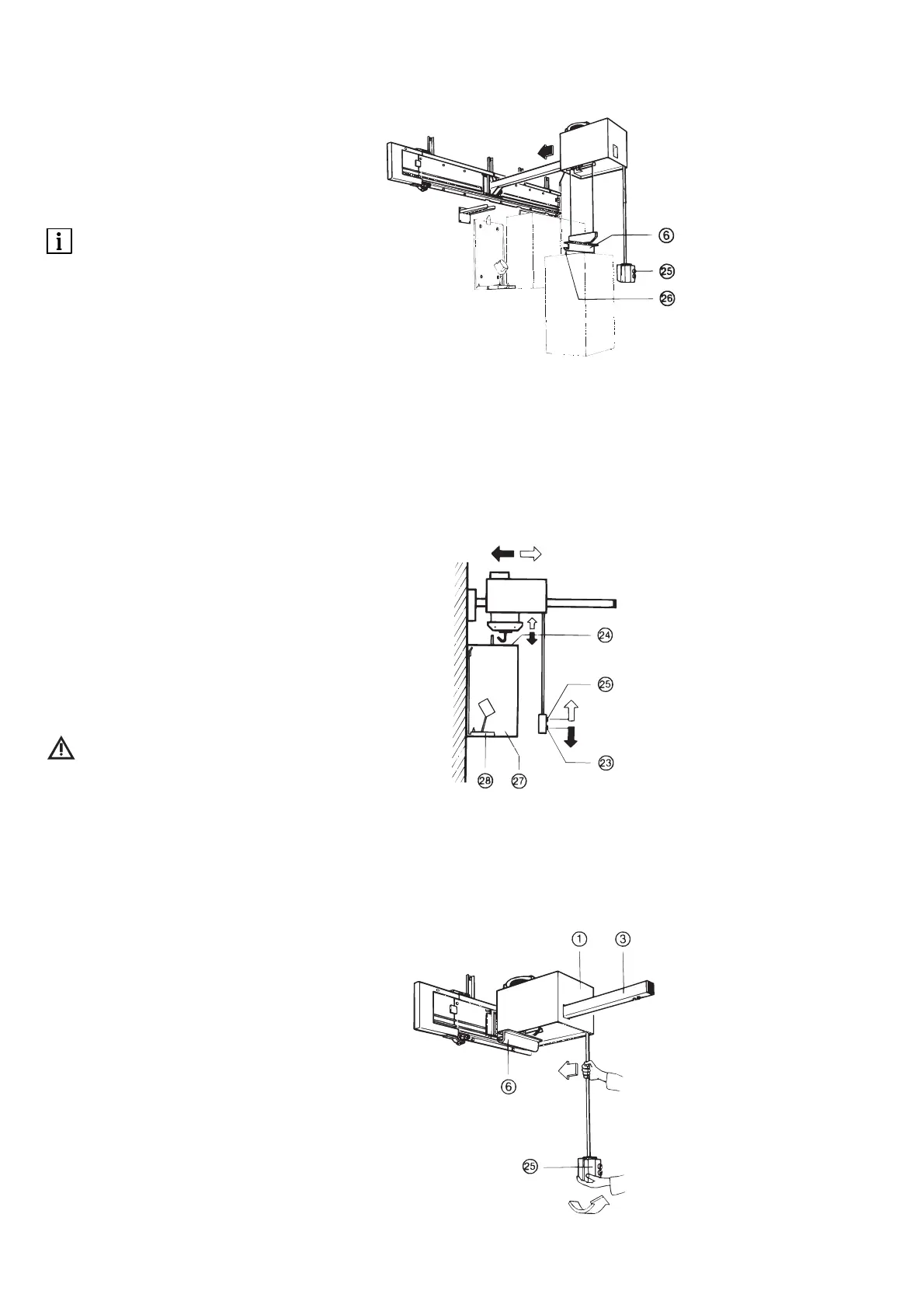

Hook the load hook 6 into the bracket h
again and raise the full plaster container to
the stop by operating the button g.
Load hook
6
with suspended pla-
ster container
j
is stopped at the
upper limit stop by an auto-matic limit
switch.
Move the carriage 1 in the direction of the
arrow to the rear limit stop.
Operate the button d to lower the plaster
container in the direction of the console k.
During the lowering process, push
the container
j
against the con-sole
k
. The container
j
must engage fully in
the supports of the console
k
.
Lower the load hook 6 to the cover f
stop. Move the carriage 1 slightly for-
wards and raise the load hook 6 to the
stop by operating the button g.
Slide the carriage 1 up to the limit stop on
the guide rail 2. Raise the load arm 3 and
move it to the left into the parking position.
