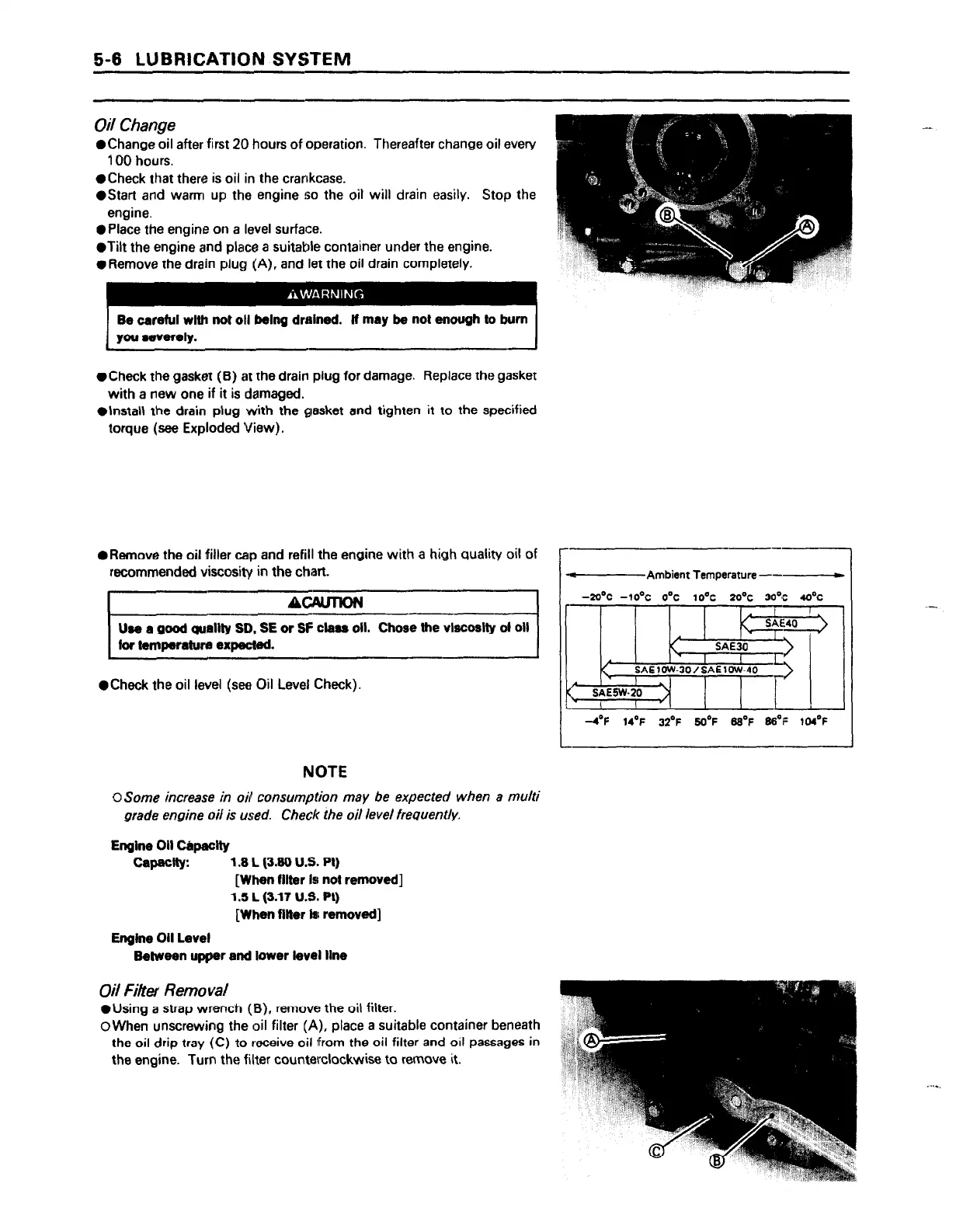

5-6 LUBRICATION SYSTEM
Oil Change
l
Change oil after first 210 hours of operation. Thereafter change oil every
100 hours.
@Check that there is oil in the crankcase.
l
Start and warm up the engine so the oil will drain easily. Stop the
engine.
0 Place the engine on a level surface.
@Tilt the engine and place a suitable container under the engine.
ORemove the drain plug (A), and let the oil drain completely.
1
Be careful with not oli being drrrined. it may be not enoqh to bum
youM”eraly.
*Check the gasket (6) at the drain plug for damage. Replace the gasket
with a new one if it is damaged.
emstall the drain plug with the gasket and tighten it to the specified
torque (see Exploded View).
ORemove the oil filler cap and refill the engine with a high quality oil of
recommended viscosity in the chart.
Use a good quality SD, SE or SF class oil. Chose the viscosity 01 oil
l
Check the oil level (see Oil Level Check).
Ambient Temperature ---
-MY -10°C o’c 1 o”c 2o”c 30% 4.0°c
-4’F 14’F 32’F 5O*F 68*F 86’F 104’F
NOTE
OSoms increase in oil consump8tion may be expected when a multi
grade engine oil is used. Check the oil level frequently.
Engine Oil cbpacity
Capacity: 1.8 L (3.80 U.S. PI)
[When filter ISI not removed]
1.5 L (3.17 U.S. PI)
[When fiiter b removed]
Engine Oil Level
Between upper and lower level line
Oil Filter Removal
l
Using a strap wmnch (S), remove the oil filter.
0 When unscrewing the toil filter (A), place a suitable container beneath
the oil drip tray (C) to receive oil lfrom the oil filter and 011 passages in
the engine. Turn the filter counterclockwise to remove it.
To Next Page
