Operation and Service KBL 6800/6900

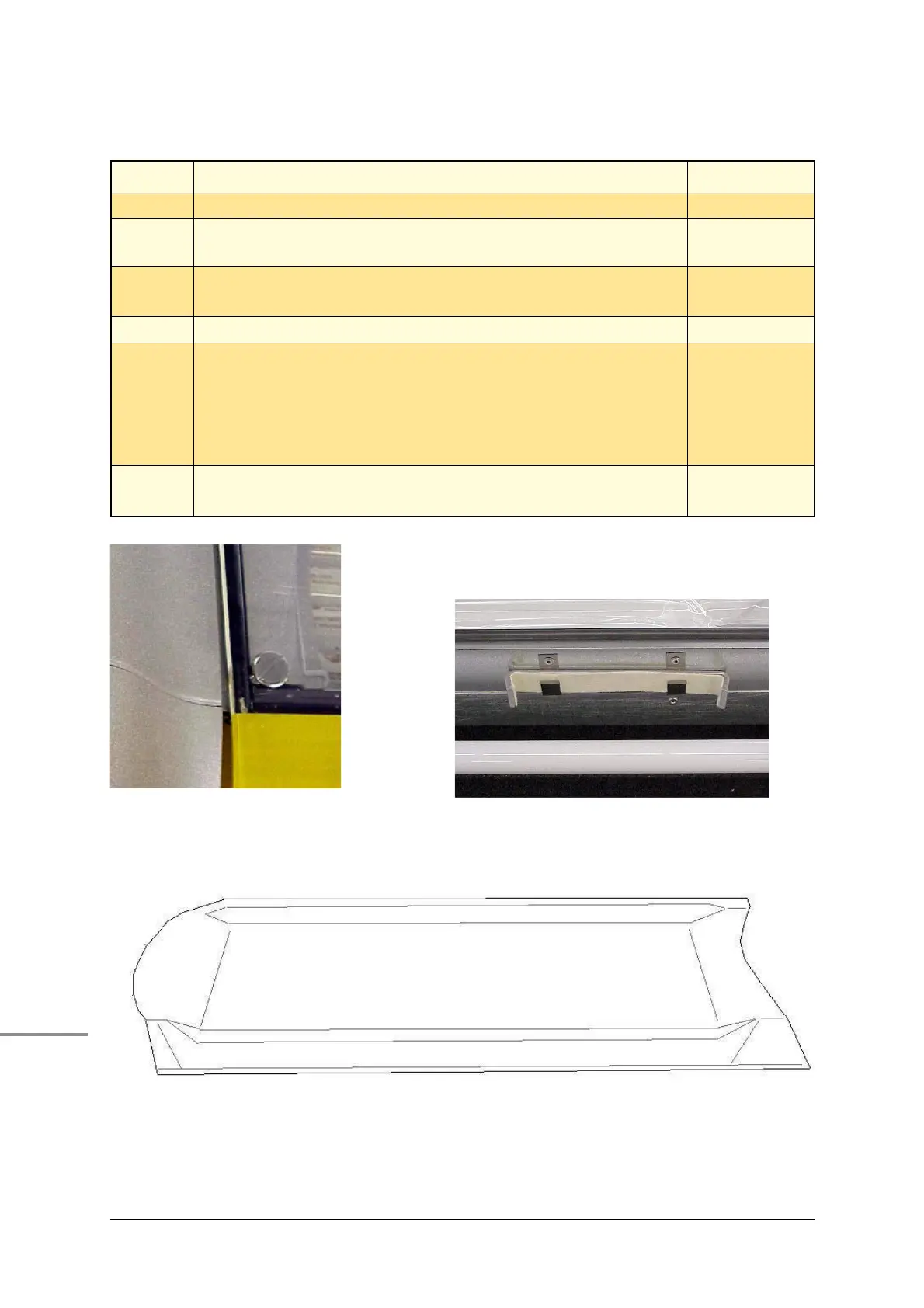

Illustr. 5-4 Pan-head screw Illustr. 5-5 Suspension of the base pane
Illustr. 5-6 Duct pane
Step Procedure Reference
1 Fix the canopy.
2 Undo the two pan-head screws on the right and on the
left-hand side of the base pane.
Illustr. 5-4
3 Lift the base pane and !x it to the canopy by means of the
enclosed hooks.
Illustr. 5-5
4 Clean the lower part of the base pane.
5 If there is a duct pane in the bed, you can take it out for
cleaning purposes.
Carefully put the duct pane back into its correct position
for the proper cooling of the base pane"
Proceed in the same way with the shoulder tanner.
Illustr. 5-6
6 Clean the upper surface of the base pane and fasten it
with the two screws.
