Operation and Service KBL 6800/6900
5.7 Unit lighting
Coloured • lter
Replacing the
lighting system in
the canopy
The coloured ! lter has to be replaced at the latest when repla-
cing the tanning tubes.
Both in the canopy and in the lateral section, there is a coloured
lighting tube installed behind the tanning tubes. (see Table).
Replacing the
unit lighting in the
lower front section
The tube in the lower front section is located in a protective
conduit, which has been screwed onto the tube sockets. Take
the opportunity to check the !lter mat and to clean or replace it if
necessary.

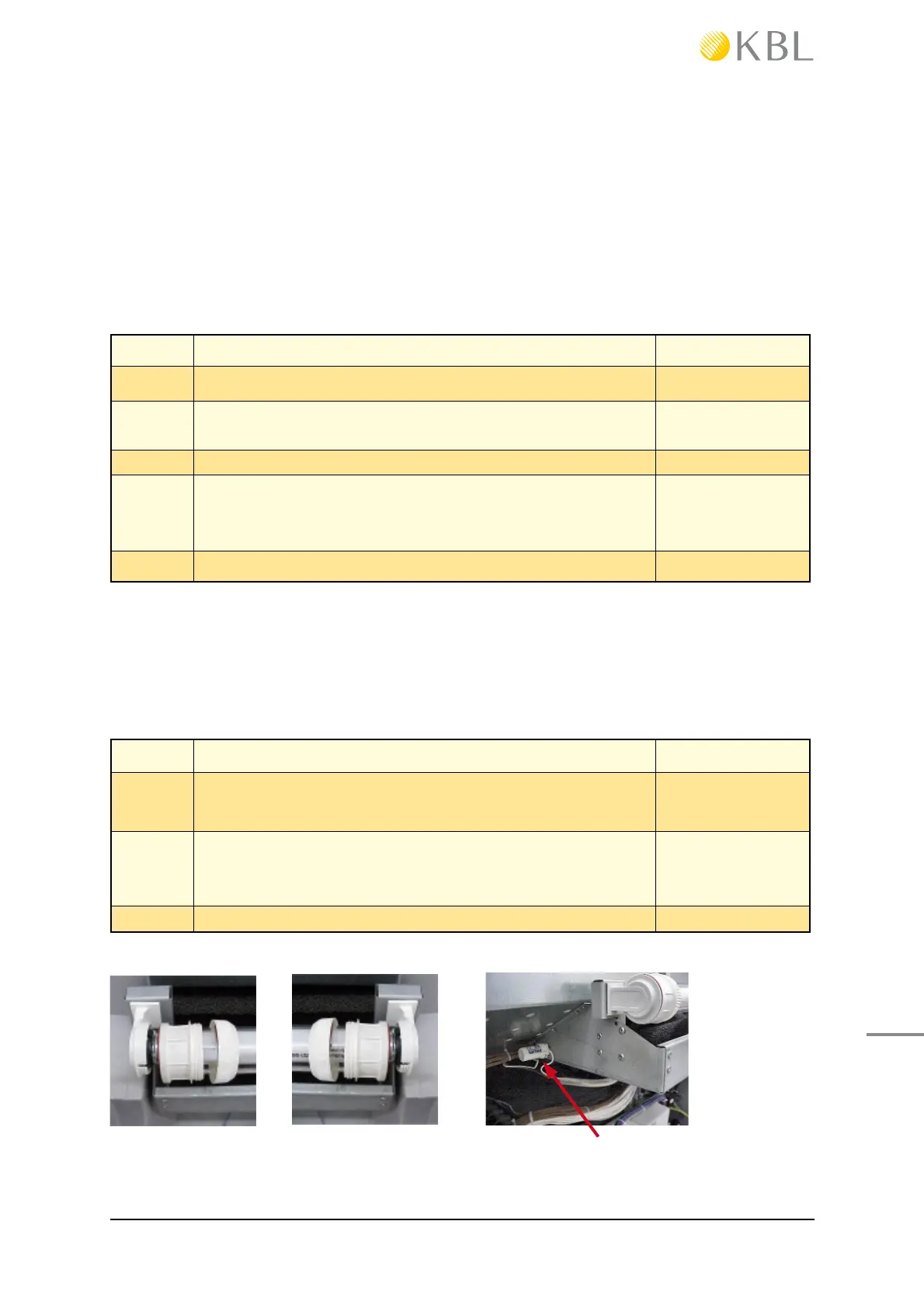

Illustr. 5-14 Unit lighting in the lower front section and the starter for this tube on
the left side.
5.7.1 Unit lighting KBL 6800
Step Procedure Reference
1 Canopy: Open the canopy pane and tilt it downwards. Section 5.2
2
Remove the tanning tubes 5 and 6. Now you can re-
place the tube.
3 Re-install the tanning tubes and close the canopy.
4
Lateral pane:
Open the lateral pane and remove the two upper tan-
ning tubes. Now you can replace the tube.
Section 5.2
5 Re-install the tanning tubes and close the lateral pane.
Step Procedure Reference
1 Undo the two screws of the base pane and tilt the
pane upwards.
2 Unscrew the protective conduit on both sides and
push it to the right (or to the left). Now you can replace
the tube.
Illustr. 5-14
3 Close the base pane.
