Canopy lighting KBL 6800: Below the canopy casing you will !nd red or
blue (depending on the colour of the unit) high-performace
LEDs. With a service life of 100,000 hours, these diodes are
maintenance-free. For a cooling effect and for an even lighting
they have been mounted on re"ecting tins.

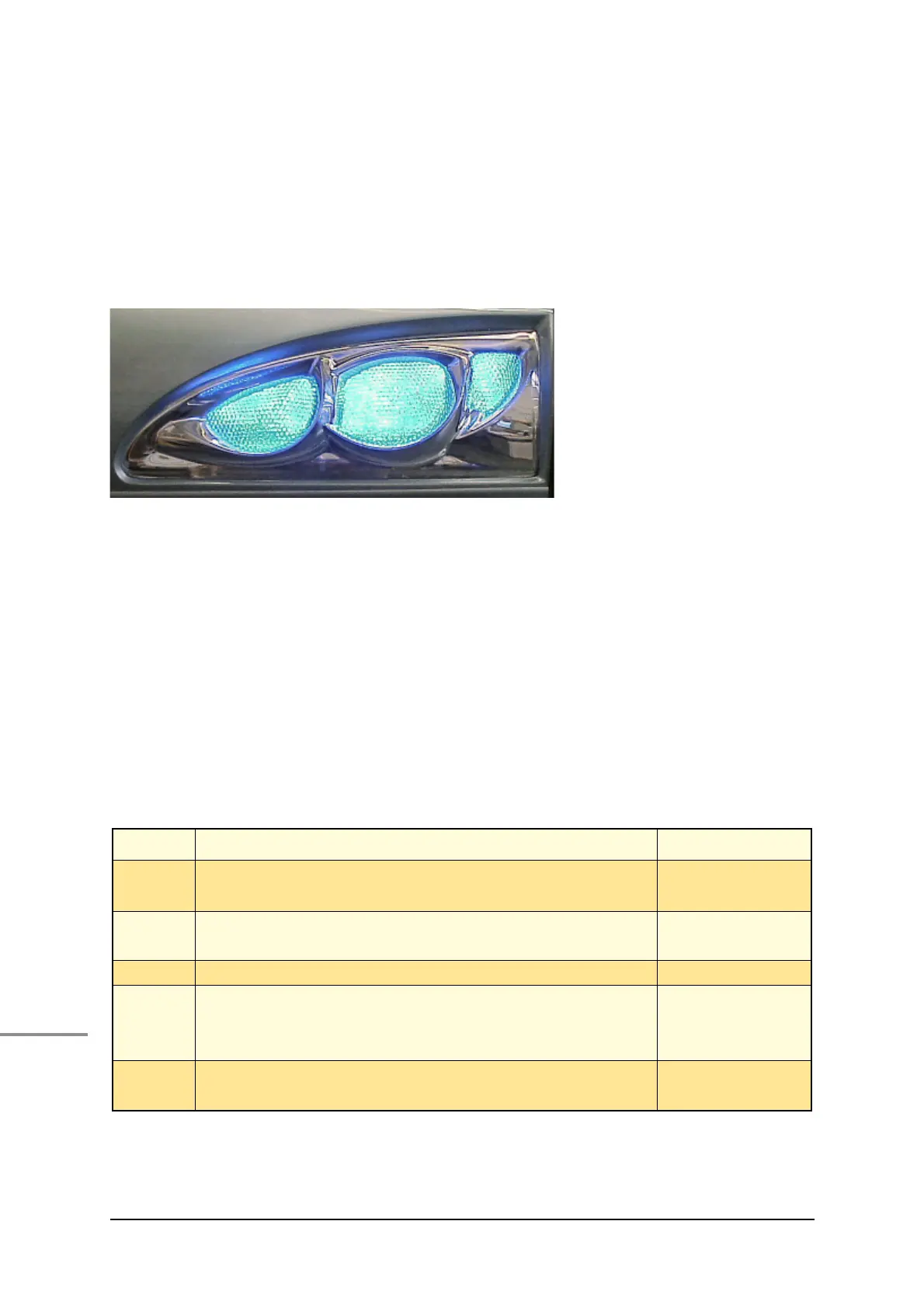

Illustr. 5-15 LEDs in the canopy of KBL 6800, on the
right
5.1.2 Unit lighting KBL 6900
Coloured ! lter
Replacing the
lighting system in
the lateral section
The coloured ! lter has to replaced at the latest when replacing
the tanning tubes.
Both in the canopy and in the lateral section, there is a coloured
lighting tube installed behind the tanning tubes. (see Table).
Step Procedure Reference
1 Canopy:
Open the canopy pane and tilt it downwards.
Section 5.2
2 Remove the tanning tubes 5 and 6. Now you can
replace the tube.
3 Re-install the tanning tubes and close the canopy.
4 Lateral pane:
Open the lateral pane and remove the two upper
tanning tubes. Now you can replace the tube.
Section 5.2
5 Re-install the tanning tubes and close the lateral pane.
