27
Operation and Service KBL 6800/6900
Replacing the
unit lighting in the
lower front section
The tube in the lower front section is located in a protective
conduit, which has been screwed onto the tube sockets. Take
the opportunity to check the !lter mat and to clean or replace it if
necessary.

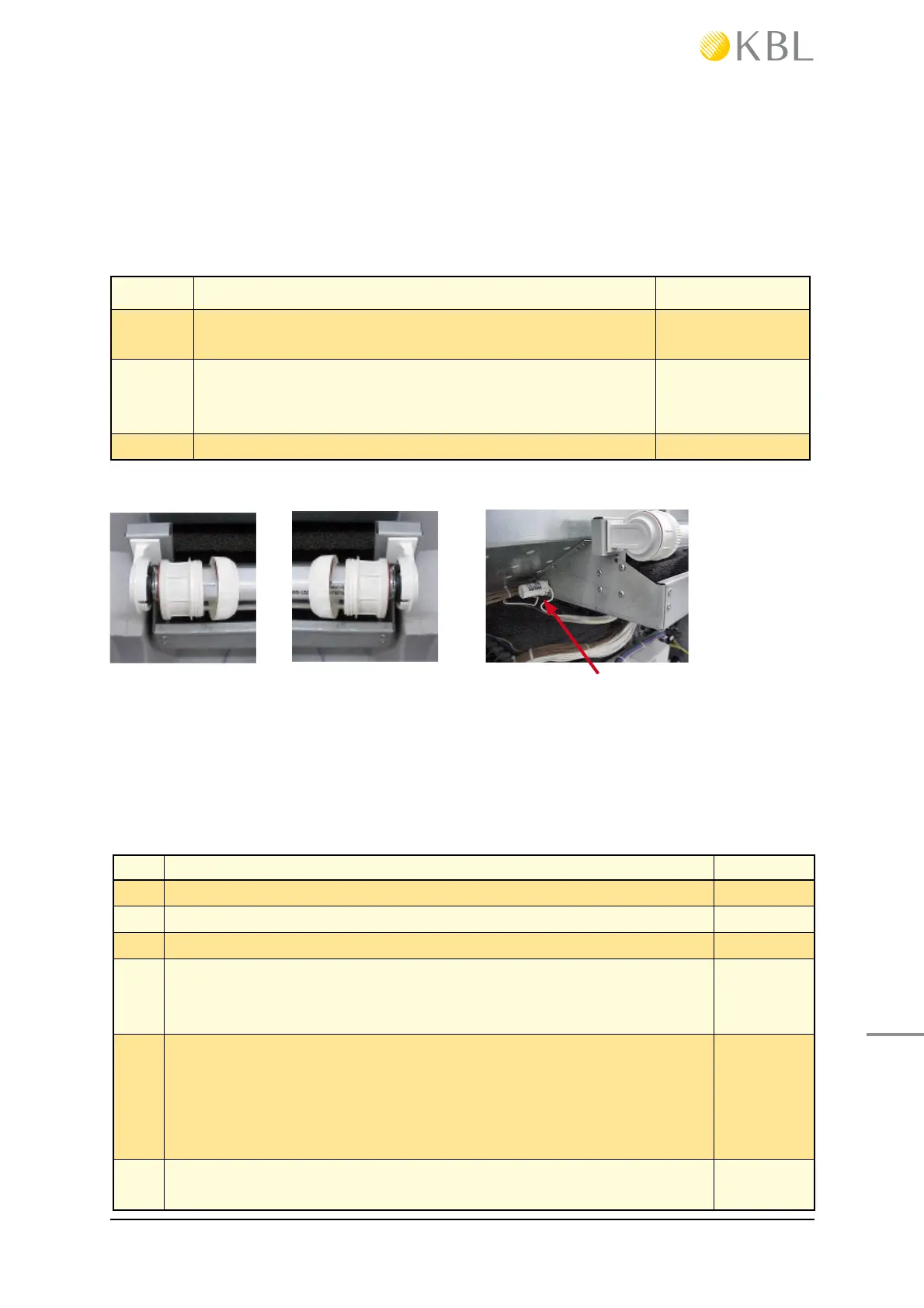

Illustr. 5-14A Unit lighting in the lower front section and the starter for this tube on
the left side.
Step Procedure Reference
1 Undo the two screws of the base pane and tilt the
pane upwards.
2 Unscrew the protective conduit on both sides and
push it to the right (or to the left). Now you can replace
the tube.
Illustr. 5-14A
3 Close the base pane.
Step Procedure Reference
1 Dismantle the canopy pane. Sec. 5.2
2 Remove the tube covers in the facial area.
3 Remove the ! rst ! ve tanning tubes to uncover the maintenance lid.
4 Undo the screws of the maintenance lid (upper side, 3 pcs.). The
maintenance lid " aps forward together with a part of the re" ector
plate.
5 The maintenance lid is hung up in hooks. In order to remove the
maintenance lid, ! rst press the lower part slightly backwards so
you can lift it easier over the hooks and then take out the main-
tenance lid in an upward movement. Make sure hat the re" ector
plate does not damage the tanning tubes.
6 Release the tube and lift it up and sidewards, so you can take it
out through the opening, then.
Replacing the
lighting system in
the canopy
