KE2 EvaporatorEfciency
Installation Instructions
thermsolutions
TM
Installation N.1.1 August 2011
Page 8

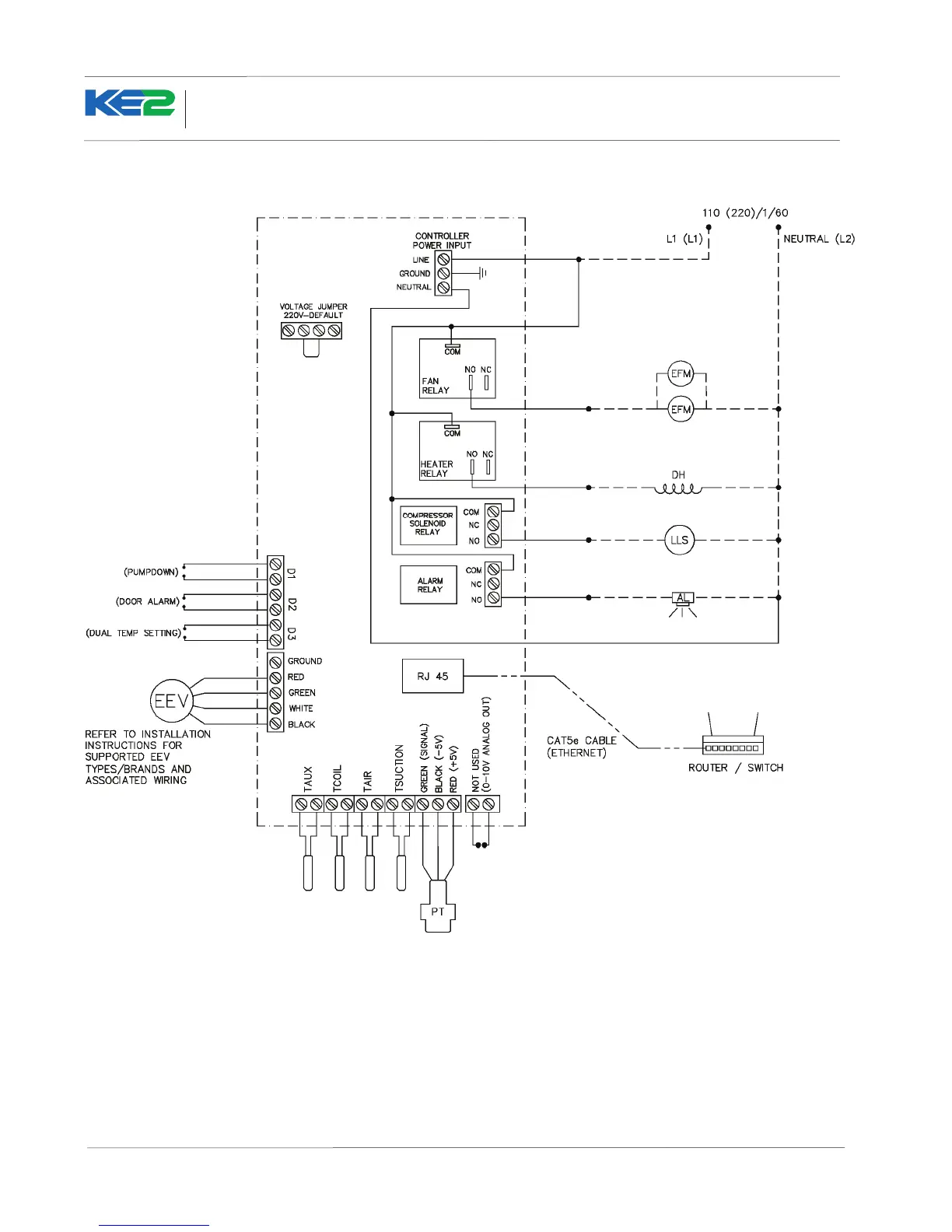

Figure 7 - Wiring Schematic - Controller New Install
Legend
EFM - Evaporator Fan Motor
DH - Defrost Header
LLS - Liquid Line Solenoid
AL - Alarm
PT - Pressure Transducer
TSUCTION - Suction Temperature
TAIR - Return Air Temperature
TCOIL - Evaporator Coil Temperature
TAUX - Auxiliary Temperature
EEV - Electric Expansion Valve
D1 - Digital Input 1
D2 - Digital Input 2
D3 - Digital Input 3
- - - By others
All eld wiring must conform to local codes
