KE2 Therm Solutions Evaporator Efficiency Installation Instructions

Copyright 2011 KE2 Therm Solutions, Washington, Missouri 63090
thermsolutions
TM
Installation N.1.1 August 2011
Page 9
KE2 EvaporatorEfciency
Installation Instructions
Evaporator Fan Motors
Con1 Max HP & Amp Ratings (Total All Fans)
Voltage Max HP Max AMPS
230 3e 15 42 460 3e 30 40 575 3e 30 32

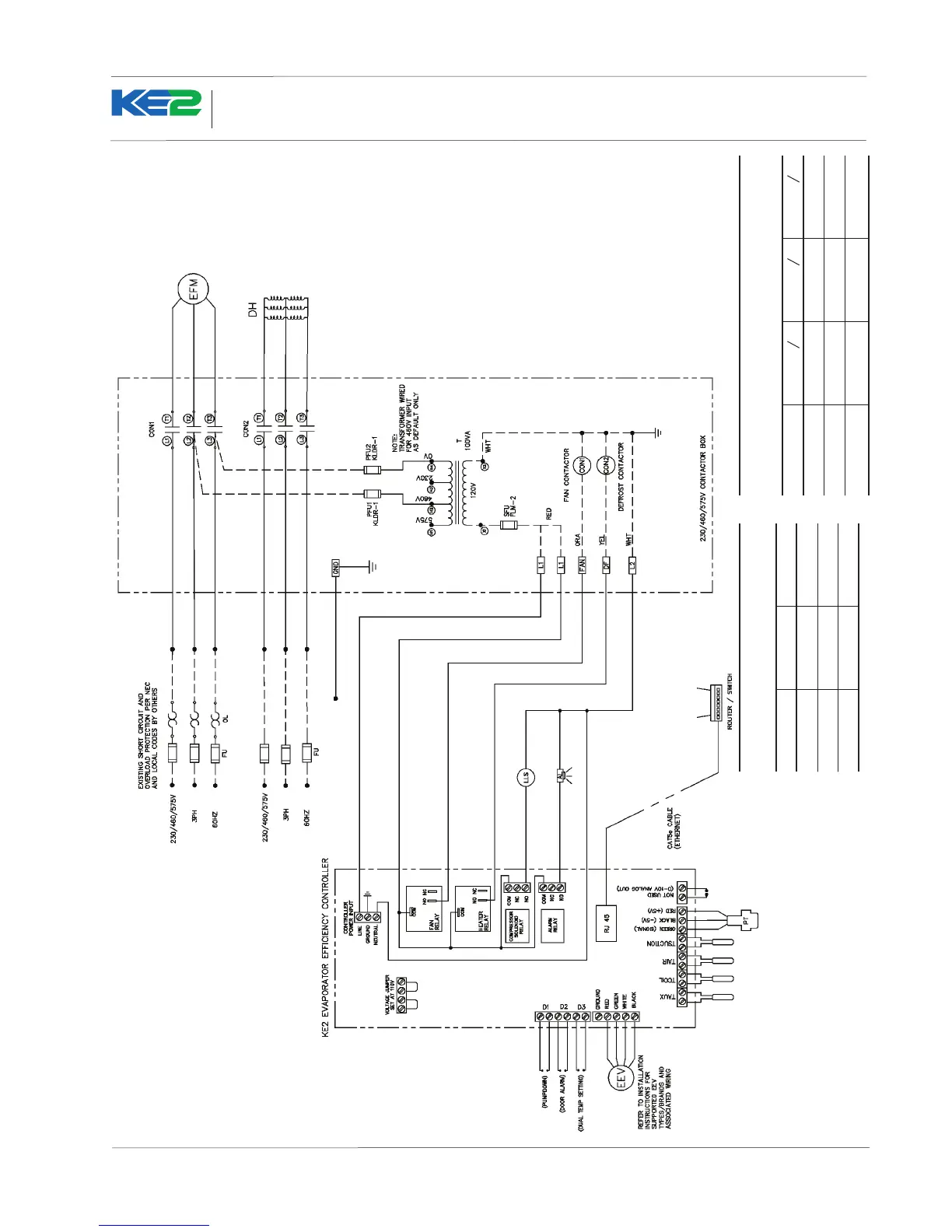

Figure 8 - Wiring Schematic - Controller with Contactor Box
Existing Defrost Heaters Con2 Max Current Ratings
(Amps are Total All Heaters)
Relay Box P/N 230V 3O 460V 3O 575V 3O
20217 54 Amps 52 Amps 52 Amps 20218 68 Amps 65 Amps 62 Amps 20219 80 Amps 77 Amps 62 Amps
Legend
EFM - Evaporator Fan Motor DH - Defrost Header LLS - Liquid Line Solenoid AL - Alarm PT - Pressure Transducer TSUCTION - Suction Temperature TAIR - Return Air Temperature TCOIL - Evaporator Coil Temperature TAUX - Auxiliary Temperature EEV - Electric Expansion Valve D1 - Digital Input 1 D2 - Digital Input 2 D3 - Digital Input 3 - - - By others
All eld wiring must conform to local codes Contactor ratings per UL508 CSA 22.2
