6.2 Operator main menu
6.2.1 Switching on
The operator is supplied power by the drive controller and switches on and o with the
drive controller. After switching on, the operator searches automatically for the connect-
ed drive controller. This also occurs in case of communication interuption with the drive
controller. The node number of the connection can be read out in the operator parameter
OS13.
When accessing the drive controller via the ethernet or USB interface, the use of the
node address is optional.
The operator responds to all node addresses but will add the node of the connected
drive controller.

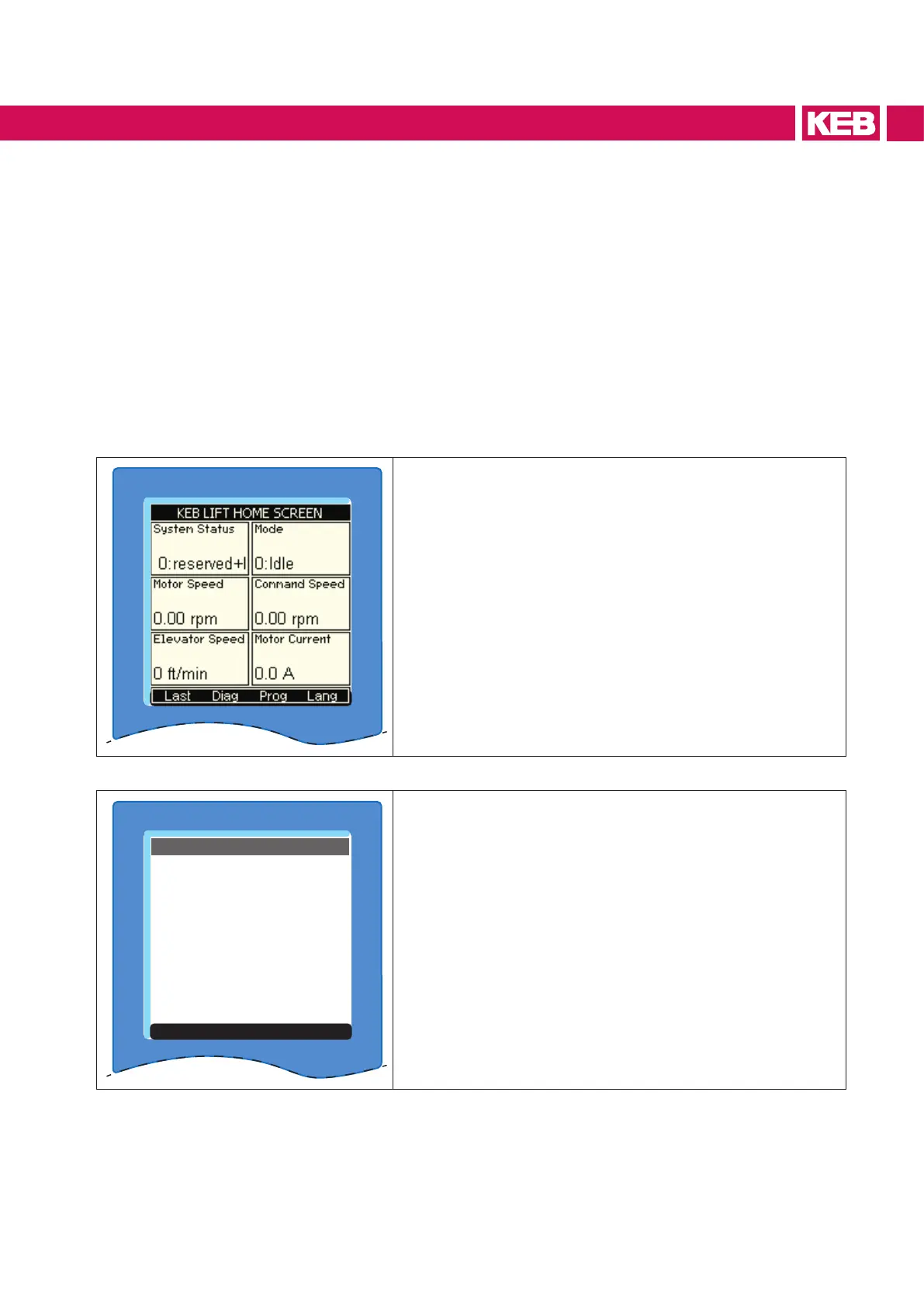

The KEB Lift Home screen is the first screen displayed upon
booting the operator. The Home screen will always display six
modules and emulates the KEB F5 Home screen.
Inverter parameter
Figure 9: KEB lift home screen
Inverter parameter
Operator parameter
Parameter saving
Up/Download
Work list
File operations
FTP mode
Enter test mode
The main menu is the uppermost menu level. With the keys p
and q you can navigate with the the menu bar and select the
desired submenu.
Press ENTER to jump to the selected submenu.
Inverter parameter
Figure 10: Main menu
6.2.2 Required les
The operator requires the following les in its ash memory for correct operation:
