GB - 12












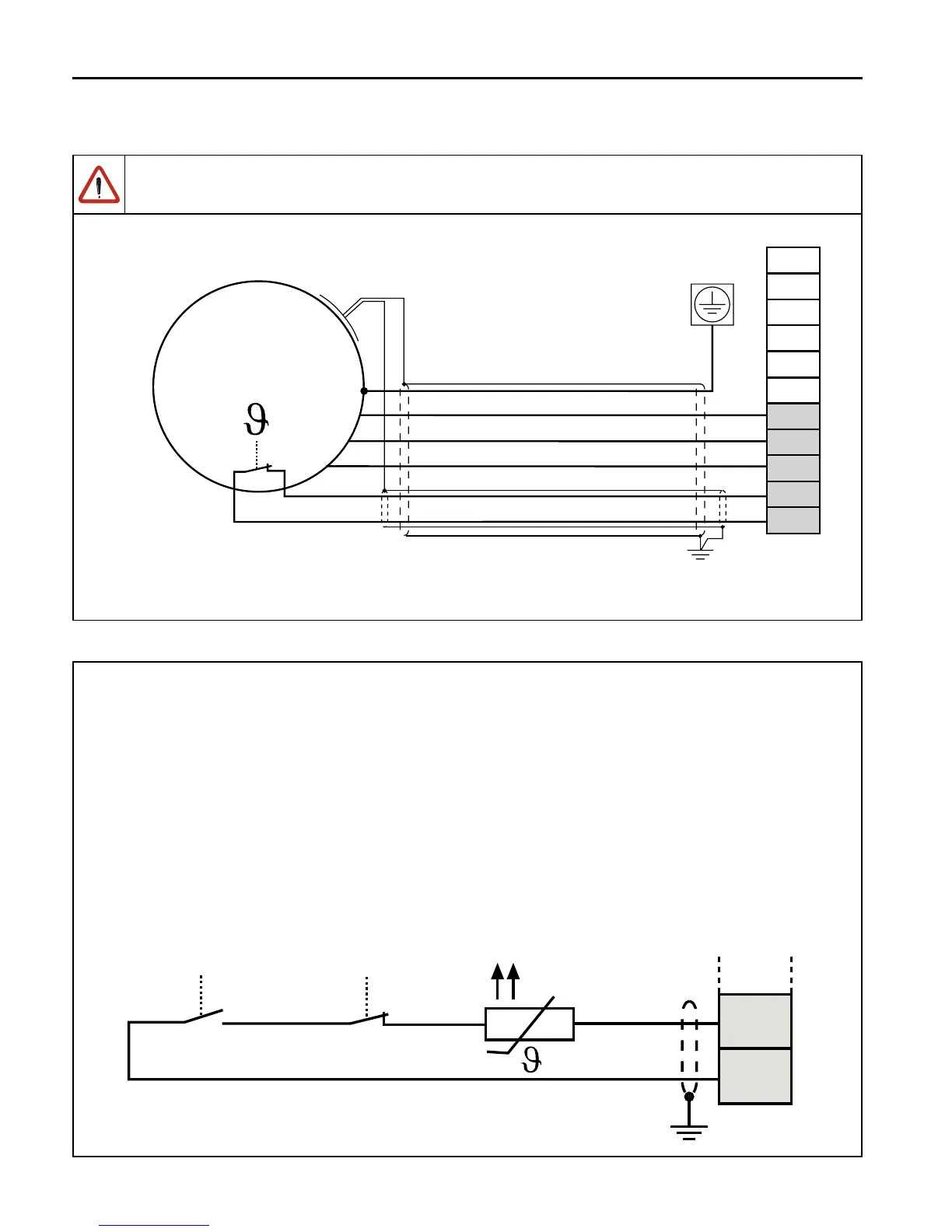

3.3.5 Connection of the temperature monitoring
3.3.4 Motor connection
Maximum motor line length see chapter 2.3
Apply shieldings over a large
contact surface of the mounting
plate
Motor-PTC
(optionally)
Installation and Connection


 

Terminals T1, T2
Tripping resistance 1.65…4 kΩ
Reset resistance 0.75…1.65 kΩ
Design in accordance with VDE 0660 Part 302
This function can be activated by the machine builder by software
Do not lay connecting cable together with control cable
Permissible in the motor cable only with double shielding
Connect relay K1 for re prevention in regenerative operation (see 3.3.6)
Motor-PTCOther
