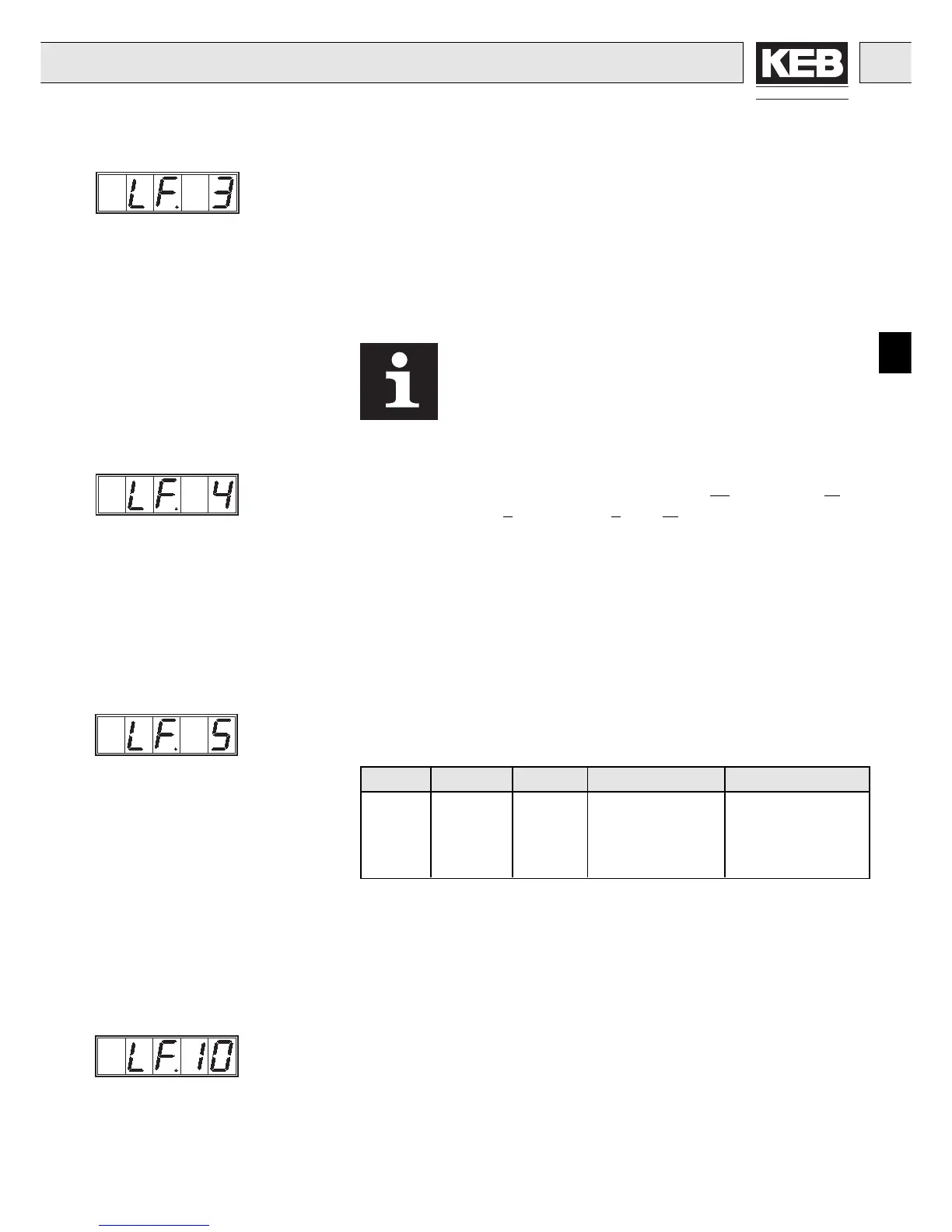

With LF.3 you can preselect a divider for the signals of the incremental
encoder output (X5). The adjusted value is valid after a power-on-
reset.
Unit: 1
Value range: 1...128
Factory setting: 1
Divider Incremental
Encoder Output
8. Parameter Description
No divider possible with resolver connection (1 : 1)!
With parameter LF. 4 you can select, if it is an asynchronous motor
or a three-phase synchronous servo motor. LF.4 releases the
adjusted motor parameter for the selected motor and does
independently a Power-On-Reset.
Unit: 1
Value range: 0:ASM / 1:SSM
Factory setting: 0:ASM
Adjustment value: in accordance with type of the motor
With LF. 5 travel direction can be changed.
LF. 5 X2.3 X2.4 Speed setpoint Inverter status
OFF 1 0 n_set > 0 Fxxx
OFF 0 1 n_set < 0 rxxx
ON 1 0 n_set < 0 rxxx
ON 0 1 n_set > 0 Fxxx
Unit: 1
Value range: 0:off / 1:on
Factory setting: 0:off
Adjustment value: in accordance with the direction of travel
ASM-Rated Motor Power
Unit: kilowatt
Value range: 0,00...75,00 kW
Factory setting: 4,00 kW
Adjustment value: in accordance with the motor name plate
Reverse Direction of Travel
ASM/SSM-Selection
