KEB COMBIVERT F4-S/1.2 User Manual

oP - Parameter
28
The acceleration and deceleration times are preset. The times refer to a frequency
difference of 100 Hz.
When I1 or I2 is programmed onto the step speed setting, then up to 3 step
frequencies per parameter set can be activated by I1 and I2. The set values of these
step frequencies are programmed in parameters oP.22 - 24. If a programmed input is
activated on a step frequency setting, then irrespective from the programmed
frequency reference source (oP.0) the corresponding step frequency value is used as
a set value.
I1 I2 Significance
0 0 Standard set value
0 1 Step frequency 1
1 0 Step frequency 2
1 1 Step frequency 3
oP.25 programs the release of the step frequency and the source for the set direction
of rotation.
Value Significance
0 Step frequency deactivated
1 Set direction of rotation with oP. 3
2 Set direction of rotation with terminal strip
3 Set direction of rotation with step frequency value

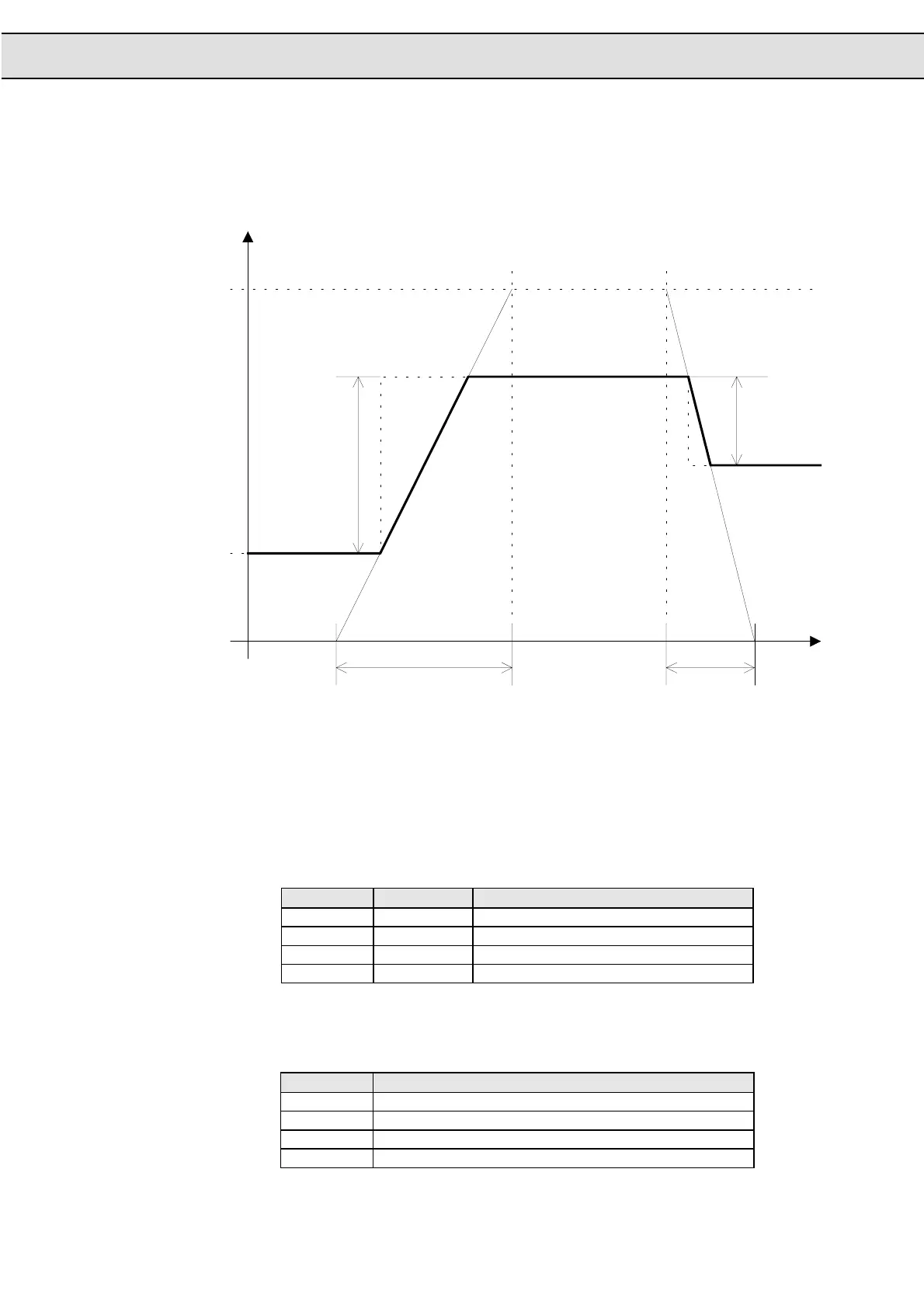

Acceleration and
Deceleration Times
(oP.11 - oP.14)
Delta-Fset
Delta-Fset
100Hz
0
Acceleration time(oP.11) Deceleration time(oP.12)
Frequency
Time
Step Frequencies
(op.22 - op.24)
Step Frequency
Mode (oP.25)
