oP - Parameter
27

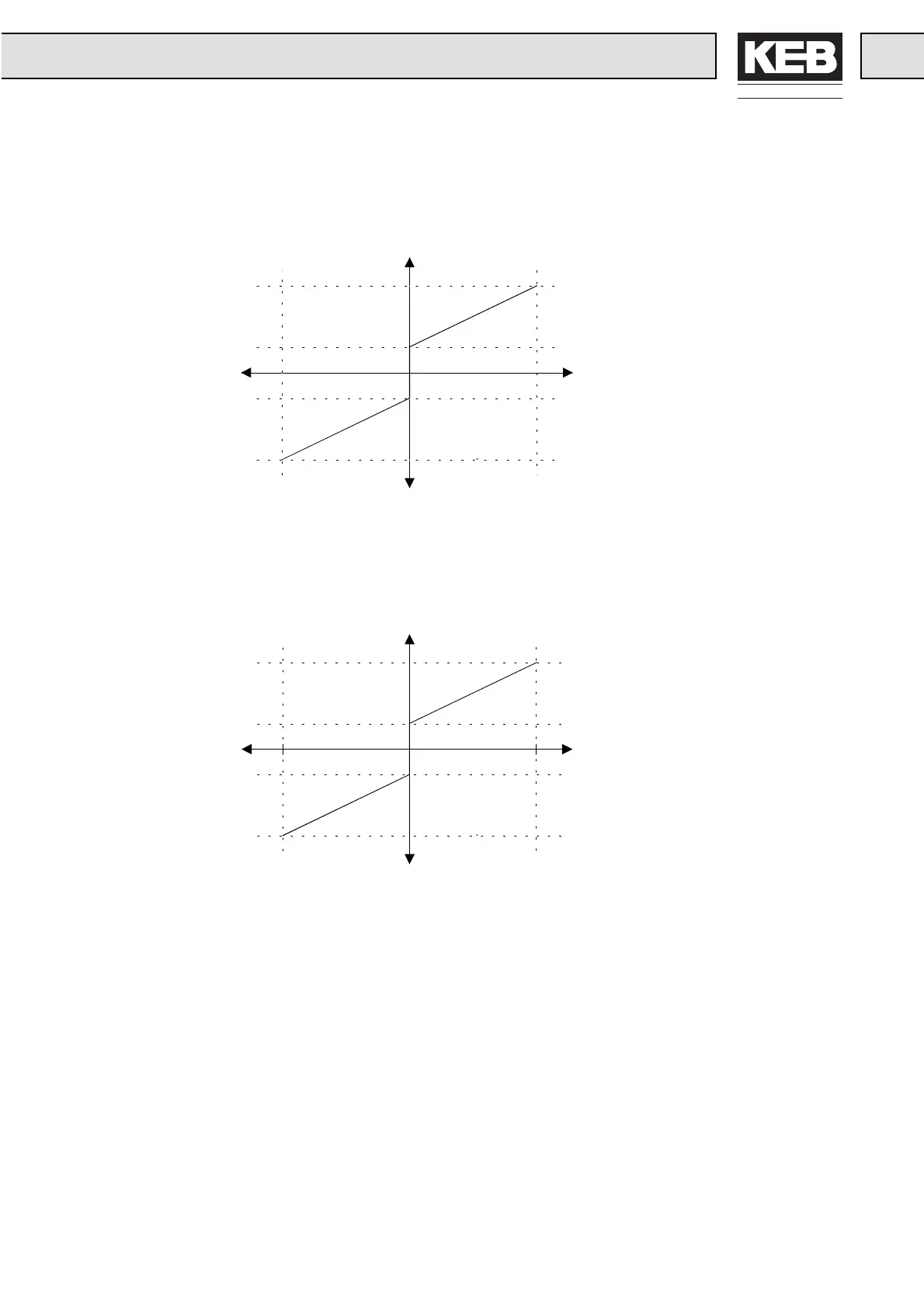

The minimum- and maximum frequencies limit the setpoints, which are transferred to
the ramp generator to generate the output frequencies. They also help determine the
curve during analog frequency reference setting. An analog value of +100%
corresponds to the adjusted setpoint in oP. 5.
(oP. 5)
(oP. 4)
(oP. 4)
(oP. 5)
F-For
F-Rev
+100%-100%
The absolute maximum frequency (oP. 8) limits the output frequency of the inverter,
e.g. no output of frequencies > oP. 8.
(oP. 8)
(oP. 4)
(oP. 4)
(oP. 8)
F-For
F-Rev
+100%-100%
Minimum- and
Maximum
Frequencies
(oP.4, oP.5)
Absolute Maxium
Frequencies (oP. 8)
