di - Parameter
62
ST
RST
F
R
I1
I2
Bit 0
Bit 1
Bit 2
Bit 3
Bit 4
Bit 5
di.16
Control Terminal
Bit 1
Bit 2
Bit 3
Bit 4
Bit 5
di.15
Bit 0
ST
RST
F
R
I1
I2

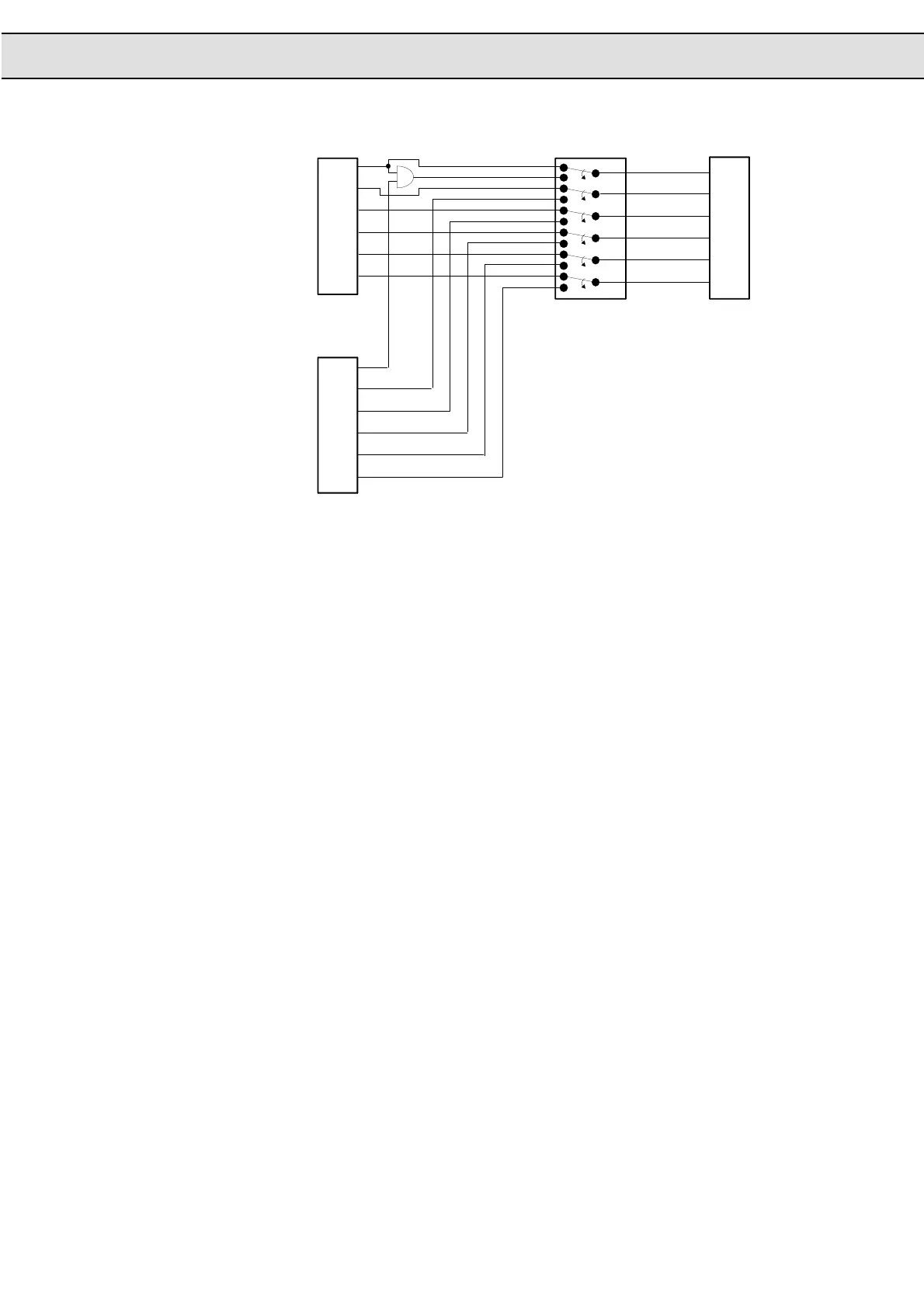

Specifies which inputs are dependent on the strobe signal. Strobe dependent inputs
are only actualized with valid strobe signals.
Attention: Input ST is not strobe dependent!
Specifies which inputs signals make up the strobe signal. All parameters with this
signal are or-interconnected. The selection as strobe signal does not influence the
selected fuction in the input function
Input Strobe
Dependent
(di.17)
Select Strobe
Source (di.18)
