GA1060 Field bus master module Connections, wiring
Project Engineering Manual, version: 1.1 / article no.: 1000296 13
© KEBA 2006
Cable routing
Signal and data lines that are foreign to the system and not connected to
the Kemro-control must not be routed in the same cable as the system’s
own signal and data lines. All shielded signal, data and low voltage supply
lines with contacted shields on either side can be routed parallel to one
another and parallel to the energy supply lines.

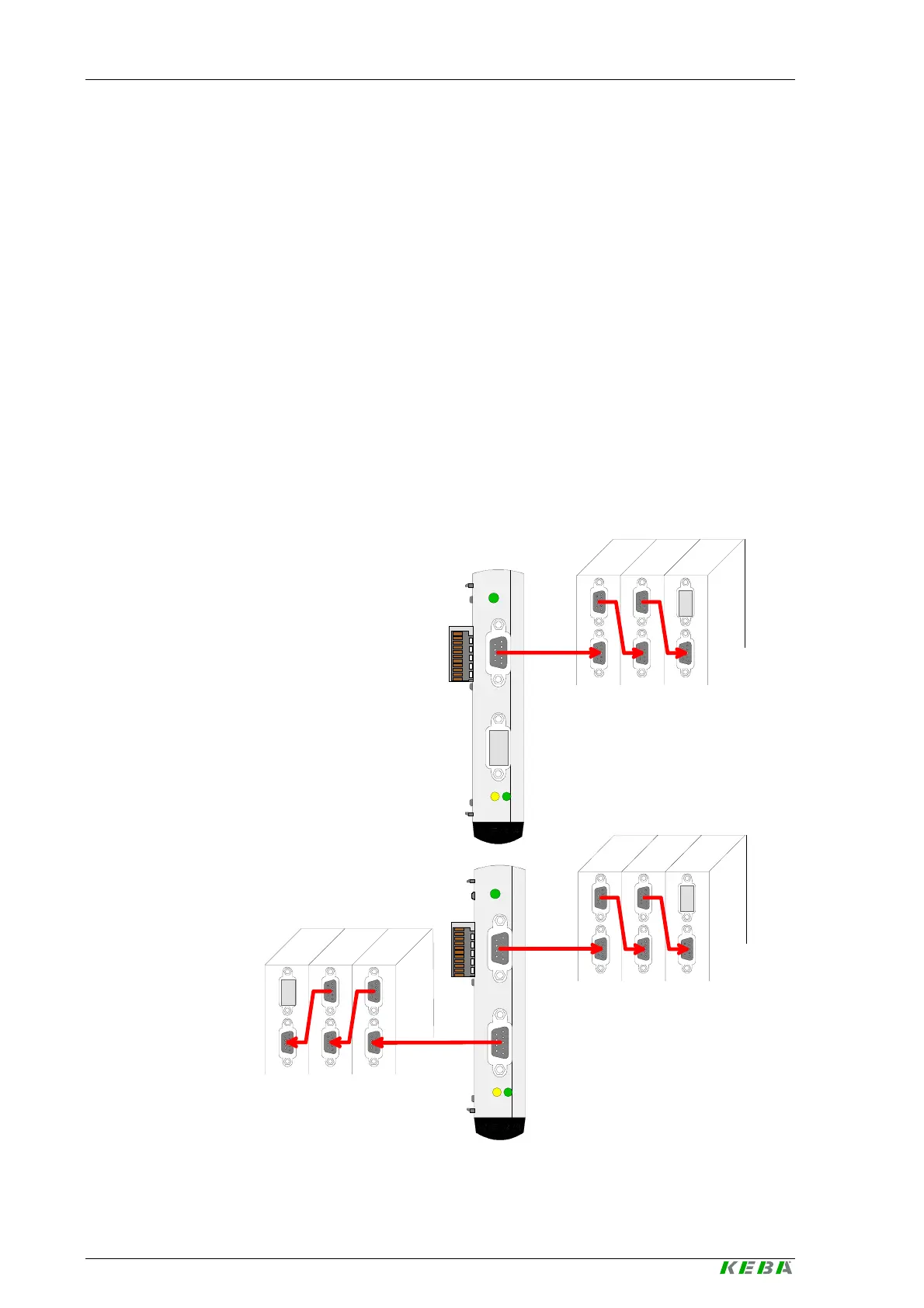

Bus topology
• The GA1060 drive bus is a bus system that must be closed on
either end with a bus terminating board.
• The FM 299/A can be operated at the end of the bus line or at any
section of the bus line. CN1 and CN2 can be located anywhere
• The total bus length must not exceed 10 meters, whereby the gaps
between the individual participants can be freely selected.
Drive controls
BT
FM 299/A
CN1
STATUS
CN2
RXTX
BA
Drive controls
BT
FM 299/A
CN1
STATUS
CN2
RXTX
Drive controls
BT
BT … bus terminating board
