Keba Kemro K2 Project Engineering Manual

Connections, wiring SANMOTION C FM 299/A
14 Project Engineering Manual, version: 1.1 / article no.: 1000296
© KEBA 2006

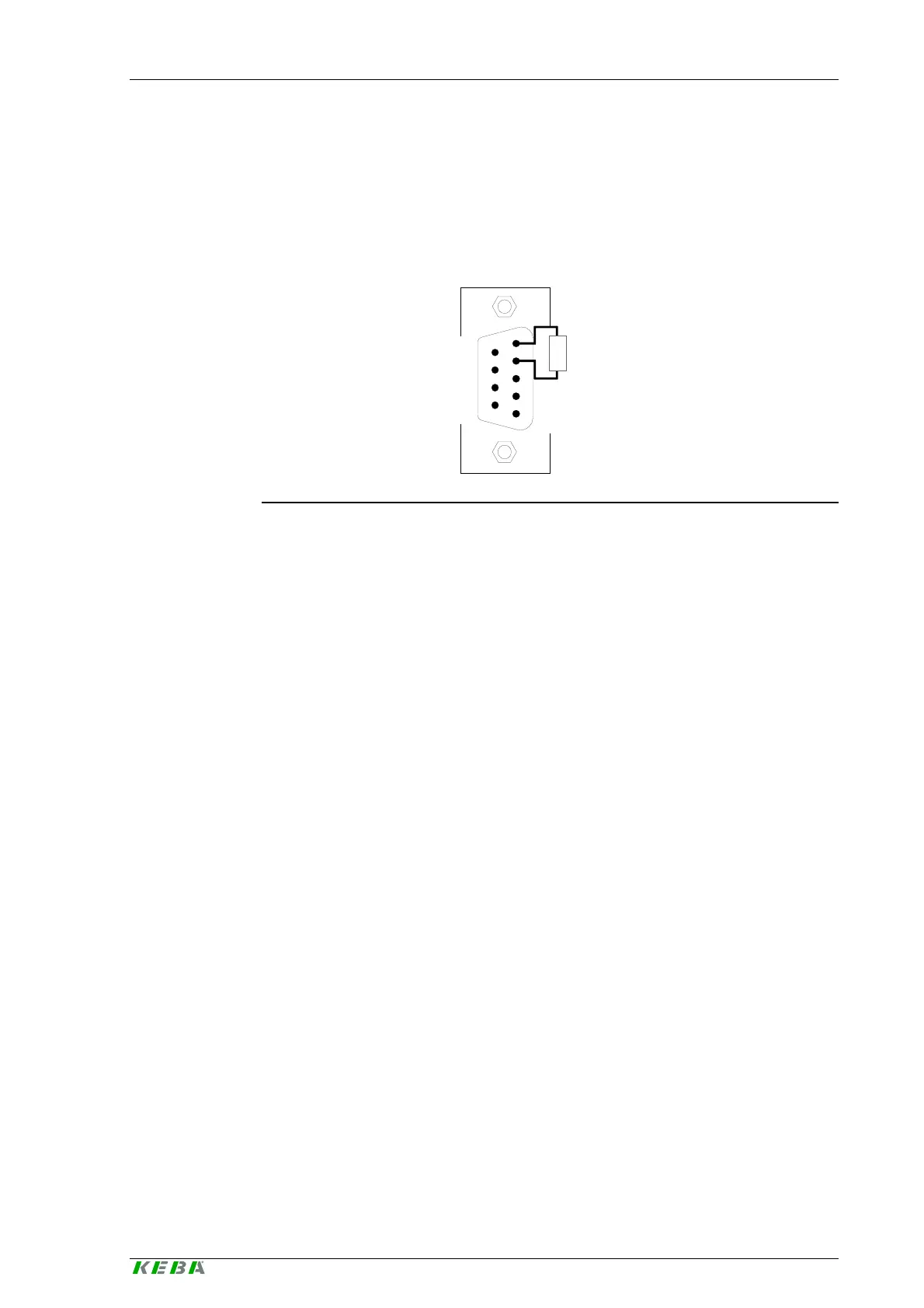

Schematic diagram of the bus topology bus terminating board
If the FM 299/A is connected at one bus terminating board of a GA1060
drive bus, a terminating board must be connected to the free plug. This is
done by soldering a resistance with 120 Ω in between the Pins 1 and 2
(GA1060 Bus).
6
1
5
9
GND
GND
GND
n.c.
GA1060 Bus+
GA1060 Bus-
GND
GND
GND
120
Ω
GA1060-Bus interface with activated bus terminating board
