Dimensions
Footprints

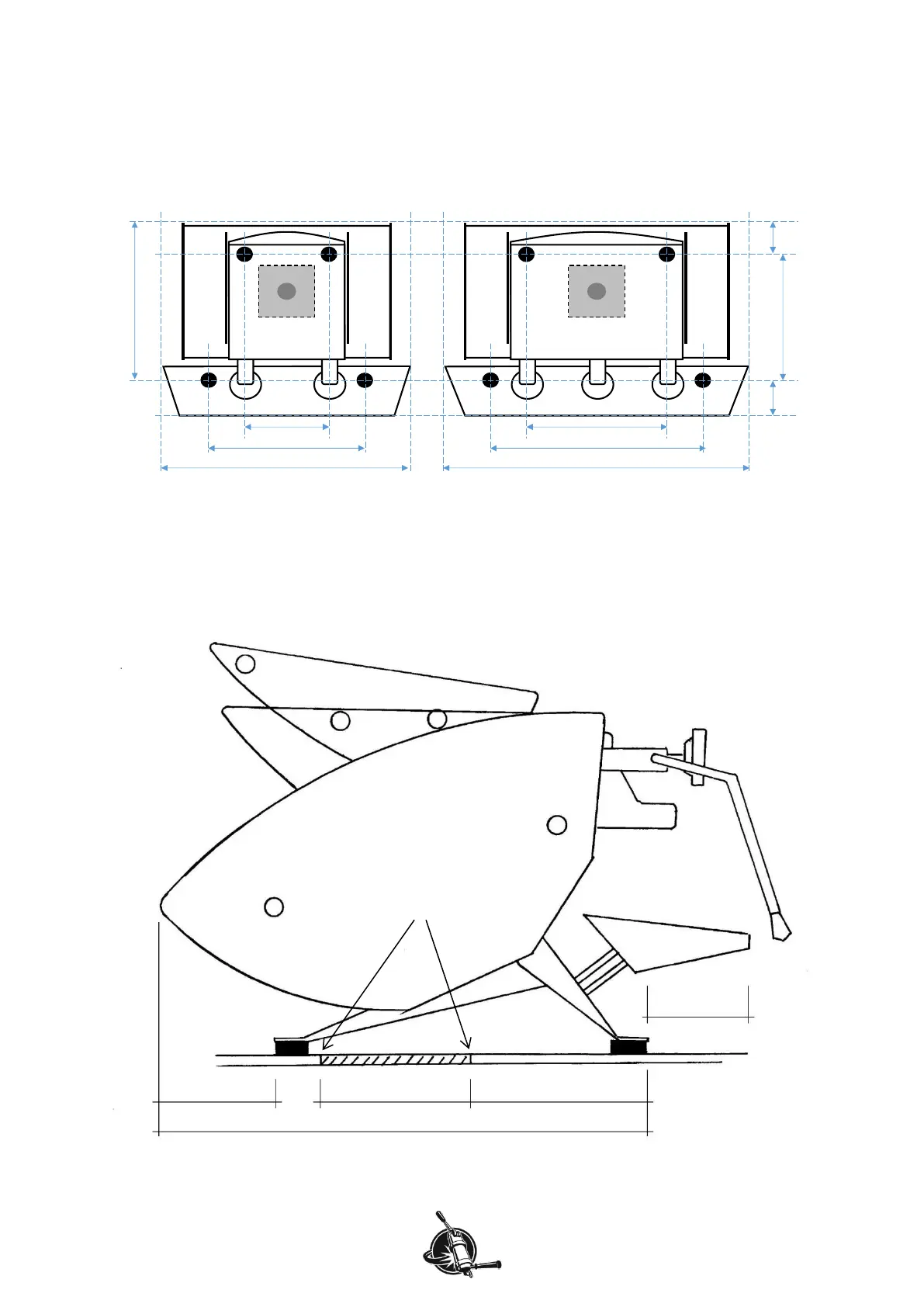

Approximate footprints of Mirage Duette (left) and Mirage Triplette (right). Black circles are rubber feet.
Countertop feedthrough (dark grey circle; diameter 60 mm) is optimally positioned in light grey square.
Note that steam wands will protrude a few centimetres left and right from machine.
Silhouette
Side view of Mirage, measurements in millimetres.
11 cm
44 cm
11-13 cm
27 cm
50 cm
79 cm
46 cm
69 cm
98 cm
55 cm
100
220
180
75
575
all feeds through a hole in
the marked area
