Kees van der Westen Mirage - High Power;Triplette Mains Switch

TECHNICAL INFORMATION
Mirage technical manual page 51 of 65
Mains switch Duette high power/Triplette
On the high power Duette and the Triplette a 4x 3-way switch allows for switching the phases apart
from the neutral leads in the machine while preserving the function of position “1” of the mains switch
(power to the main controller but not to the heating element). The wiring of this switch is shown in
Figure T 5.

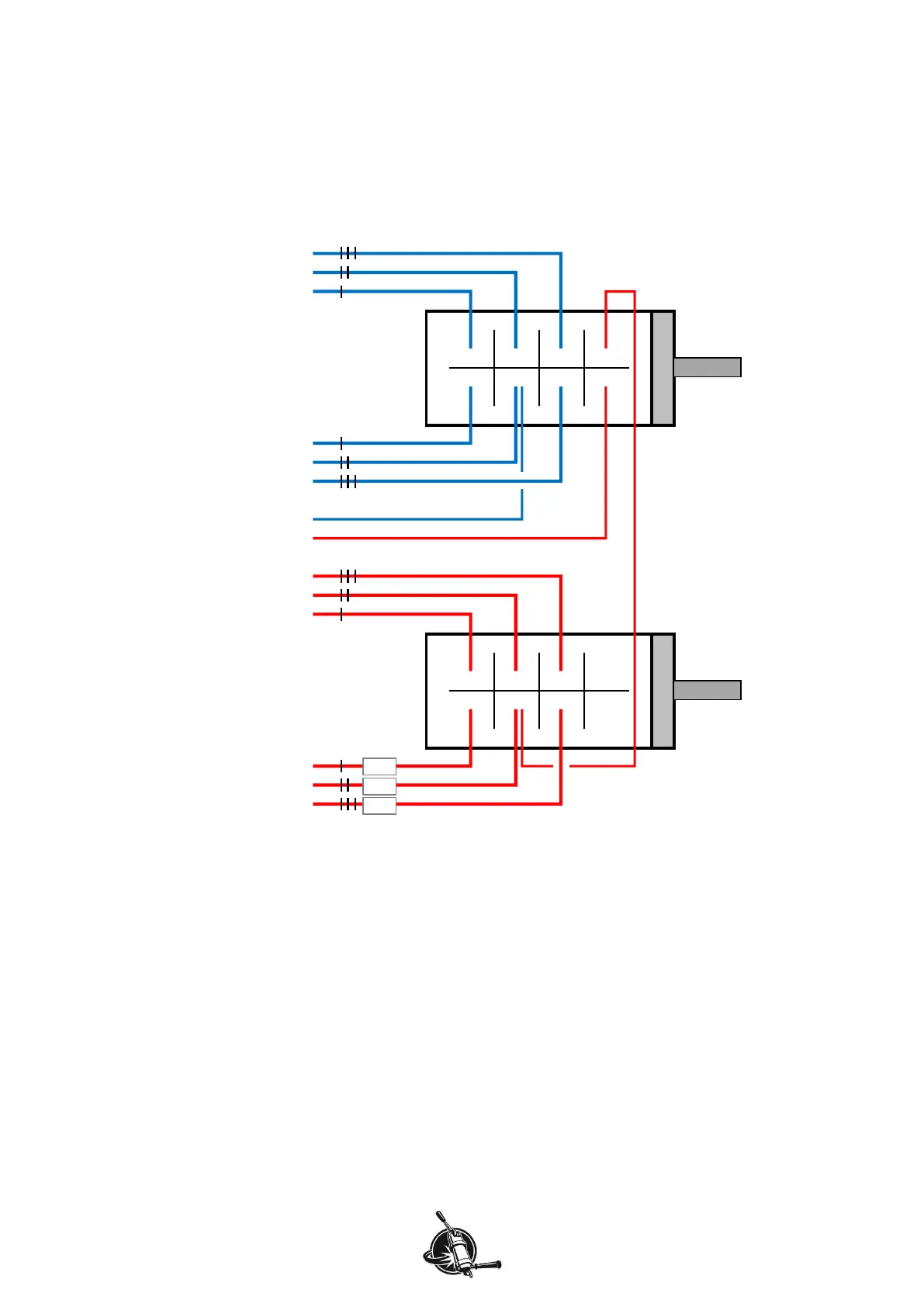

Figure T 5. The 2x 4-way switch used in Mirages where all 3 spirals of the heating element (and 3
SSR’s) are in use. In position “1” connections are made between 1 and 11, 2 and 12, etc. In position
“2” connections are made between 01 and 21, 02 and 22, etc. as well.
4
11
12
13
14
grey connector block
connections are made in
position 1 and position 2
1
2
3
heating element
brown connector block
solid state relays
connections are made in
position 2 only
21
grey connector block
23
24
01
02
03
04
22
16A
16A
16A
