TECHNICAL INFORMATION
Mirage technical manual page 52 of 65
Triplette connector block: 3-phase or 1-phase
The set-up with the 4x 3-way switch makes it possible to establish 3 completely separate circuits
within the machine and, in combination with a large connection block, allows for easier switching to
"single phase" power when necessary. Figure T 6a and b show the difference between the 3-phase
and 1-phase layout on the grey connector block.

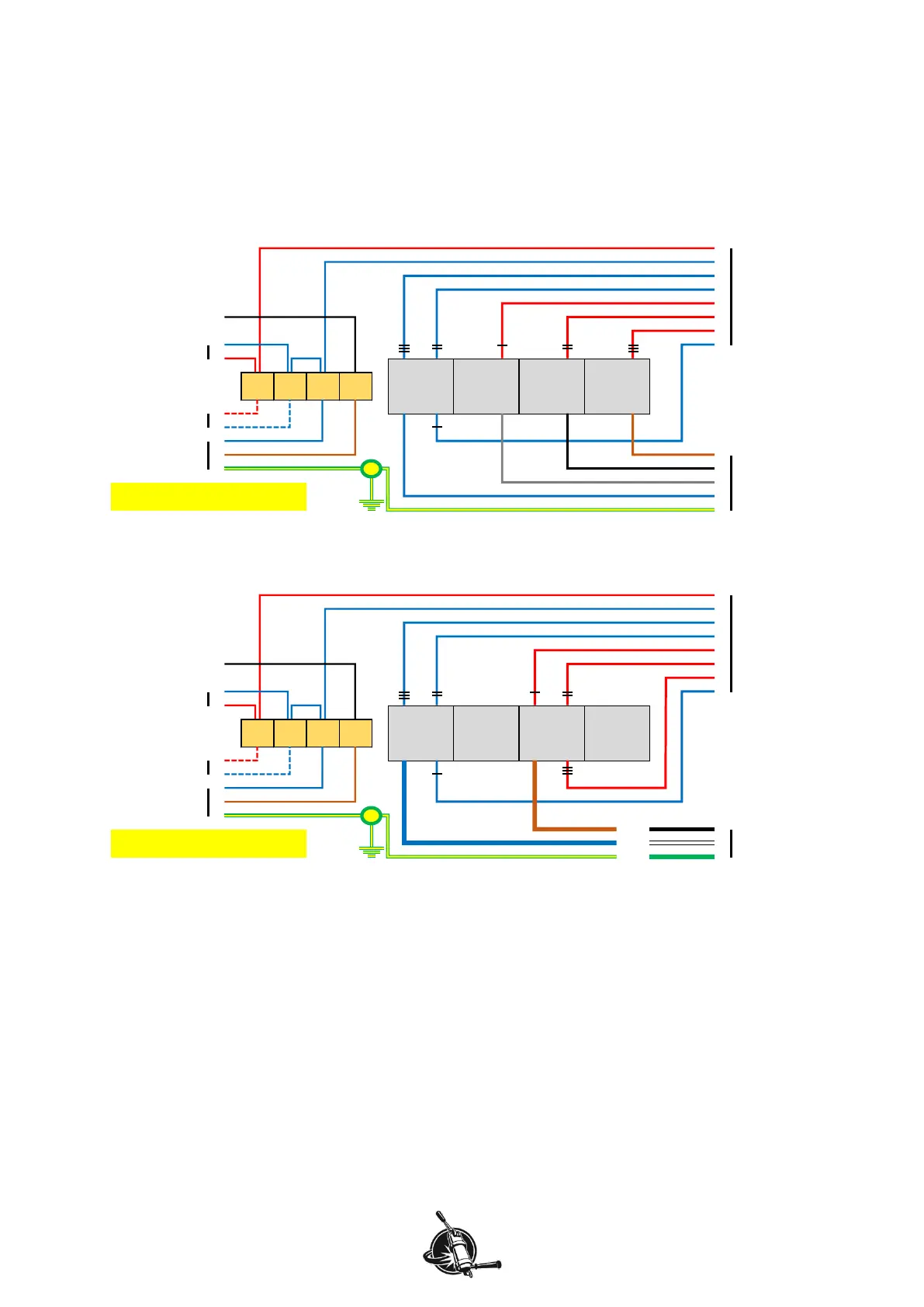

Figure T 6a. Showing the connections made on the brown and grey connector blocks when the
machine is wired to triple phase 230VAC power mains.
Figure T 6b. Showing the connections made on the brown and grey connector blocks when the
machine is wired for single phase power mains. In machines for most countries the mains cable is
brown (phase), blue (neutral) and green/yellow (earth). Also shown is the USA/Canadian mains cable
(split phase: 2-phase 115VAC with 180 degrees phase shift. Black is phase, white is counter-phase,
green is earth.).
to external pump
to air switch
power to Gicar
controller
pump from Gicar
mains switch
power mains
3 phases 230VAC
3
4
N
12
P1
P2
P3
5
6
7
8
9
10
11
1
2
mains switch
pump from Gicar
power to Gicar
controller
1
2
3
4
5
N
6
to air switch
to external pump
1 phase 230VAC
or:
7
8
9
P
10
power mains
USA & Canada
11
12
