PROBLEM SOLVING
Mirage technical manual page 64 of 65
Heating element seal

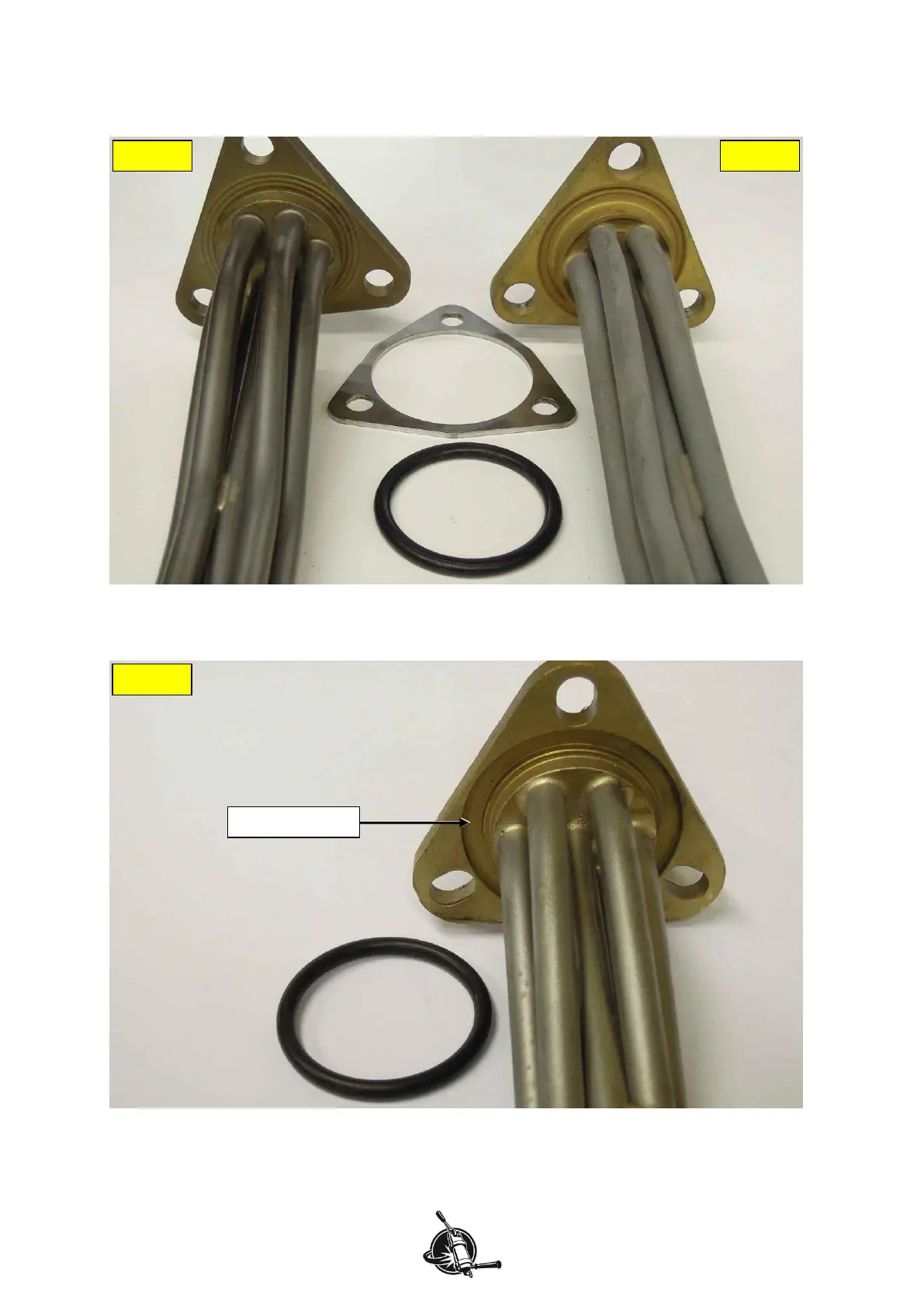

Figure P 9. Standard element flanges by Iberital and Backer can be sealed with either a Teflon ring
only (see Figure P 7) or with the shown EPDM O-ring (42x4.5mm) with complementary 2mm thick
spacer.
Figure P 10. Custom element flange by TRIAS must be sealed with EPDM O-ring (42x4.5mm) only as
the flange has an integrated O-ring chamber. The TRIAS flange will NOT properly seal with a Teflon
ring.
