Kees van der Westen Mirage - Heating Element Sealing Methods

PROBLEM SOLVING
Mirage technical manual page 63 of 65

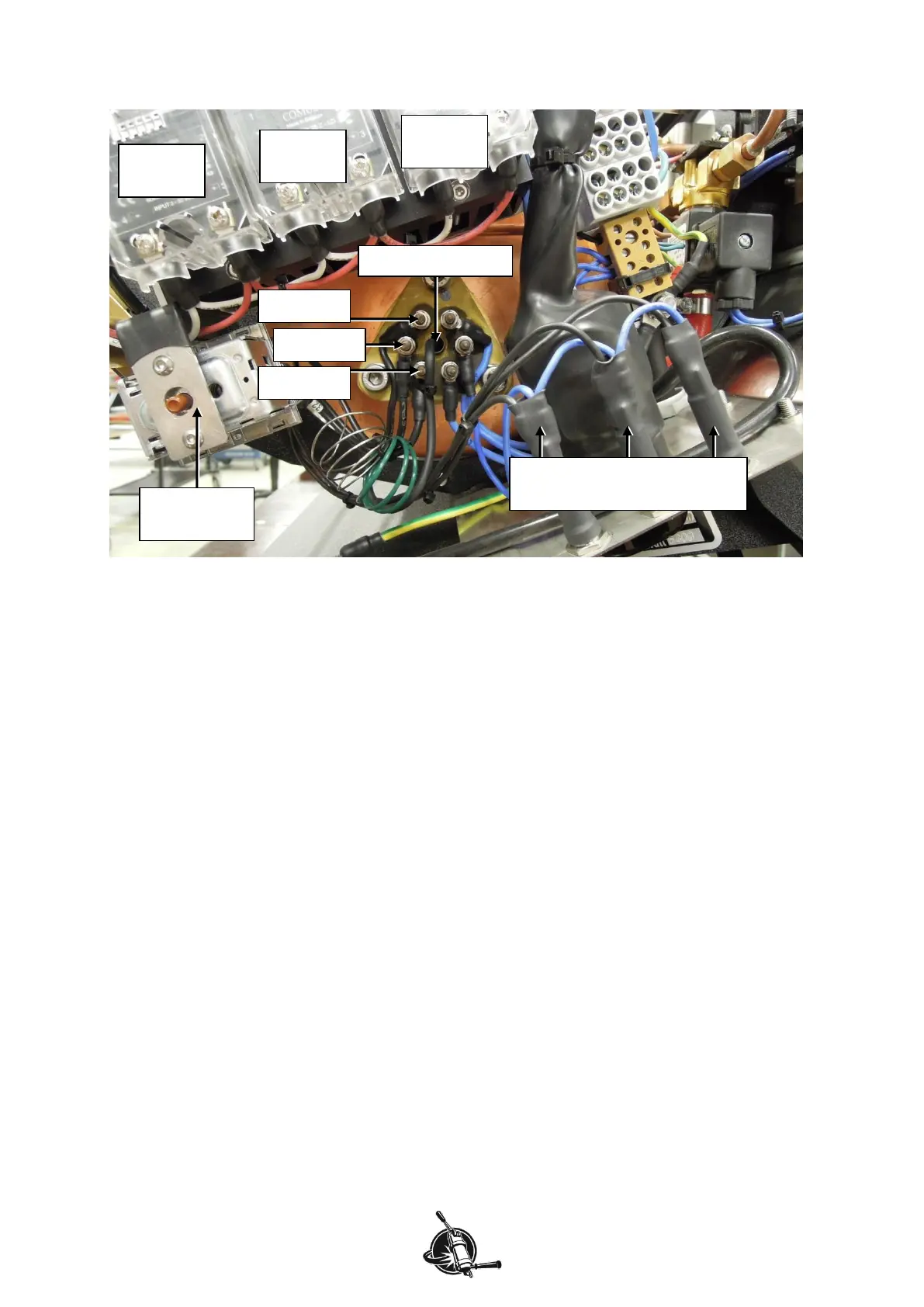

Figure P 8. Showing the heating element of a 3-phase (or single-phase high power) machine with the
element cover removed. Each heating spiral is connected to an individual circuit or phase (left
connectors), the neutral connectors (right) are bridged on the large grey connector block. The
temperature sensor of the overheat safety switch is inserted in a tube in the centre of the heating
element flange.
phase 1
phase 2
phase 3
temperature probe
1:lower 2:middle 3:upper
element indicator lights
SSR
circuit 1
overheat
safety switch
SSR
circuit 2
SSR
circuit 3
