12
8. Replace the valve in the machine and remount the end cap on the end of the handle (if
you have any questions on the preceding steps, please contact our service
department).
SEATED CHEST PRESS, LATERAL SHOULDER RAISE, MILITARY PRESS,
TRICEP, AND SEATED BUTTERFLY
NOTE: Machines shipped before October, 1985 have nuts and bolts holding the valves in
place. Later machines use only flat head screws for easier access to the valves. The
procedure described here applies specifically to the older machines but the same general
procedure also applies to the new machines.
TOOLS REQUIRED: 5/16, 3/8, 7/16 open-end wrenches, screwdriver

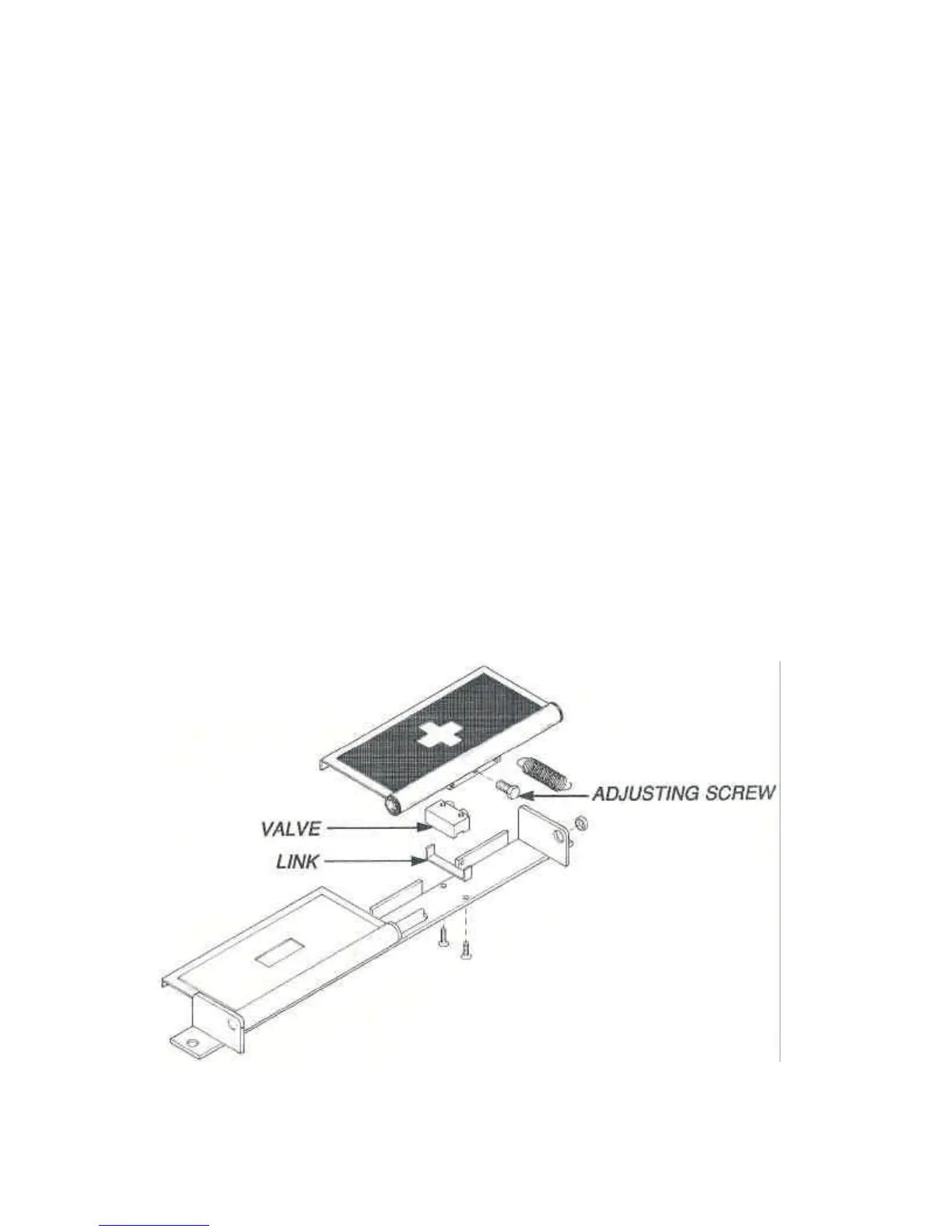

1. Tilt the machine back and lay it down so that the pedal assembly is easily accessible.
NOTICE: REST THE MACHINE ON FRAME MEMBERS ONLY. TO PROTECT
AIR HOSES AND FITTINGS.
