INSTALLATION INSTRUCTIONS
TRIPLE TRAINER
Remove the bolts that fasten the Triple Trainer to the shipping pallet
using a 3/8 in. Socket and Ratchet.
HEAVY EQUIPMENT: The Floor Mount Triple Trainer weighs 345 lbs
(156 kg). Help is required when handling the Triple Trainer to prevent
potential muscle strain and/or back injury.
CRUSH HAZARD: Keep feet clear when sliding the Triple Trainer
off the pallet.
IMPORTANT: Ensure that the mount area has been planned according
to the training space required (refer to the “Training Space” section,
page 4).
Qty Description Keiser Part Number
Qty Description Keiser Part Number
3Functional Trainer 3020XX
1
9eChip 990812
2
1Floor Mount Plate 301894
1
3Wedge Anchor (3/8 x 3-3/4) 305430
3
1Operation Manual 305522
3
1Acrylic Adhesive 305429
2
1Loctite
®
242 Threadlocker 105550
4
1Airline Manifold Assembly -
5
1Plug 8375
6
1Tube Insert, 1/8 in. (3.175 mm) 8053
7
13/8Cx1/4M Connector 8075
8
13/8Cx1/8M Connector 8078
9
3Male Quick-disconnect (QD) 110897
10
1Tube, 69 in. (1,753 mm) with QD -
11
123/8 SS Washer 9355
12
12HHCS 3/8-16x3/4 ZP Screw 9200
13
6CRPHMS 1/4-20x3/8 ZP Screw 9267
14
3Triple Trainer Bracket 301805
15
1
1 2 3 4
8765
9 10 11
12 13 1514
2
3
PARTS LIST
UNPACKING
The Floor Mount Plate Kit is contained in a packet with the Functional Trainers. Check for any damage or missing parts. If parts
are damaged or missing, contact your local dealer, distributor, or Keiser Customer Support (see front cover for contact information).
Note to Installer: Please provide the customer with the Operation Manual.
TRIPLE TRAINER
FLOOR MOUNT PLATE KIT (PART NUMBER 3031X )
Grip at
Elbow Joint
Slide Triple
Trainer to
planned
mount area
NOTE:
Functional
Trainers may
be bolted to
the pallet
individually

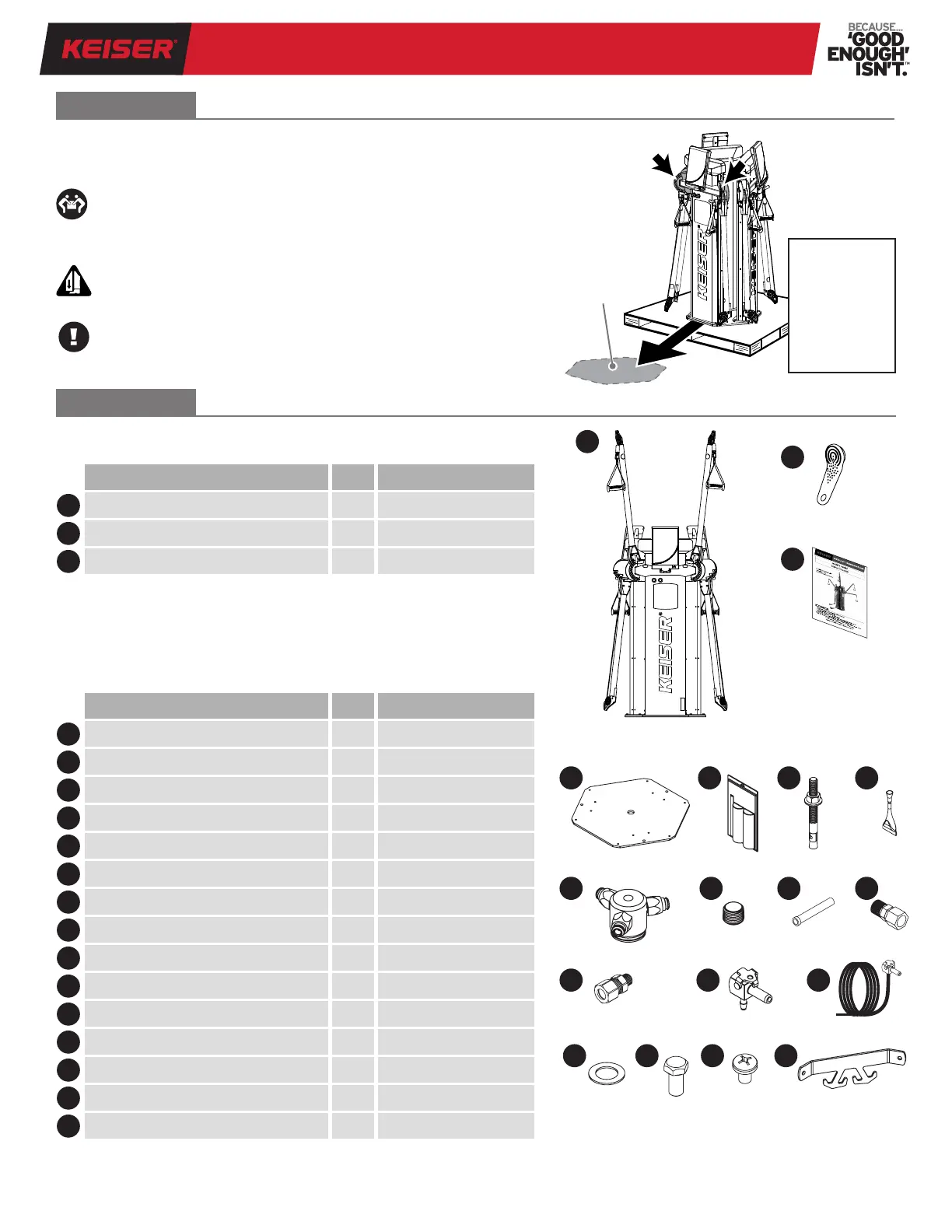

Figure 4. Unpacking the Triple Trainer
Figure 5. Triple Trainer Parts
Figure 6. Floor Mount Plate Kit Items
