INSTALLATION INSTRUCTIONS
TRIPLE TRAINER
1
Drill:
• With the pre-assembled Triple Trainer
or Floor Mount Plate at the desired
area, locate the three, non-threaded
holes of the Floor Mount Plate. These
holes will serve as the drill guide.
• Use a Hammer Drill with 3/8 inch
diameter Masonry Bit, drill 4 1/4 inch
(108 mm) deep into the concrete.
• NOTE: Drill depth will be 1/2 inch
(13 mm) deeper than the anchor to
ensure proper depth.
Prepare drill holes for adhesive:
• Clean drill holes with a Wire Tube
Brush.
• Vacuum remaining dust/debris.
It is recommended that hole alignment be
tested to prevent costly rework. Ensure
that all three Floor Mount Plate holes
align with the drill holes; Wedge Anchors
should be able to sit vertical within the
drill holes.
Acrylic adhesive application:
IMPORTANT: Step 4 must be performed
immediately after the Adhesive is applied.
The Acrylic Adhesive is high-strength and
fast-curing with very short working time.
Carefully read and follow the manufacturer’s
instructions before application.
• Insert the Nozzle to the bottom of
the hole and ll to 1/2 the depth of
the hole.

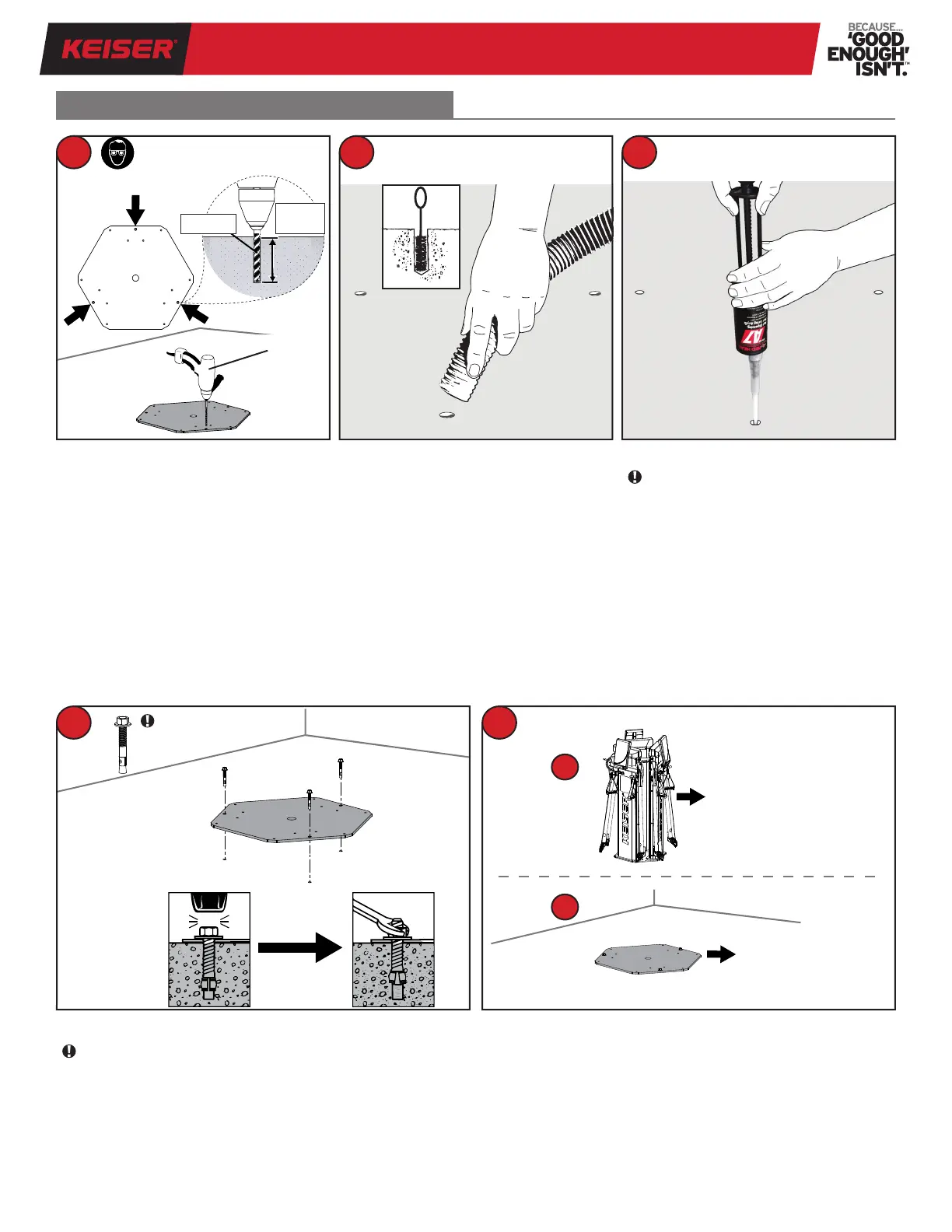

STEP-BY-STEP INSTALLATION GUIDE
3/8 in.
4 1/4 in.
(108 mm)
Floor Mount
Plate
Clean Drill Holes
with Wire Tube Brush
Adhesive
Application
Vacuum
Dust/Debris
32
CAUTION: WEAR
SAFETY GLASSES
Final installation:
A. For pre-assembled Triple Trainer units, proceed to “AIR
SYSTEM SETUP & FINAL INSTALLATION” page 10, step 9.
B. For Triple Trainer units that require assembly, continue to
step 6 on the next page.
Install Floor Mount Plate to oor:
IMPORTANT: Set nut ush with the end of the Wedge Anchor
to protect threads.
• Align Floor Mount Plate holes with the drill holes
• Drive the Wedge Anchor until the washer is ush with the
Floor Mount Plate surface using a Hammer.
• Expand the Edge Anchor by tightening the nut 3 - 5 turns
past hand-tight using a 9/16 inch Socket and Ratchet.
4 5
Continue to
“AIR SYSTEM
SETUP & FINAL
INSTALLATION”
page 10, step 9
Continue to
page 9, step 6
B
A
Hammer Drill
Nut ush with end
of Wedge Anchor
