09
INSTALLATION INSTRUCTIONS
TRIPLE TRAINER
TWO-PERSON
PROCEDURE
6

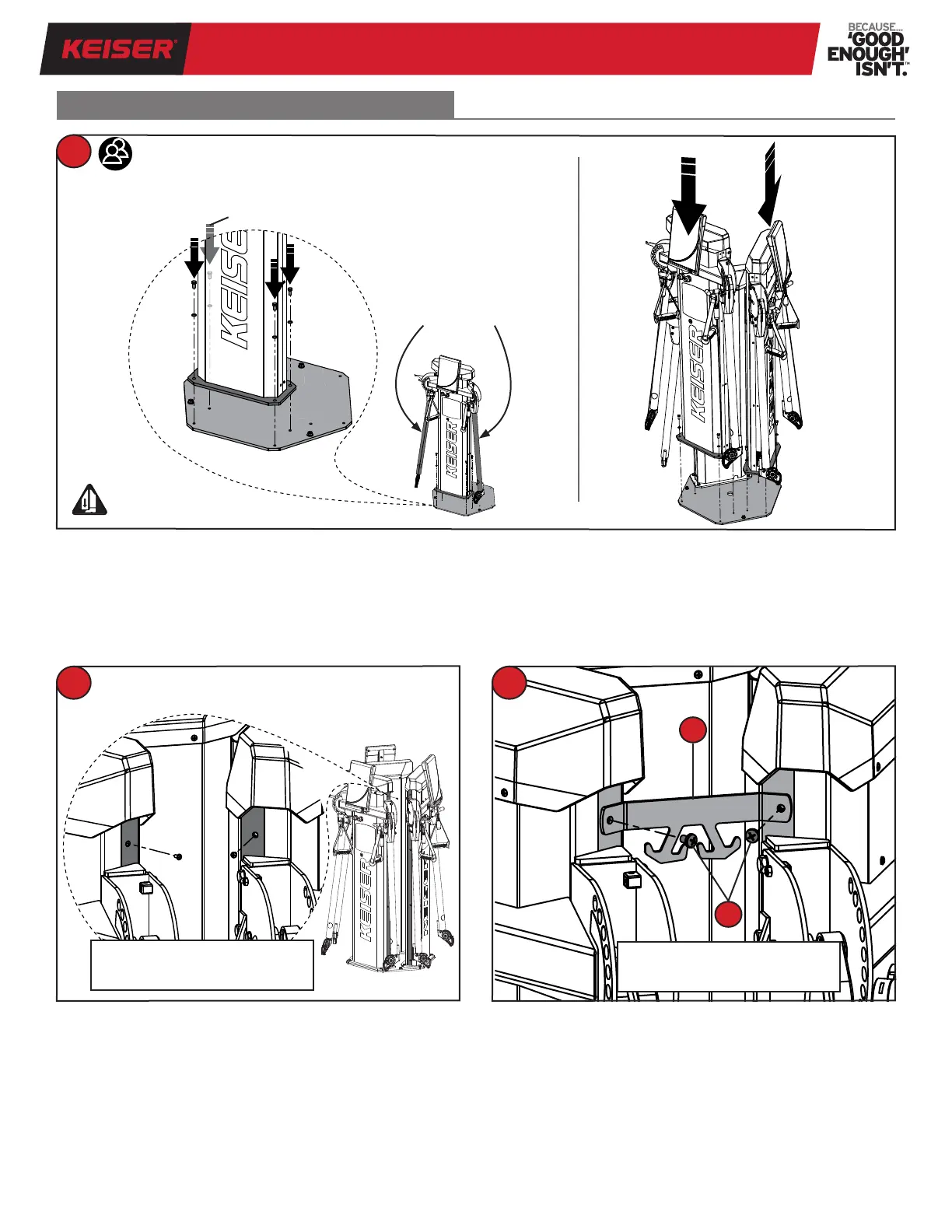

Triple Trainer unit installation:
• With your helper, carefully
place one of the Functional Trainer units onto the Floor Mount Plate, align mount holes as shown.
• Start Screw with Washer into a threaded hole (qty 4).
• Fasten Screws using a 9/16 inch Socket and Ratchet.
• Torque Screws to 25–30 ft-lbs (33.90–40.68 Nm) using a Torque Wrench and 9/16 inch Socket.
• Repeat steps above for the remaining two units.
3/8- 16x3/4 in.
Screw with Washer
Lift here
x4
(rear)
CRUSH HAZARD
KEEP FEET CLEAR
7
Remove x2
1/4-20x1/4 in. Phillips Screws
Bracket installation preparation:
• Remove the top two 1/4-20x1/4 inch Phillips Screws
along the sides of the Functional Trainer units using a
#3 Phillips Screwdriver.
NOTE: The two 1/4-20x1/4 inch Phillips Screws may be dis-
carded. Longer 1/4-20x3/8 inch Phillips Screws will replace
them in the following step.
Bracket installation:
A. Position the Bracket, hooks pointing down, and align
mount holes as shown.
B. Attach the Bracket with two 1/4-20x3/8 inch Phillips
Screws using a #3 Phillips Screwdriver until tight.
• Repeat Steps 7 and 8 for the remaining two Brackets.
Install x2
1/4-20x3/8 in. Phillips Screws
B
A
8
STEP-BY-STEP INSTALLATION GUIDE
To Next Page
