M5i | M5 STRIDER ELLIPTICAL
11

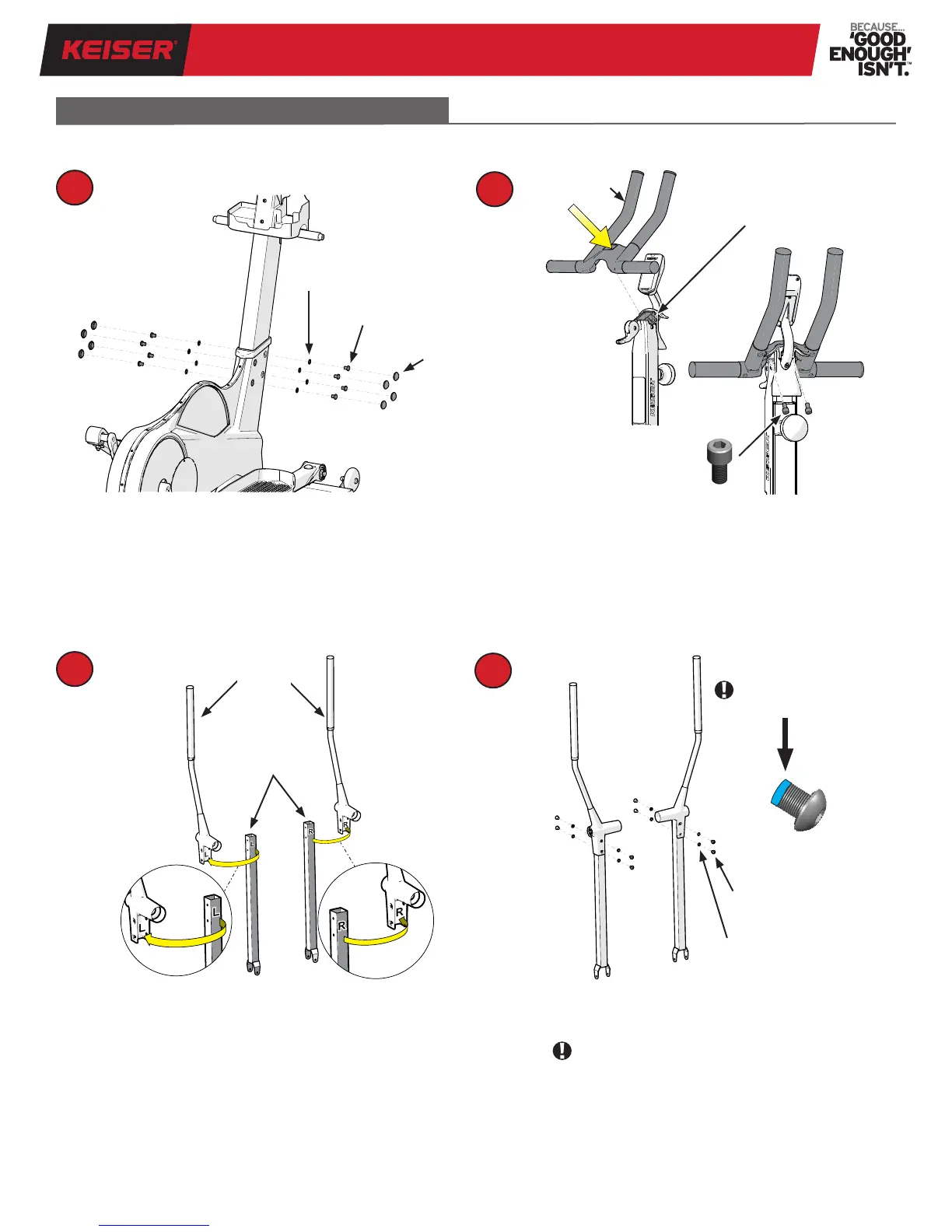

ASSEMBLY 3 OF 3: FINAL ASSEMBLY
1
2
3
1. Secure the Top Frame to the Main Frame with eight
Hex Head Cap Screws and Small Washers (Items 14
and 12) using a 13 mm Socket and Ratchet. Torque:
23 Nm (17 ft-lbs). Insert Rubber Bolt Covers (Item 9)
into the holes of the Main Frame.
2. Handlebar Installation: Position the Handlebar onto
the Handlebar Post. Align the screw holes. Start the
two Socket Head Cap Screws (Item 16) by hand. Press
down on the center of the Handlebar to properly seat
the Handlebar onto the Handlebar Post. Use a 6 mm
Allen Wrench to evenly tighten the screws.
3. Handles and Hanger Pedal Mounts Assembly:
Observe “L” (Left) and “R” (Right) markings. Place
Hanger Pedal Mount into the bracket of the Handle
so that “L” markings face each other and the “R”
markings face each other. NOTE: The Handles and
Hanger Pedal Mounts are positioned correctly when
the “L” and “R” markings are not visible.
4. Secure the Handles to the Hanger Pedal Mounts:
a. Place a Small Washer (Item 12) on a Socket
Button Head Cap Screw (Item 10).
b. Apply a few drops of Loctite
®
242 to the
leading threads of the Screw, then start the
Screw into the threaded hole, hand-tight.
c. Repeat the steps above for a total of four Screws
with Washers per Left and Right Handle/Hanger.
d. Tighten all Screws (four per Handle/Hanger) in
an “X” pattern using a 5 mm Allen Wrench.
4
Small
Washers
Handlebar
Handlebar Post
Socket Head
Cap Screws
Rubber
Bolt Covers
Hex Head
Cap Screws
Socket Button Head
Cap Screw
Small Washer
Pedal
Mount
Hangers
Apply Loctite
®
242
to leading threads
Handles
