Keiser M SERIES Assembly And Operation Manual

M5i | M5 STRIDER ELLIPTICAL
09

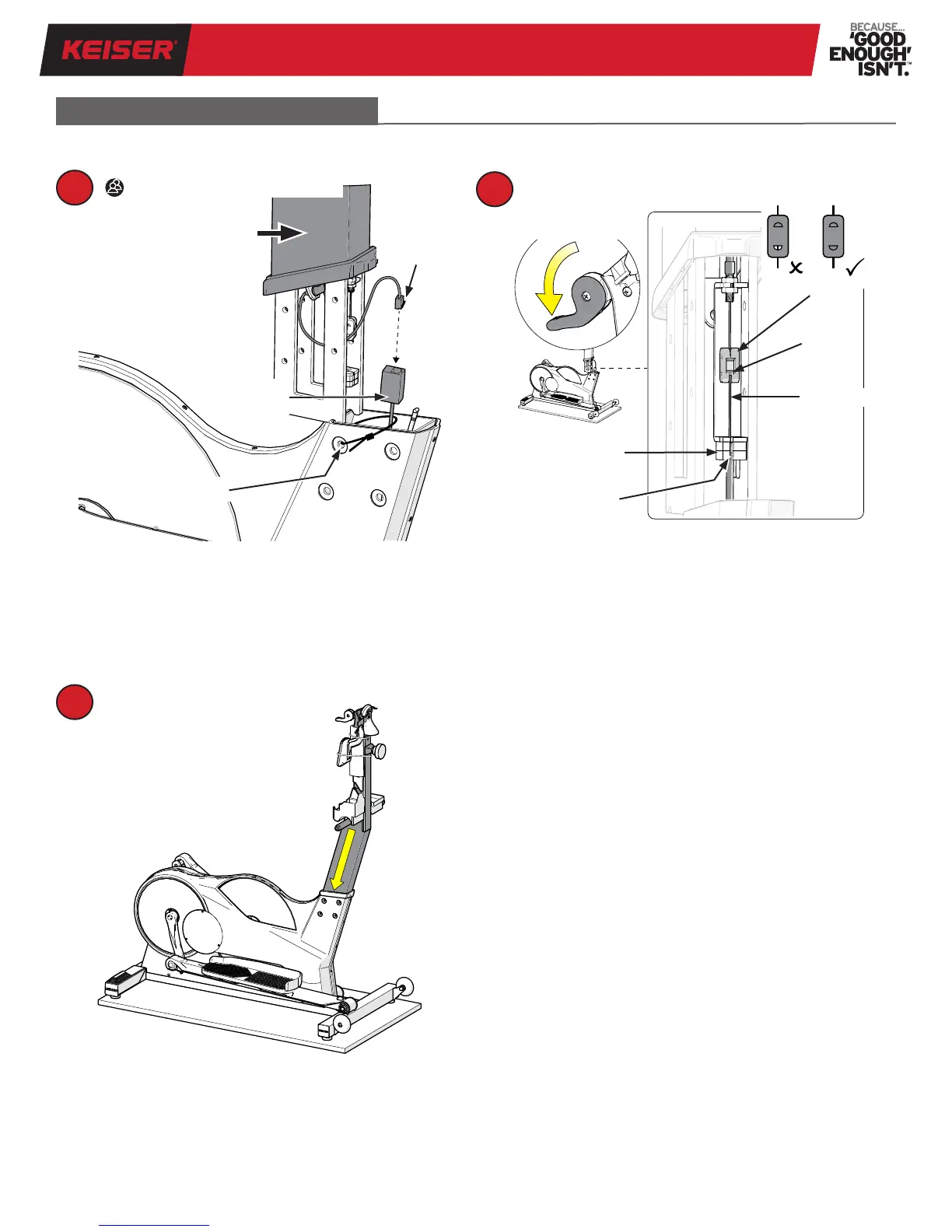

ASSEMBLY 1 OF 3: TOP FRAME
1
2
3
1. Connect the Computer Cable from the Top Frame to
the Coupler of the Main Frame. Once connected, cut
and remove the Cable Tie.
2. Set the Resistance Lever to the down position.
Insert the Barrel of the Shifter Cable into Cable Link
and snap into position. Insert the Metal Sleeve of
the Shifter Cable into the Cable Bracket as shown.
Check to ensure that the Barrel is visible through
the side hole of the Cable Link.
3. Insert the Top Frame into the Main Frame. Be careful
not to pinch cables. DO NOT INSTALL BOLTS. The
Bolts will be installed after the Computer installation
has been tested.
Have your helper set
and hold the Top Frame
for Steps 1 - 3
TWO-PERSON PROCEDURE
Resistance Lever
Cable Link
Shifter Cable
Barrel
Cable Bracket
Computer
Cable
Cable Tie
Metal Sleeve
Coupler
