FINAL ASSEMBLY

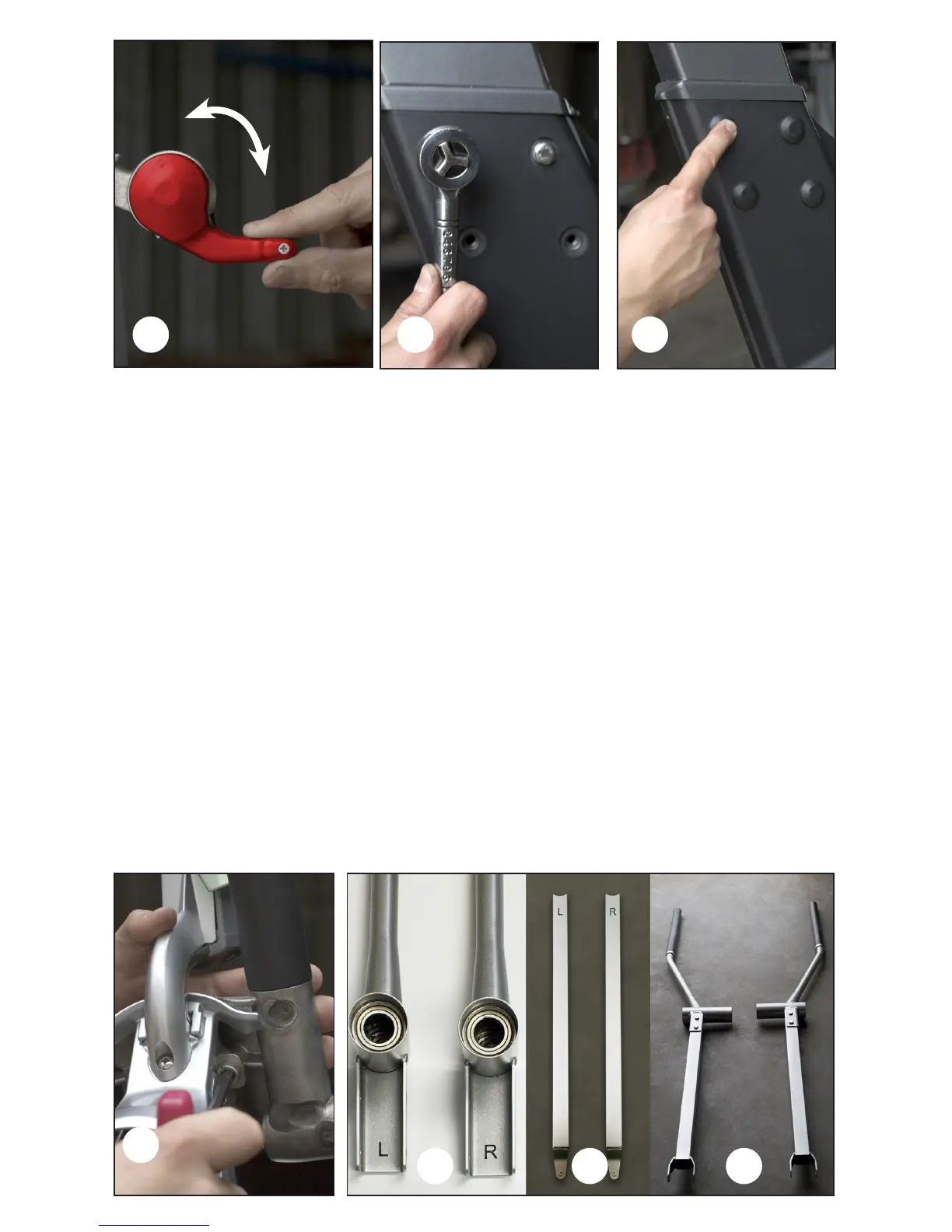

Step 1: Obtain the Handlebar Assembly (A). Tilt the Handlebar Assembly slightly to place
the two Socket Head Cap Screws (D3) into the mounting holes. Once each screw has been
started, place the palm of one hand on the center of the Handlebar Assembly pressing rmly and
evenly onto the Handlebar Post (Fig. 13). Use the 6mm Allen wrench to evenly tighten the screws.
Step 2: Obtain the Handles (B) and Hanger-Pedal Mounts (F). The Handles and Hanger-Pedal Mounts
are stamped either L or R (Fig. 14 & 15). Lay them on a at horizontal surface. Orient the Hanger-
Pedal Mounts so that the L or R stamps face the L or R stamps inside the bracket of the Han-
dles (Fig. 16). If the Handles and Hanger-Pedal Mounts are assembled correctly, the L and R should
not be visible. Assemble handlebar to hanger pedal mount using 8 of PN 9515 with the 5mm Allen
wrench, tighten 4 screws evenly. After all screws are tight, retighten screws to ensure they did not
loosen. Follow the instructions in the supplied User Manual to assemble the remaining components.
Step 3: Using the ratchet with 13mm socket and 13mm wrench, one Hex Head Cap Screw (D4)
and one Large Washer (C5), secure the Handle/Hanger Assembly to the Top Frame. Place the
Assembly on the Top Frame with the heads of the screws (installed in Step 2) pointing towards the
user of the machine, and torque the screw to 23 Nm (17 ft-lbs). Insert the Aluminum Cap (E) into the
Handle (Fig. 17, next page), being careful not to damage the attached O-Ring. Repeat for the other
Handle/Hanger Assembly.
Step 4: Use the ratchet with 13mm socket and 13mm wrench, one Hex Head Cap Screw (C2),
two Small Washers (C4) and one Elastic Lock Nut (C3) to secure one Hanger to one Pedal Mount (Fig.
18, next page). Place one washer under the screw head and one before the nut. Torque the screw to
23 Nm (17 ft-lbs). Repeat for the other side.
