Keithley 2182 Quick Reference Guide

4 Quick Reference Guide
Model 2107 input cable

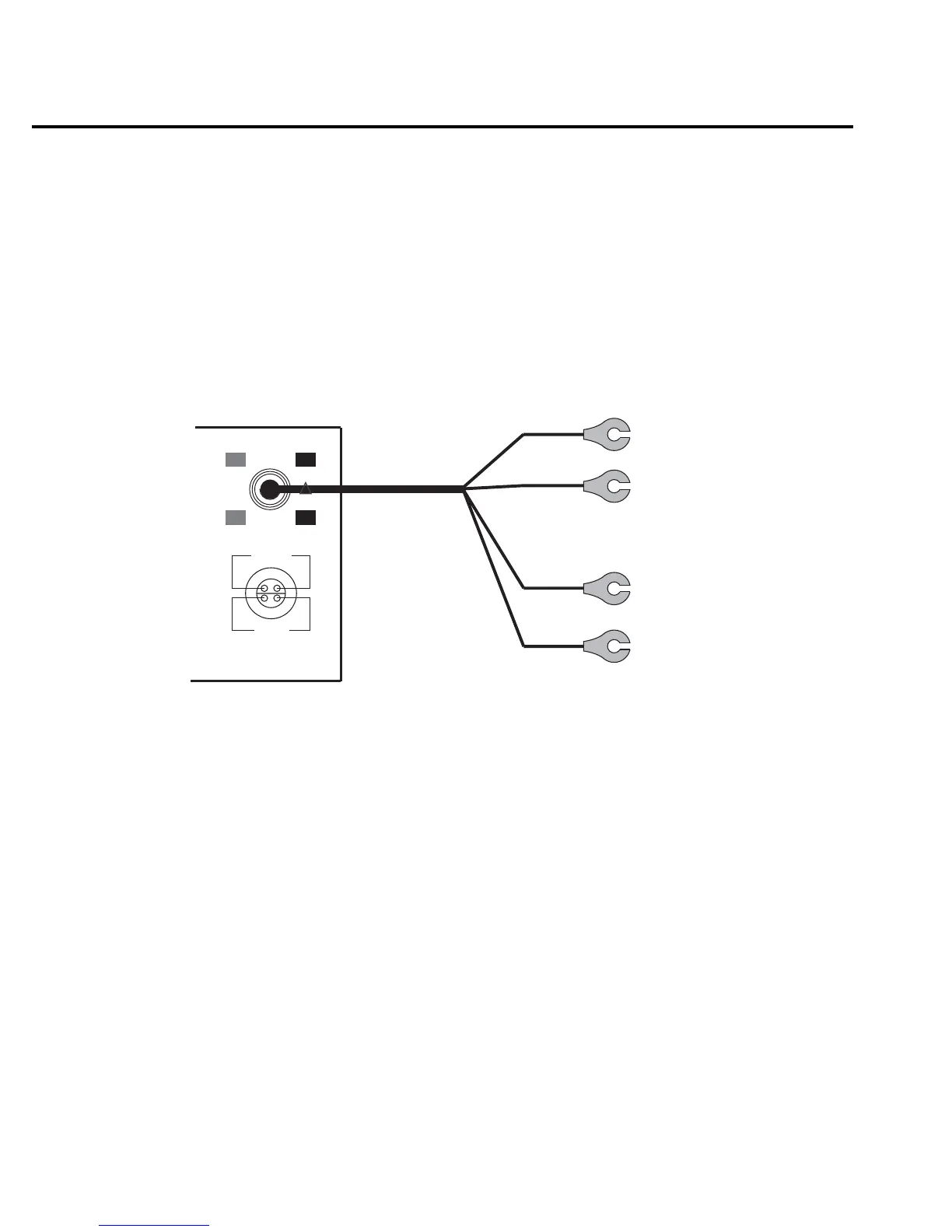

Figure 3 shows the terminal designations of the supplied Model 2107 input cable. This
cable can be used to make voltage measurements and temperature measurements that use
an external simulated reference junction. The red and black wires connect HI and LO of
Channel 1, and the green and white wires connect HI and LO of Channel 2.
Model
2107
Input
Cable
Red HI
Channel 1
Channel 2
Black LO
Green HI
White LO
2182
!
CHANNEL 1
HI
LO
CHANNEL 2
HI
LO
120V MAX
12V MAX
CAT I
350V PEAK ANY
TERMINAL TO CHASSIS
Figure 3
Model 2107 input cable
