Keithley 2182 Quick Reference Guide

Quick Reference Guide 7
Temperature connections

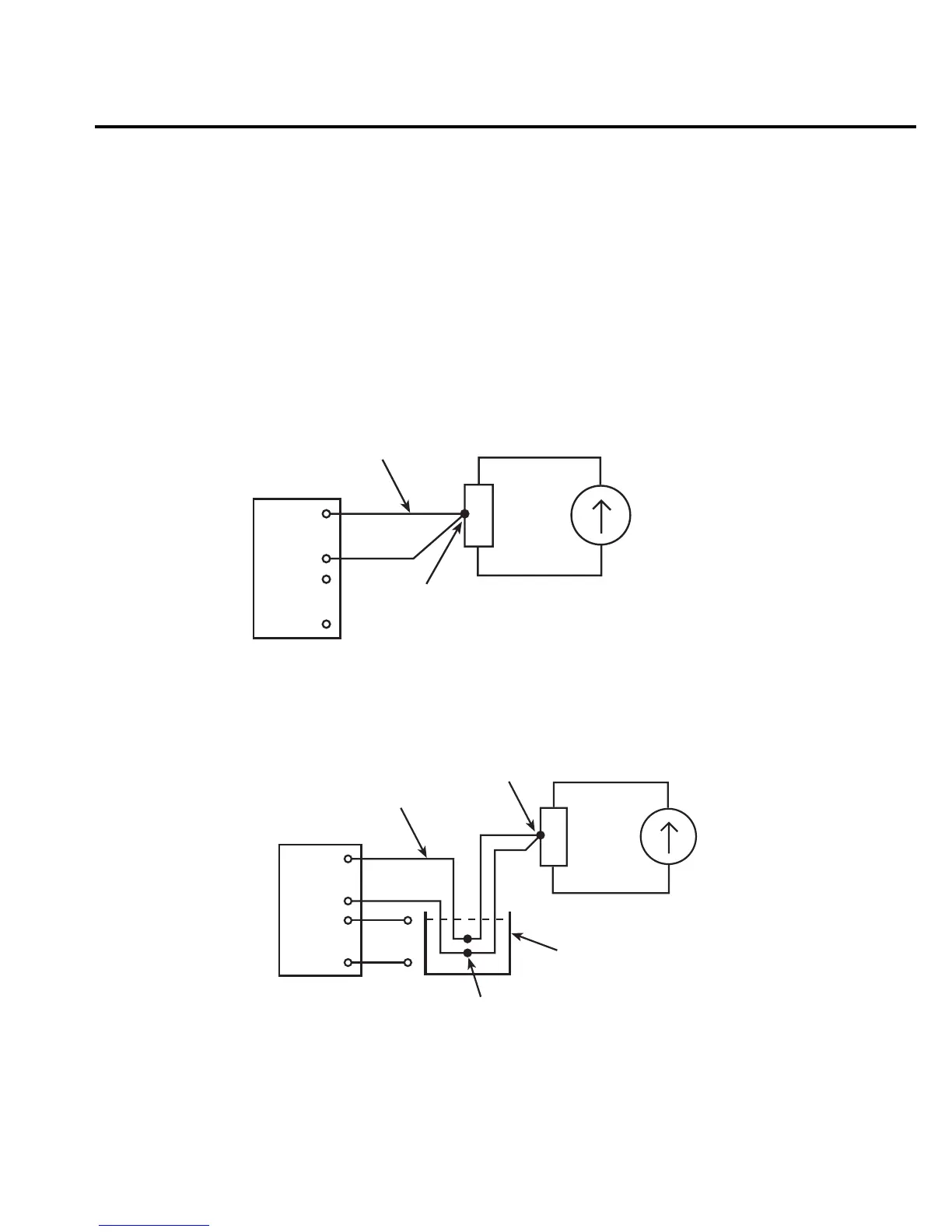

Figure 6 shows connections for temperature measurements using the internal reference
junction, while Figure 7 shows connections that use an ice bath as a simulated reference
junction. Note that the connection points for the input cable and thermocouple wires are
immersed in the ice bath.
CH 1
CH 2
HI
LO
HI
LO
DUT
Test circuit
Thermocouple
Thermocouple wire
soldered directly to
LEMO connector
(one of two)
TEMP1
Red
Black
2182
Figure 6
Internal reference temperature connections
CH 1
CH 2
HI
LO
HI
LO
DUT
Test circuit
Thermocouple
2107
Input cable
TEMP1
Red
Black
Green
White
Ice bath
Cable-to-thermocouple
wire connection (one
of two)
2182
Figure 7
External reference temperature connections
