Section 8: Theory of operation Series 3700A System Switch/Multimeter Reference Manual
8-14 3700AS-901-01 Rev. D/June 2018

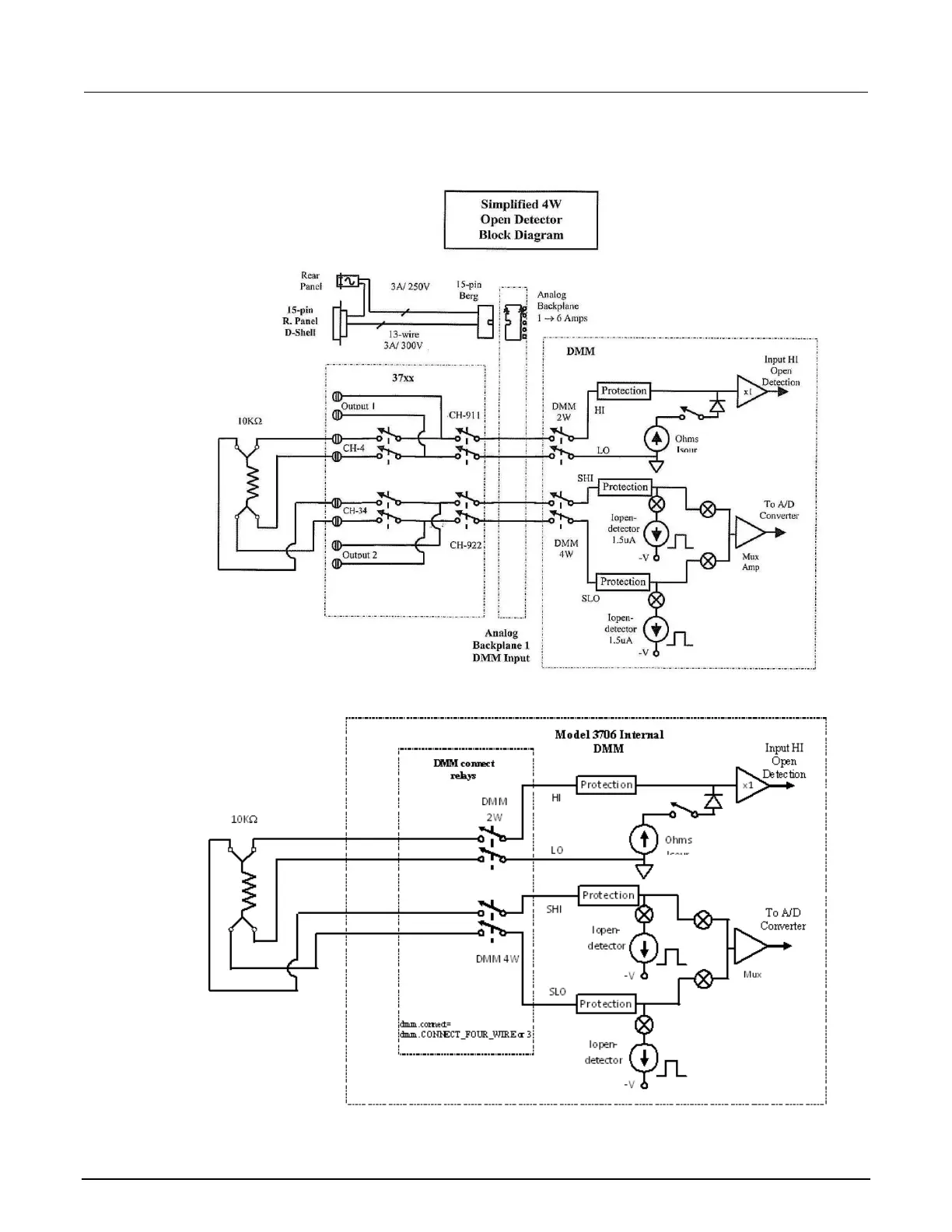

Figure 113: Simplified normal 4-wire ohm open detection schematic
Figure 114: Model 3706A Internal DMM
