Model 6485 and 6487 User’s Manual Getting Started 1-11
Model 6485 rear panel summary

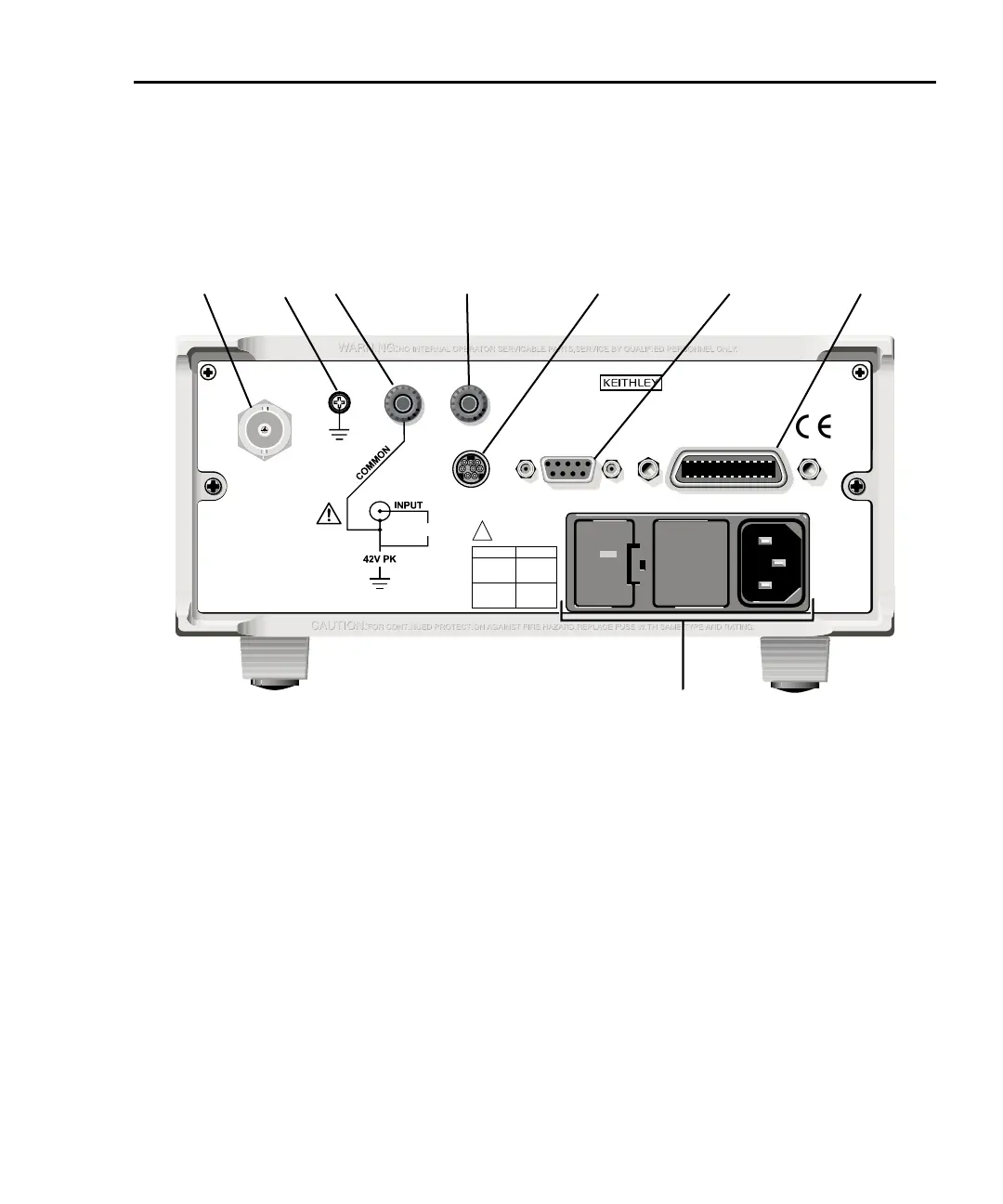

The rear panel of the Model 6485 is shown in Figure 1-2.
Figure 1-2
Model 6485 rear panel
120
FUSE LINE
630mA
LINE RATING
50, 60Hz
30 VA
T
(SB)
100 VAC
120 VAC
315mAT
(SB)
220 VAC
240 VAC
!
INPUT
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
IEEE-488
CAT I
TRIGGER LINK RS-232
MADE IN
U. S. A .
220V PK
ANALOG OUT
13
8
4
567
2
1 INPUT
This standard female BNC connector is used to connect the signal to be measured to the input of the
Model 6485. Mates to a BNC cable.
2 CHASSIS
This screw terminal is used to connect COMMON to CHASSIS ground via the ground link connector.
3 COMMON
This standard banana connector can be used as input LO or as the common for the ANALOG OUT.
Also can be used as a ground link.
4 ANALOG OUT
This standard banana connector provides a scaled, inverting output (inverting 2V full scale on all
ranges).

Keithley 6485 Specifications

General

Model	Keithley 6485
Category	Picoammeter
Input Impedance	>10^14 Ohms
Voltage Burden	<200µV
Accuracy	0.4% of reading
Voltage Source Range	Not Applicable
Voltage Source Resolution	Not Applicable
Voltage Source Accuracy	Not Applicable
Interface	IEEE-488
Power Requirements	100V to 240V AC, 50/60Hz
Dimensions	89 mm high x 214 mm wide x 369 mm deep (3.5 in x 8.4 in x 14.5 in)
