Touchscreen display overview
You can use the touchscreen display to set up the instrument
and tests. You use the keys and touch capabilities to make
selections.
To use the touchscreen, select options with your nger. You
can also use the navigation control to highlight an item, and
then press the control to select it.
The following text describes some of the most commonly
used screens. For more detail and descriptions of all the
screens, see the Model 2460 Reference Manual. For detail
about an option, select it and press the HELP key to display
a brief description of the option.

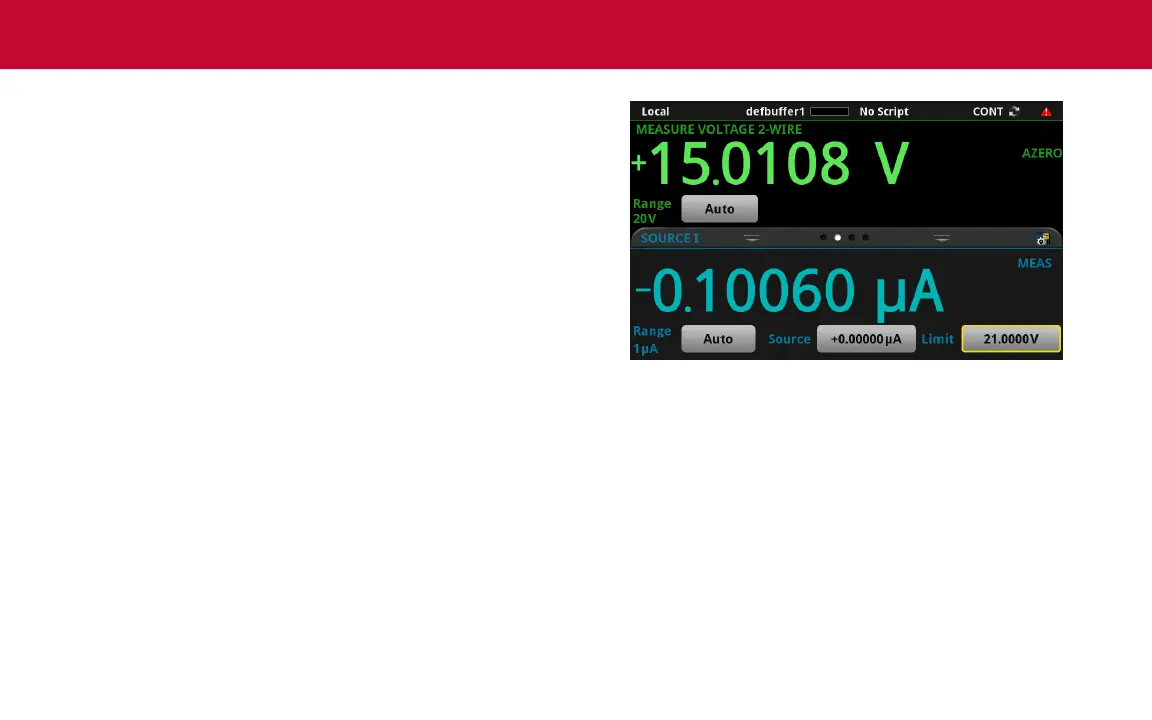

Home screen overview
The home screen is the rst screen that opens when the
instrument is powered on. You can always return to the
home screen by pressing the HOME key.
The top row on the home screen displays the status and
event indicators. You can select these options to open dialog
boxes that provide additional information about the status or
event.
The measure section of the home screen displays the
present measurement. It also displays the measure function
and allows you to select a measure range.
