Model 2460
Interactive SourceMeterĀ® Instrument User's Manual Section 7: Generating an I-
V sweep on an LED with KickStart
2460-900-01 Rev. A / September 2014 7-5
To create a new test project:
1. Launch the KickStart software. The Start Page is displayed, as shown in the following figure.

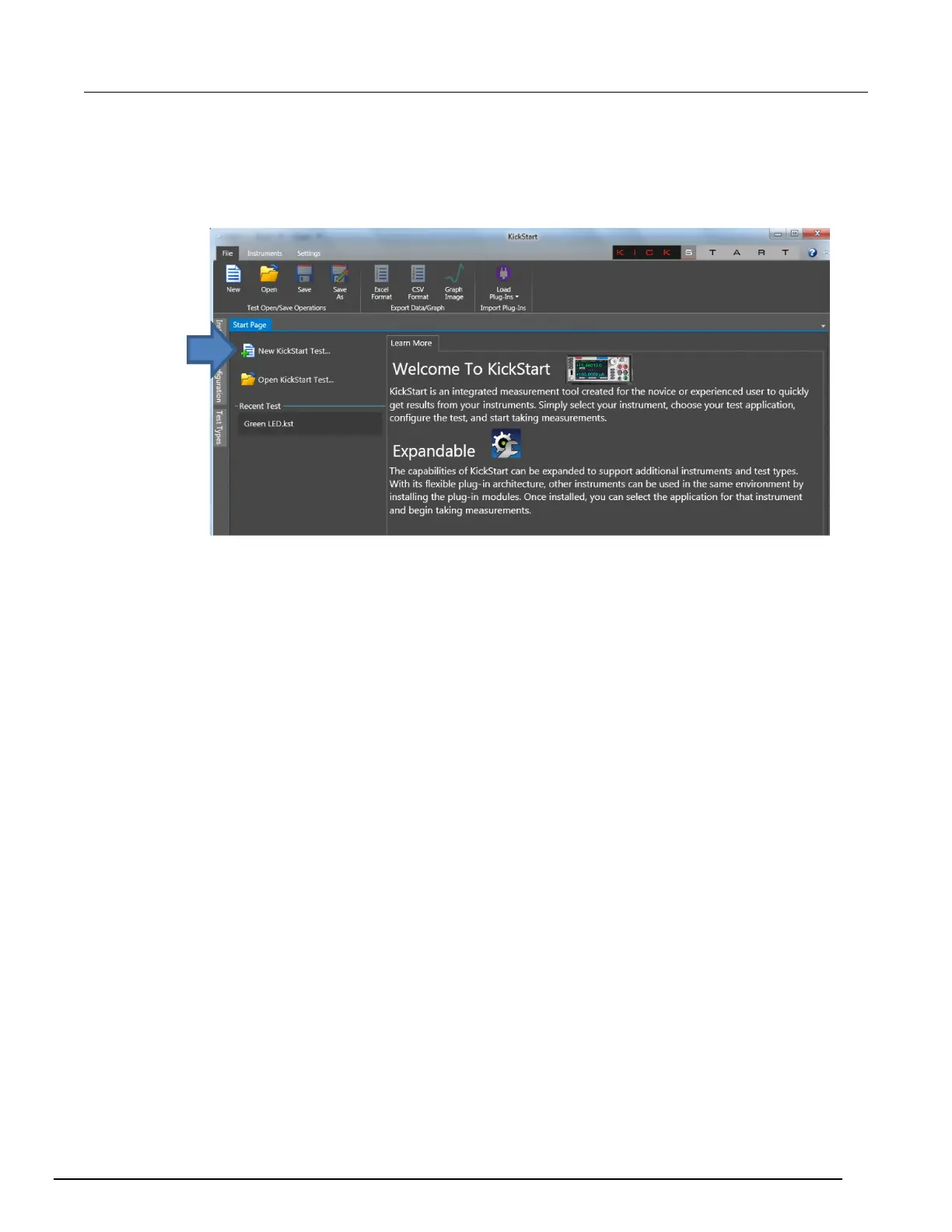

Figure 35: KickStart Startup Software Start Page
2. On the Start Page, click New KickStart Test. The Save As dialog box opens.
3. Navigate to the location where you want to save your test projects (you do not need to create a
folder; KickStart does that for you). You can also use the default location for KickStart projects,
which is C:\Users\My Documents\Keithley Instruments\KickStart.
4. Enter a name for the test and click Save. The test is saved as a .kst file in a folder with the
name of the test project.
5. Click Select Instrument in the bottom left corner of the screen. If the Model 2460 is configured
properly, it appears in the Instrument Configuration panel.
6. Right-click Model 2460:1 and select Add Instrument. Information about the connected Model
2460 automatically appears in the bottom half of the Instrument Configuration panel.
