Model 2460
Interactive SourceMeterĀ® Instrument User's Manual Section 7: Generating an I-
V sweep on an LED with KickStart
2460-900-01 Rev. A / September 2014 7-9

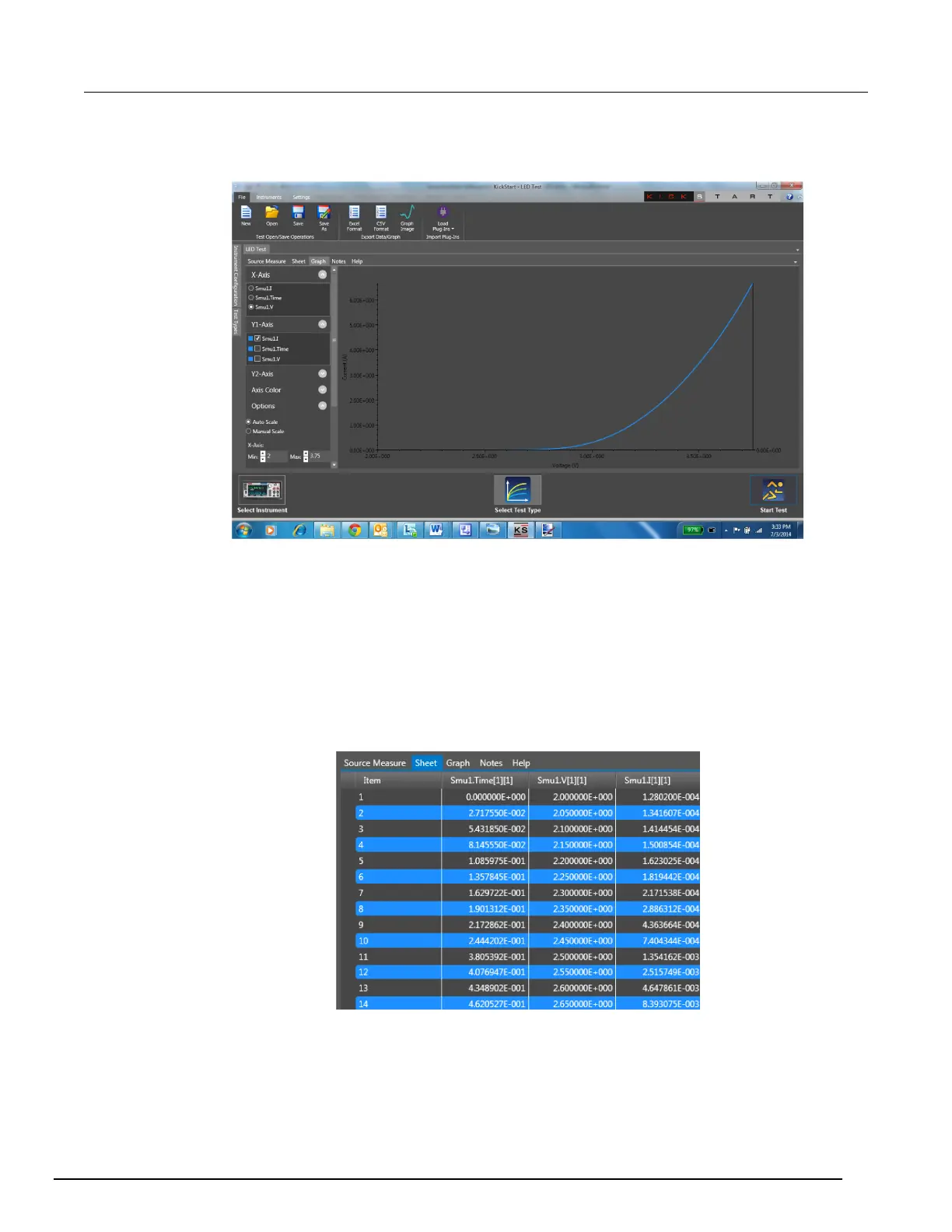

Figure 39: Results of running an I-V sweep on a high-brightness LED
To save the graph as a .png file, click Graph Image in the Export Data/Graph area of the ribbon at
the top of the screen.
View and save the test data in tabular form
You can also view the results of the test in tabular form by selecting the Sheet tab. The figure below
shows the test results on the Sheet tab.
Figure 40: Test data on the KickStart Sheet tab
To export the data as a .csv or .xls file, click Excel Format or CSV Format in the Export
Data/Graph area of the ribbon at the top of the screen.
