Interactive SourceMeter® Instrument User's Manual Section 9: Generating a high-
current pulse train
2460-900-01 Rev. A / September 2014 9-3

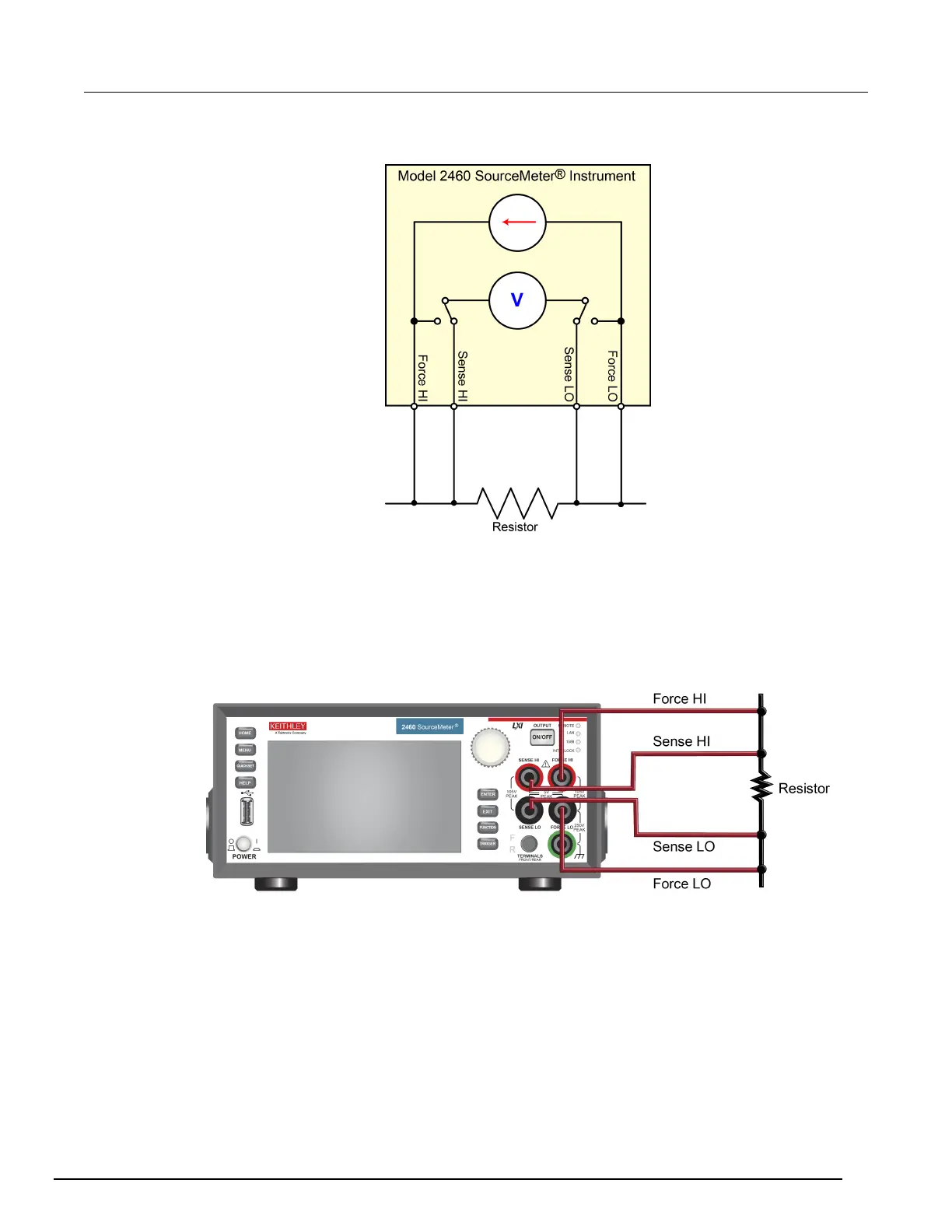

Figure 49: Model 2460 4-wire connections to a resistor
The following figures show the physical connections for the front and rear panels. The front-panel
connections are safety banana jacks; the rear-panel connection is a screw terminal.
The figure below shows the front-panel connections. You can use four insulated banana cables that
are rated to a maximum current of at least 7 A, such as two sets of the Keithley Instruments Model
8608 High-Performance Clip Lead Set (one set is included with the Model 2460).
Figure 50: Model 2460 4-wire connections to the front panel
The figure below shows the rear-panel connections. You can make these connections with either the
Model 2460-KIT Screw-Terminal Connector Kit (included with the Model 2460) or a Model 2460-BAN
Banana Test Leads/Adapter Cable with appropriate cabling.
